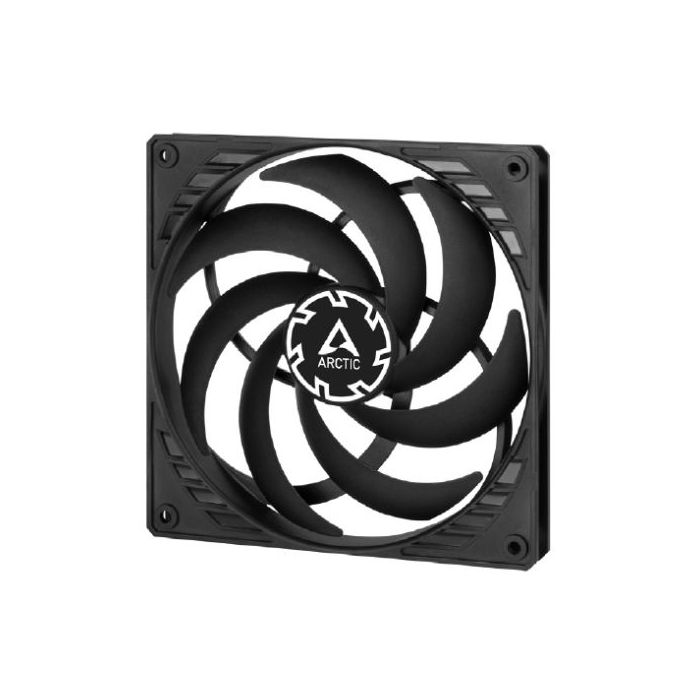

Arctic P14 14cm Pressure Optimised Slim PWM PST Fan w/ integrated Y-cable, Black, Fluid Dynamic, 150-1800 RPM
£13.99
incl. VAT
+ Free Shipping
In stock
SKU
SPTECH-CF140-ARCP14PWMPST-SLIM
Arctic P14 14cm Pressure Optimised Slim PWM PST Fan w/ integrated Y-cable, Black, Fluid Dynamic, 150-1800 RPM
- Type: 14cm Case Fan
- AMD/Intel: N/A
- Fan Connector(s): 4-pin
- Installation: Screws
- #Hide#LED Lighting: No
- Colour: Black
- LED Lighting: -
- Weight: 109 g
- Fan Dimensions: 140 x 140 x 16 mm
- Fan Controller: PWM
- Rotation Speed: 150-1800 RPM
0 RPM below 5 % PWM - Fan Bearing: Fluid Dynamic
- Air Flow: 88.35 m³/h | 52 cfm
- Noise level: 0.3 Sone
- Power: Current/Voltage: 0.19 A/12 V DC
- Additional Features: See Overview
- Package Contents: 1 x P14 Slim PWM PST
4 x Mounting Screws - Package Type: Retail
- Package Weight: 0.1500 kg
- Warranty: 6 Years
| Specifications | Pressure-optimised 140 mm PWM Fan with integrated Y-cable Ideal for Small Spaces Unlike standard 140 mm case fans with a thickness of 27 mm, the P14 Slim PWM PST has a mounting depth of only 16 mm. This makes it the ideal choice for Small Form Factor (SFF) builds. Corresponding screws for mounting on a radiator are already included. Optimised for High Static Pressure Because the fan design of the P14 Slim PWM PST is optimised for focused airflow, it generates high static pressure. The fan enables extremely efficient cooling and good airflow— even with increased air resistance. This makes the P14 Slim PWM PST particularly well-suited for use on concealed case intakes, dust filters, radiators, and generally in small cases that have little space for free airflow due to compactly placed hardware. Maximum Quietness, Minimum Vibration The operating noise of the newly-developed ARCTIC motor is barely perceptible, even at the lowest speed. Thanks to its special magnetization, the motor of the P-fans generates no start-up jerks and only a fraction of the commutation vibrations of a conventional DC motor. As a result, there is far less vibration on the housing at different speeds and no need for rubber buffering or additional decoupling. Improved Service Life The new ARCTIC motor generates significantly less frictional heat than its predecessors and current competitor models. As a result, coil temperature is reduced by up to 20 degrees, quadrupling service life, while reduced frictional losses ensure more efficient operation. 150 to 1800 RPM Controlled via PWM PST With a wide speed range and innovative PWM Sharing Technology (PST), the P14 Slim PWM PST's fan speed can be controlled in sync with other fans. ARCTIC's PST fans come equipped with their own built-in daisy-chain solution, and, in addition to the plug-in connector, have another socket to which an additional fan or up to 4 other PST fans can be connected in series. High Quality Sleeve Bearing Thanks to a combination of alloy and lubricant developed in Germany, friction within the bearing is minimized and greater efficiency is achieved. In addition to preventing lubricant loss, wear on the pin and sleeve is also reduced to a minimum. Less heat is developed, less bearing noise is generated and the life of the fan is extended significantly. 0 DB Mode - Zero RPM The speed of the P14 Slim PWM PST can be throttled down to a standstill via PWM. This allows efficient and silent PC operation in idle while guaranteeing maximum performance on demand. Versatile Use The P14 Slim PWM PST allows customisable installation in the case. It can both suck in cool air as an Intake fan and push out warm air as an Exhaust fan. The fan also offers both push and pull installation options on the radiator.
|
|---|
