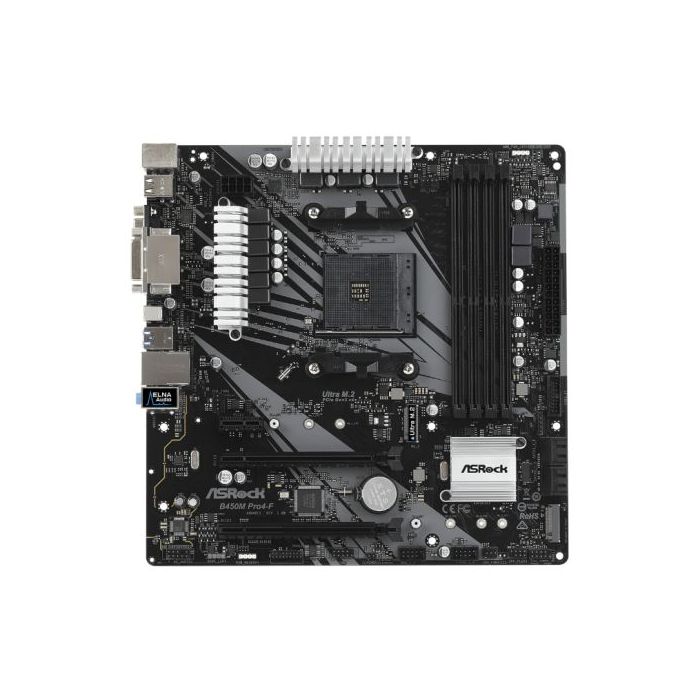

Asrock B450M PRO4-F, AMD B450, AM4, Micro ATX, 4 DDR4, XFire, VGA, DVI, HDMI, M.2
£71.99
incl. VAT
+ Free Shipping
Out of stock
SKU
SPTECH-ASMBB450MPRO4-F
Asrock B450M PRO4-F, AMD B450, AM4, Micro ATX, 4 DDR4, XFire, VGA, DVI, HDMI, M.2
- Motherboard Type: Desktop
- Form Factor: Micro ATX
- Socket: AMD AM4
- Chipset: AMD B450
- #Hide#DDR Type: DDR4
- CPU Support: Click here for CPU support
- RAM Technology: DDR4 (Dual Channel)
- RAM Slots: 4 x DIMM
- RAM Speeds: 3200+(OC) / 2933/2667/2400/2133 MHz
- Maximum Memory: 64GB
- Graphics: Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU
- Graphics Ports: 1 x VGA
1 x DVI-D
1 x HDMI - Multi-GPU Support: AMD Quad CrossFireX Technology
- PCI/PCI Express: 1 x PCIe 3.0 x16
1 x PCIe 2.0 x16
1 x PCIe 2.0 x1 - Storage: 4 x SATA III
1 x M.2 (2230/2242/2260/2280) - SATA
1 x Ultra M.2 (2242/2260/2280) PCIe - RAID: "RIAD 0,1, 10"
- Wireless: -
- LAN: GB LAN
- Audio: 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
- USB Ports Supported: "2 x USB 3.1 Gen1 Type-C (at back)
6 x USB 3.1 Gen1 (4 at back, 2 at mid-board)
6 x USB 2.0 (2 at back, 4 at mid-board)" - Back Panel I/O Ports: 1 x PS/2 Mouse
1 x PS/2 Keyboard
1 x D-Sub
1 x DVI-D
1 x HDMI
2 x USB 2.0
1 x USB 3.1 Gen1 Type-C
4 x USB 3.1 Gen1
1 x RJ-45 LAN
HD Audio Jacks - Internal I/O Connectors: 1 x COM Port
1 x TPM
1 x Power LED and Speaker
1 x RGB LED
1 x Addressable LED
1 x AMD Fan LED
1 x CPU Fan
2 x Chassis Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x Front Audio
1 x AMD LED Fan USB - .: 1 x COM Port
1 x TPM
1 x Power LED and Speaker
1 x RGB LED
1 x Addressable LED
1 x AMD Fan LED
1 x CPU Fan
2 x Chassis Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x Front Audio
1 x AMD LED Fan USB - Accessories: Quick Installation Guide
Support CD
I/O Shield
2 x SATA Data Cables
2 x Screws for M.2 Sockets - Additional Features: See Overview
- Package Type: Retail
- Package Weight: 1.1000 kg
- Warranty: 3 Year Replacement Warranty
- #Hide#M.2 Slot(s): Yes (M.2)
- #Hide#No. LAN Ports: 1 x LAN
- #Hide#Max LAN Speed: GB LAN
| Specifications |
AMD StoreMI Technology A powerful tool that combines the speed of your SSD with the capacity of your hard disk into a single, fast, easy-to-manage drive. SSDs are fast, but expensive, and offer minimal capacity. Mechanical hard drives boast large capacity for a low price, but are much slower than an SSD. AMD StoreMI technology “combines” these two types of storage into a single drive and automatically moves the data you access the most to the SSD, so you get the best of both worlds: SSD responsiveness, and mechanical hard disk capacity. You can also use up to 2GB of RAM as a last-level cache for ultra-fast data. Dual M.2 For SSD Equipped with M.2 slot that supports both SATA3 6Gb/s and PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to 32Gb/s, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSD. Rule Your Own Lighting Way - Polychrome RGB This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects. USB Type-C A latest reversible USB Type-C design that fits the connector either way. 2oz Copper It comes with 2 ounces copper inner layers, using only carefully selected copper materials for PCB layers, delivering lower temperature and higher energy efficiency for overclocking. Super Alloy Motherboard Premium 42A Power Choke Compared to traditional chokes, ASRock’s premium 42A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. Sapphire Black PCB Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch. High Density Glass Fabric PCB High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity. 2oz Copper PCB Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking. Digi Power This motherboard uses a next generation Hybrid Digi Power design to bring precise control and smooth power. With the ensured efficient and clean power delivery to the CPU, the stability and lifespan of motherboard is also greatly enhanced. ELNA Audio Caps Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles. |
|---|
