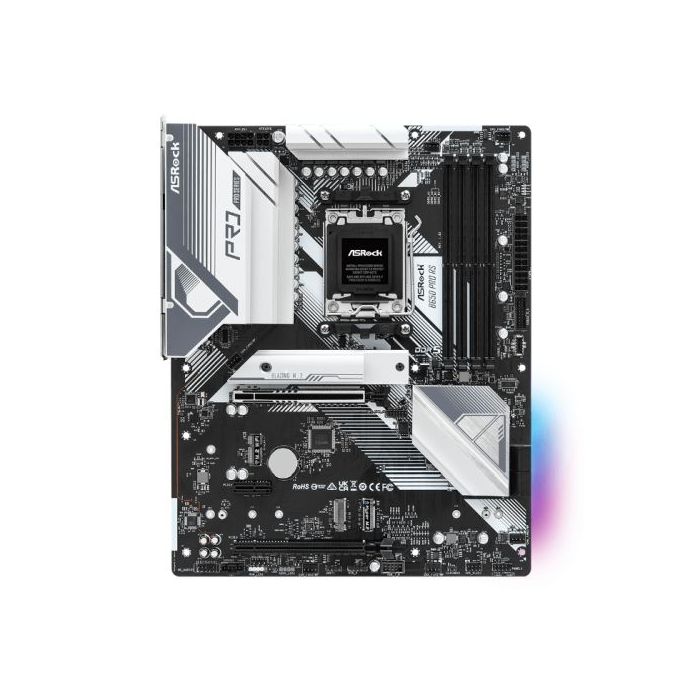

Asrock B650 PRO RS, AMD B650, AM5, ATX, 4 DDR5, HDMI, DP, 2.5G LAN, PCIe4, RGB, 3x M.2
£149.99
incl. VAT
+ Free Shipping
Out of stock
SKU
SPTECH-ASMBB650PRORS
Asrock B650 PRO RS, AMD B650, AM5, ATX, 4 DDR5, HDMI, DP, 2.5G LAN, PCIe4, RGB, 3x M.2
- Motherboard Type: Desktop
- Form Factor: ATX
- Socket: AMD AM5
- Chipset: AMD B650
- #Hide#DDR Type: DDR5
- CPU Support: Click here for CPU support
- RAM Technology: DDR5 (Dual Channel)
- RAM Slots: 4 x DIMM
- RAM Speeds: Up to 6200+(OC)
- Maximum Memory: 128GB
- Graphics: Integrated Graphics*
*Graphics specifications may vary between CPU types - Graphics Ports: 1 x HDMI
1 x DisplayPort - Multi-GPU Support: Supports AMD CrossFire
- PCI/PCI Express: 1 x PCIe 4.0 x16 (supports x16 mode)
1 x PCIe 3.0 x16 (supports x4 mode)
1 x PCIe 4.0 x1 - Storage: 4 x SATA III
1 x M.2 (2280) - PCIe
1 x M.2 (2242/2260/2280) - SATA & PCIe
1 x M.2 (2260/2280) - PCIe - RAID: "Supports RAID 0 and RAID 1 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices" - Wireless: -
- LAN: 2.5GB LAN
- Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- USB Ports Supported: "1 x USB 3.2 Gen2 Type-C (at back)
1 x USB 3.2 Gen2 Type-A (at back)
4 x USB 3.2 Gen1 (2 at back, 2 at mid-board)
9 x USB 2.0 (6 at back, 3 at mid-board)
1 x Front USB 3.2 Gen2x2 Type-C connector" - Back Panel I/O Ports: 2 x Antenna Mounting Points
1 x HDMI
1 x DisplayPort 1.4
1 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen2 Type-C
2 x USB 3.2 Gen1
6 x USB 2.0
1 x RJ-45 LAN
1 x BIOS Flashback Button
HD Audio Jacks - Internal I/O Connectors: 1 x SPI TPM
1 x Power LED and Speaker
1 x RGB LED
3 x Addressable LED
1 x CPU Fan
1 x CPU/Water Pump Fan
4 x Chassis/Water Pump Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x 4 pin 12V
1 x Front Panel Audio
1 x Thunderbolt AIC - .: 2 x USB 2.0
1 x USB 3.2 Gen1
1 x Front Panel Type-C USB 3.2 Gen2x2 - Accessories: 1 x User Manual
2 x SATA Data Cables
3 x Screws for M.2 Sockets - Additional Features: See Overview
- Package Type: Retail
- Package Weight: 2.0000 kg
- Warranty: 3 Year Replacement Warranty
- #Hide#M.2 Slot(s): Yes (M.2)
- #Hide#No. LAN Ports: 1 x LAN
- #Hide#Max LAN Speed: 2.5GB LAN
- #Hide#RGB Lighting: Out of the box RGB lighting
| Specifications |
B650 Pro RS
Optimized VRM Design SPS (Smart Power Stage) Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability. 14+2+1 Power Phase Design Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers. 8 Layer PCB design The 8 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, ensures a reliable and long-lasting system while delivering ultimate performance without any compromise. Extreme Overclocking Performance DDR5 EXPO & XMP Support Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. All B650 motherboards are built with 8-Layer PCB design, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance up to 6400MHz and beyond by enabling the pre-tested profiles. Make sure the memory modules are AMD EXPO™/ Intel® XMP capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all. The Blazing OC Tuner allows AM5 CPU to switch between OC mode and PBO(Precision Boost Overdrive) mode when the CPU current hits threshold. Anything above current threshold will engage manual OC mode; if below current threshold then will engage Precision Boost Overdrive mode. This idea is to combine overclocking on all cores and automatic boost on a single core to get the best performance out of your CPU. There is no need to enter BIOS to setup up, you can modify all the settings on time under OS. DDR5 Memory with Protection Circuit Due to the unique electrical architecture of DDR5 DIMM, there’s a high risk of damaging the memory module if AC power isn’t disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module. Nahimic Audio Audio That Matters Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. Enhance Communication Quality The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue. Sound Tracker The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game. Works on any devices! Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience. Polychrome RGB In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
|
|---|
