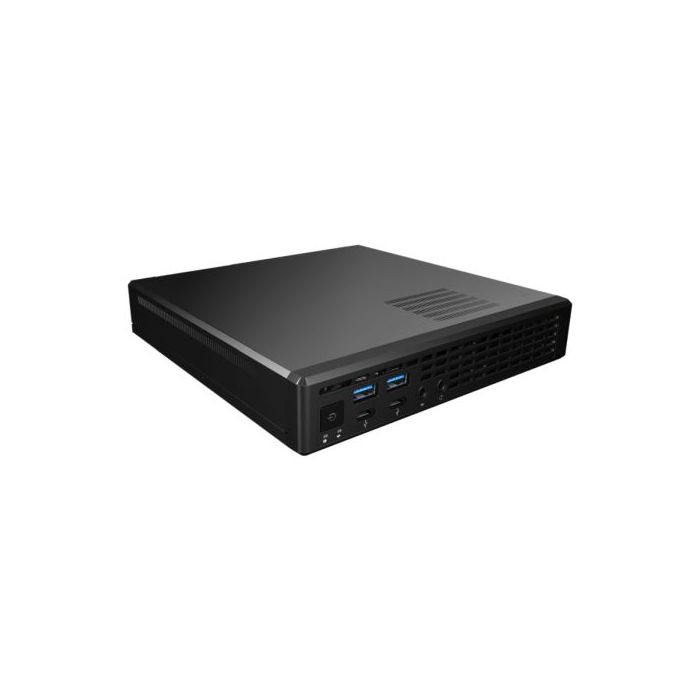

Asrock Jupiter H310 Mini Desktop Barebone PC, 1151 H310, DDR4 SO-DIMM, 2.5", M.2, VGA, HDMI, DP, USB-C, COM Port, VESA - No CPU, RAM, HDD or O/S

Name: Asrock Jupiter H310 Mini Desktop Barebone PC, 1151 H310, DDR4 SO-DIMM, 2.5", M.2, VGA, HDMI, DP, USB-C, COM Port, VESA - No CPU, RAM, HDD or O/S
Brand: Asrock Jupiter H310 Mini Desktop Barebone PC, 1151 H310, DDR4 SO-DIMM, 2.5", M.2, VGA, HDMI, DP, USB-C, COM Port, VESA - No CPU, RAM, HDD or O/S
SKU: SPTECH-PCAS-JUPITERH310
Price: 177.99 GBP
Availability: OutOfStock

Be the first to review this product

£177.99 incl. VAT + Free Shipping

Out of stock

SKU

SPTECH-PCAS-JUPITERH310

Asrock Jupiter H310 Mini Desktop Barebone PC, 1151 H310, DDR4 SO-DIMM, 2.5", M.2, VGA, HDMI, DP, USB-C, COM Port, VESA - No CPU, RAM, HDD or O/S

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Chassis: Asrock Jupiter Mini Desktop
Tower / Small Form Factor: Small Form Factor
Processor: None
Processor Details: Supports Intel 9th/8th Gen LGA1151 Processors (Max. TDP 65W)
Chipset: Intel H310
Graphics: Supports Intel UHD Graphics
#Hide#Processor: None
Memory: None
Memory Details: 2 x SO-DIMM Slots
Supports DDR4 2666MHz
Max. 32GB (non-ECC)
Hard Drive: None
Optical Drive: None
Supported Drives: 1 x SATA 6Gb 2.5"""" 7mm/9.5mm Hard Drive
M.2 2280 PCIe Gen3 x4 & SATA 6Gb
Operating System: No O/S
Front I/O: 2 x USB 3.1 Gen1 Type-C
2 x USB 3.1 Gen1 Type-A
1 x Head Phone with Mic Jack
1 x Mic-In
Back I/O: 1 x VGA
1 x HDMI
1 x DisplayPort
4 x USB 2.0 Type-A
1 x RJ45
1 x COM Port
LAN: 1 x RJ45 Gigabit LAN
Realtek RTL8111H
Wireless: 1 x M.2 (2230) Wi-Fi Slot (module sold separately)
Sound: 1 x 2W Speaker
Realtek ALC233
Expansion: 1 x 4-Pin Fan Connector
1 x DC-In Jack (Supports 19V Power Adapters)
1 x Internal Speaker Header
1 x 2-Pin Chassis Intrusion Header
1 x COM Port Header
Power Unit: 90W/19V Adapter
Keyboard and Mouse: No
Dimensions: Motherboard: 170 x 170mm (Proprietary)
Barebone: 178 x 178 x 34mm (1.0L)
Additional Features: See Overview
Accessories: 1 x SATA Data with Power Cable
1 x Screws Pack
1 x Stand
2 x Antenna
Package Weight: 2.2000 kg
Package Type: Retail
Warranty: 3 Years

More Information

More Information
Specifications	Jupiter mini Desktop - Small Form Factor Solution Supports Intel® 9th/8th Gen LGA1151 Processors, up to 65W USB 3.1 Gen1 Type-C Port DisplayPort, HDMI, D-Sub 1 x M.2 (2280) PCIe / SATA 6G Slot 1 x 2.5" HDD/SSD Tray 1 x M.2 (2230) Wi-Fi Slot 1 x RS232 (COM) Port One Liter Compact Desktop ASRock Jupiter features with book size but including great power and fits everywhere. Great CPU performance ASRock Jupiter 300 series supports Intel® 9th and 8th Gen LGA 1151 Processors. Up to 65W and Six Cores to offer great CPU performance. Dual DDR4 ASRock Jupiter 300 series adopts dual channel DDR4 SO-DIMMs, supports up to 32GB DDR4-2666MHz high speed memory. Abundant Expansions ASRock Jupiter supports various storage and WLAN: - M.2 2280 for PCIe / SATA 6G SSD - 2.5” SSD/HDD 9.5mm Tray - M.2 2230 Wi-Fi connector Rich Connectivity ASRock Jupiter H310 series supports 8 USB ports: Front Side - 2 x USB 3.1 Gen 1 Type-C - 2 x USB 3.1 Gen 1 Type-A Rear - 4 x USB 2.0 Multi Display Outputs ASRock Jupiter H310 series supports multi display for improved productivity and higher flexibility. DisplayPort, HDMI, D-Sub *Supports up to 2 displays simultaneously VESA Mount & Stand For better space planning, ASRock provide flexible placing accessories. Tri-direction VESA mount let you mount Jupiter behind monitor, or try vertical stand to save desk space.
