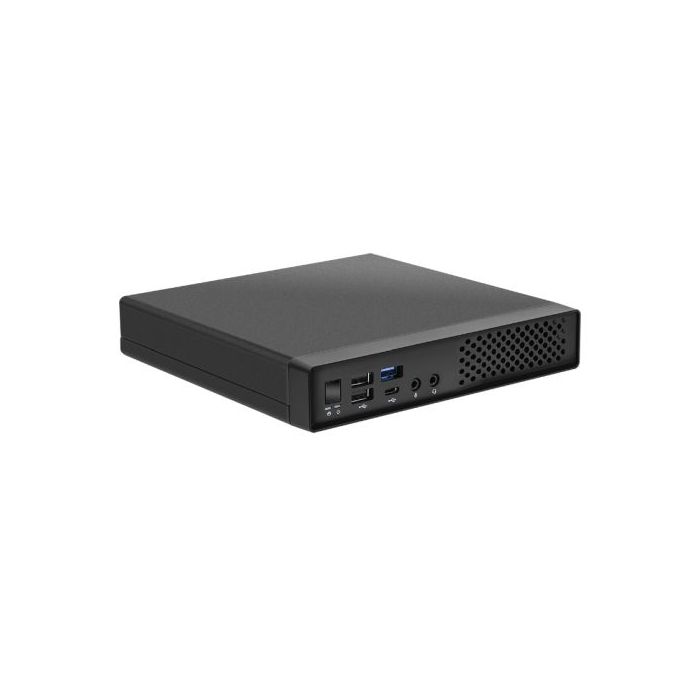

Asrock Jupiter H610 Mini Desktop Barebone PC, LGA1700 H610, DDR4 SO-DIMM, 2.5", M.2, HDMI, 2x DP, USB-C, COM Port, VESA - No CPU, RAM, HDD or O/S

Name: Asrock Jupiter H610 Mini Desktop Barebone PC, LGA1700 H610, DDR4 SO-DIMM, 2.5", M.2, HDMI, 2x DP, USB-C, COM Port, VESA - No CPU, RAM, HDD or O/S
Brand: Asrock Jupiter H610 Mini Desktop Barebone PC, LGA1700 H610, DDR4 SO-DIMM, 2.5", M.2, HDMI, 2x DP, USB-C, COM Port, VESA - No CPU, RAM, HDD or O/S
SKU: SPTECH-PCAS-JUPITERH610
Price: 217.99 GBP
Availability: OutOfStock

Be the first to review this product

£217.99 incl. VAT + Free Shipping

Out of stock

SKU

SPTECH-PCAS-JUPITERH610

Asrock Jupiter H610 Mini Desktop Barebone PC, LGA1700 H610, DDR4 SO-DIMM, 2.5", M.2, HDMI, 2x DP, USB-C, COM Port, VESA - No CPU, RAM, HDD or O/S

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

#Hide#Fully Built / Barebone: Barebone
Chassis: Asrock Jupiter Mini Desktop
Tower / Small Form Factor: Small Form Factor
Processor: None
Processor Details: Supports 13th Gen & 12th Gen Intel Processors (LGA1700)
Max. TDP 65W
Chipset: Intel H610
Graphics: 1 x HDMI
1 x DisplayPort 1.4 (DP1)
1 x DisplayPort 1.2 (DP2)
#Hide#Processor: None
Memory: None
Memory Details: 2 x DDR4-3200MHz SO-DIMM (non-ECC)
Max. 64GB
Hard Drive: None
SSD Drive: None
Optical Drive: None
Supported Drives: "1 x SATA 6Gb 2.5"" 7mm/9.5mm
1 x Hyper M.2 (2280) PCIe 4.0 x4
1 x Hyper M.2 (2280) PCIe 3.0 x4

*Cannot support 2.5” HDD & 2x M.2 SSDs at the same time. If you want to install 2x M.2 SSDs, please remove HDD bracket and use fanless heatsink (sold separately)."
Operating System: No O/S
Front I/O: 1 x USB 3.2 Gen1 Type-A
1 x USB 3.2 Gen1 Type-C
2 x USB 2.0
1 x Headphone/Headset Jack
1 x Power Button
Back I/O: 1 x DC Jack (Compatible with the 19V power adapter)
1 x HDMI
2 x DisplayPort
1 x COM Port
4 x USB 3.2 Gen1 Type-A
1 x USB 3.2 Gen1 Type-C
1 x RJ-45 LAN Port with LED
LAN: GB LAN
Wireless: -
Bluetooth: -
Sound: Realtek ALC269
1 x Head Phone with Mic Jack
1 x Mic-In
1 x 2W Speaker
Power Unit: 120W/19V Adapter
Keyboard and Mouse: No
Dimensions: 179 x 178 x 34 mm
1.1L
Additional Features: See Overview
Accessories: 1 x Quick Installation Guide
1 x SATA Data with Power Cable
1 x Screws Pack
1 x Stand
1 x VESA Mount
2 x Antennas
Package Weight: 2.1500 kg
Package Type: Retail
Warranty: 2 Year Replacement Warranty

More Information

More Information
Specifications	Tiny but Awesome Jupiter 600 series features the flexibility and expandability in a compact size suited to a wide range of applications such as office, retail, healthcare, transportation and industry. With support for 13th Gen Intel Core processors up to 65 watts, dual DDR4 3200MHz memory, and comprehensive connectivity, Jupiter 600 series provides powerful performance to meet user's needs. Supports 13th Gen & 12th Gen Intel Core Processors (LGA1700), up to 65W Dual DDR4-3200MHz SO-DIMMs, up to 64GB Integrated thermal solution Multi Video Outputs:2 x DisplayPort (co-lay D-Sub), HDMI 2 x USB 3.2 Gen1 Type-C, 5 x USB 3.2 Gen1 Type-A 2 x USB 2.0 Support RS232 (COM) port 2 x M.2 (2280) slot for SSD (1 x PCIe Gen4 x4) M.2 (2230) slot for Wi-Fi Optional 2W Speaker Optional TPM 2.0 IC 179 x 178 x 34mm / 1.07L Proprietary Thermal Solution Copper based heatsink High efficiency blower Three-storage Design* - 1 x SATA 6Gb 2.5-inch 7mm/9.5mm Hard Drive - 1 x Hyper M.2 (2280) - PCIe Gen4 x4 - 1 x Ultra M.2 (2280) -PCIe Gen3 x4 JPT 600 series cannot support 2.5" HDD and 2 x M.2 SSD at the same time. If you want to install 2 x M.2 SSD, please remove HDD bracket and use fanless Heatsink (optional accessory). Optional Wi-Fi Module Jupiter H610 supports optional Intel M.2 Wi-Fi & Bluetooth Module: Intel AX-210 Intel AC-3168 *Sold separately Rich Connectivity Comprehensive connectivity with nine USB ports including a USB 3.2 Gen1 Type-C on each front and rear panel, three displays and a COM port means Jupiter 600 series is ideal for use to business, POS and digital signage. Enhanced Productivity With support for two DisplayPort and one HDMI connectors at the same time, Jupiter 600 series lets you increase your productivity at work. Security Solutions Chassis Intrusion Get alert if Jupiter's chassis has been opened. Kensington Lock Slot Protect Jupiter from theft. TPM 2.0 (sold separately) VESA Mount Let you mount Jupiter behind the monitor easily.
