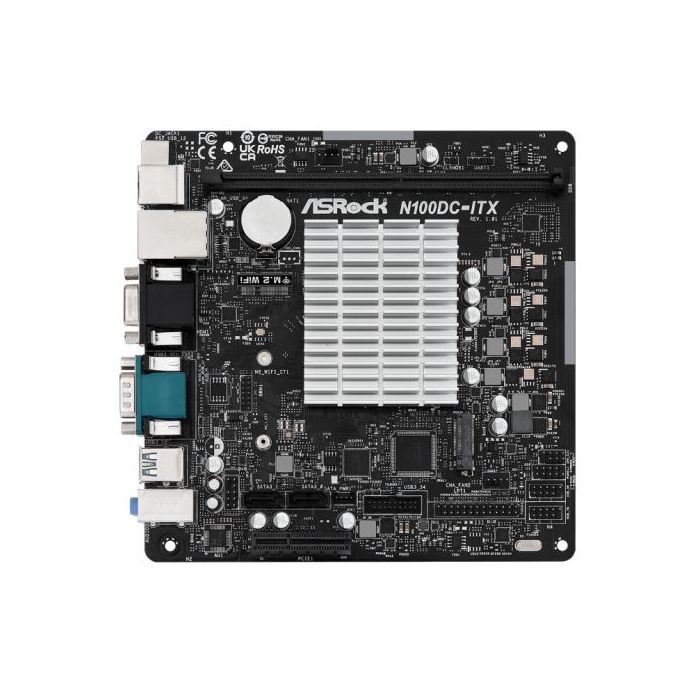

Asrock N100DC-ITX, Integrated Intel Quad-Core N100, Mini ITX, 1 DDR4, VGA, HDMI, DC Jack, Fanless Design, 1x M.2

Name: Asrock N100DC-ITX, Integrated Intel Quad-Core N100, Mini ITX, 1 DDR4, VGA, HDMI, DC Jack, Fanless Design, 1x M.2
Brand: Asrock N100DC-ITX, Integrated Intel Quad-Core N100, Mini ITX, 1 DDR4, VGA, HDMI, DC Jack, Fanless Design, 1x M.2
SKU: SPTECH-ASMBN100DC-ITX
Price: 123.99 GBP
Availability: OutOfStock

Be the first to review this product

£123.99 incl. VAT + Free Shipping

Out of stock

SKU

SPTECH-ASMBN100DC-ITX

Asrock N100DC-ITX, Integrated Intel Quad-Core N100, Mini ITX, 1 DDR4, VGA, HDMI, DC Jack, Fanless Design, 1x M.2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Motherboard Type: Desktop
Form Factor: Mini ITX
Socket: Embedded CPU
CPU: Intel Quad-Core Processor N100 (Up to 3.4 GHz)
#Hide#DDR Type: DDR4
CPU Support: N/A (Integrated CPU)
RAM Technology: "Supports DDR4 non-ECC, un-buffered memory"
RAM Slots: 1 x DIMM
RAM Speeds: Up to 3200 MHz
Maximum Memory: 16GB
Graphics: Integrated Intel UHD Graphics
24 EUs inside (Up to 750MHz)
Graphics Ports: 1 x VGA
1 x HDMI
PCI/PCI Express: 1 x PCIe 3.0 x4 (supports x2 mode)
Storage: 2 x SATA III
1 x M.2 (2280) - PCIe 3.0 x2
Wireless: -
LAN: GB LAN
Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
USB Ports Supported: Rear:
2 x USB 3.2 Gen1 Type-A
4 x USB 2.0

Front:
2 x USB 3.2 Gen1 Type-A
4 x USB 2.0
Back Panel I/O Ports: 1 x DC Jack (Compatible with 19V power adapters)
2 x Antenna Mounting Points
1 x PS/2 Mouse/Keyboard
1 x Serial Port: COM1
1 x D-Sub
1 x HDMI
2 x USB 3.2 Gen1
4 x USB 2.0
1 x RJ-45 LAN
HD Audio Jacks
Internal I/O Connectors: 1 x Print Port
1 x SPI TPM
1 x Chassis Intrusion and Speaker
2 x Chassis Fan
1 x Front Panel Audio
2 x USB 2.0 Headers
1 x USB 3.2 Gen1
Accessories: 1 x User Manual
1 x I/O Shield
2 x SATA Data Cables
1 x SATA Power Cable
2 x Screws for M.2 Sockets
Additional Features: See Overview
Package Type: Retail
Package Weight: 0.6400 kg
Warranty: 3 Year Replacement Warranty
#Hide#M.2 Slot(s): Yes (M.2)
#Hide#No. LAN Ports: 1 x LAN
#Hide#Max LAN Speed: GB LAN

More Information

More Information
Specifications	N100DC-ITX Intel® Quad-Core Processor N100 (up to 3.4 GHz) Supports 1 DDR4 DIMM 1 DC Jack (Compatible with the 19V power adapter) 1 PCIe 3.0 x4 (x2 mode), 1 M.2 Key E for WiFi Graphics Output Options: D-Sub, HDMI 7.1 CH HD Audio (Realtek ALC897 Audio Codec) 2 SATA3, 1 M.2 (PCIe Gen3x2) 4 USB 3.2 Gen1 (2 Rear, 2 Front) Realtek Gigabit LAN Supports ASRock Auto Driver Installer Intel® Alder Lake-N N100 Processor The newest Intel® N100 processor, built on the Gracemont CPU microarchitecture using the Intel® 7 process, features 4 E-cores with a turbo frequency of 3.4GHz and Intel® UHD Graphics with 24 EUs. It is suitable for affordable, entry-level computing. DC-In Design The DC-In jack is compatible with 19V power adapters. Without a bulky power supply unit, this unique design allows this motherboard to fit in compact chassis. Power adapter is not included. Fanless Design The CPU is covered by a specially designed heatsink which allows advanced heat dissipation. Utilizing an ultra quiet fanless design, this ASRock motherboard provides the most silent computing environment. AV1 Decoding + 4K Supports 10-bit HEVC & VP9 encoding/decoding, hardware-accelerated AV1 decoding, and a max. resolution of up to 4K x 2K 60Hz. M.2 (KEY E) For WiFi Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot. Wi-Fi module is not included. Auto Driver Installer No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD. step1: Install Auto Driver Installer step2: Update drivers needed step3: Done!
