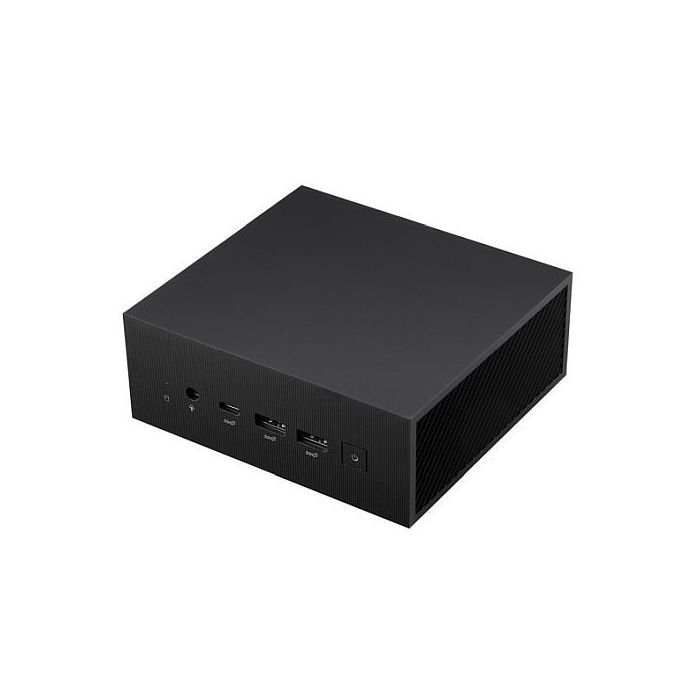

Asus Mini PC PN64 Barebone PN64-B-S7122MD, i7-12700H, DDR5 SO-DIMM, 2.5"/M.2, HDMI, DP, USB-C, 2.5G LAN, Wi-Fi 6E, VESA - No RAM, Storage or O/S

Name: Asus Mini PC PN64 Barebone PN64-B-S7122MD, i7-12700H, DDR5 SO-DIMM, 2.5"/M.2, HDMI, DP, USB-C, 2.5G LAN, Wi-Fi 6E, VESA - No RAM, Storage or O/S
Brand: Asus Mini PC PN64 Barebone PN64-B-S7122MD, i7-12700H, DDR5 SO-DIMM, 2.5"/M.2, HDMI, DP, USB-C, 2.5G LAN, Wi-Fi 6E, VESA - No RAM, Storage or O/S
SKU: SPTECH-PCAUPN64BS7122MD
Price: 546.99 GBP
Availability: OutOfStock

Be the first to review this product

£546.99 incl. VAT + Free Shipping

Out of stock

SKU

SPTECH-PCAUPN64BS7122MD

Asus Mini PC PN64 Barebone PN64-B-S7122MD, i7-12700H, DDR5 SO-DIMM, 2.5"/M.2, HDMI, DP, USB-C, 2.5G LAN, Wi-Fi 6E, VESA - No RAM, Storage or O/S

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

#Hide#Fully Built / Barebone: Barebone
Chassis: Asus Mini PC PN64
Tower / Small Form Factor: Small Form Factor
Processor: Intel Core i7-12700H (3.5GHz)
Processor Details: 14-Core
4.7GHz turbo
Chipset: Integrated
Graphics: Intel Iris Xe Graphics
#Hide#Processor: Intel i7
Memory: None
Memory Details: 2 x DDR5 SO-DIMM slots
Max 32GB (2 x 16GB)
Up to 4800 MT/s
Hard Drive: None
SSD Drive: None
Optical Drive: None
Supported Drives: 1 x M.2 2280 PCIe Gen4x4
1 x SATA 6Gb/s for 2.5"" HDD (max 7mm high)
Operating System: No O/S
Front I/O: 1 x USB 3.2 Gen2 Type-C
2 x USB 3.2 Gen2
1 x Audio Jack (Line out/ Mic in/ Headphone out)
1 x Kensington Lock
Back I/O: "1 x USB 3.2 Gen2
1 x USB 3.2 Gen2 Type-C (support DP1.4, PD)
2 x HDMI
1 x Display Port 1.4
1 x Intel (RJ45) 2.5G LAN
1 x DC-in
1 x Padlock ring"
LAN: "2.5G LAN, Intel I225V"
Wireless: Wi-Fi 6E
Bluetooth: Bluetooth 5.2
Power Unit: "19Vdc, 6.32A, 120W Power Adapter "
Keyboard and Mouse: No
Dimensions: (WxDxH) 120 x 130 x 58 mm
0.9L
0.75 kg
Additional Features: See Overview
Package Weight: 1.8500 kg
Package Type: Retail
Warranty: 3 Years

More Information

More Information
Specifications	*Ultra-compact mini barebone PC with 12th Gen Intel® Core™ processors and Intel Graphics, DDR5 RAM (not included), PCIe® Gen 4 x4 M.2 NVMe® SSD, Intel® 2.5 Gb LAN, WiFi 6E* Powered by the latest Intel 12th Generation Core™ processor Whole new hybrid architecture design with powerful performance-cores and efficient-cores for improved multitasking, streaming experience and intelligent workload optimization. DDR5-4800 memory support allows your computer to transfer data faster than DDR4 Support one PCIe Gen4x4 SSD to deliver greater performance and lower latency 4 display located in the rear I/O panel including dual HDMI2.0 Features Two-Way AI Noise Cancelation to provide crystal-clear online voice communication Support DisplayPort 1.4 & Power Delivery input through rear USB Type-C port Onboard 2.5GbE LAN delivering faster Ethernet connectivity Advanced fan control to achieve better heat dissipation 24/7 reliability — Extensively tested to ensure long-term dependability New Processor Architecture Design ASUS ExpertCenter PN64 is powered by the latest Intel® 12th Gen Intel® Core™ CPU featuring a new hybrid processor design. It includes performance-cores (P-cores) dedicated to processing heavy loads and prioritized tasks, as well as efficient-cores (E-cores) catering to background tasks such as web browsing and PowerPoint presentations. This new core design enables PN64 to process multiple tasks simultaneously in the most efficient way possible. Superior Computing Performance ASUS ExpertCenter PN64 is powered by the latest 12th Generation Intel® Processors which deliver superior performance for you to save you time and increase your ability to do the things you want. Comparing to previous generation, PN64 has 23% increase on overall system performance, and over 2 times increase for daily multitask computing. With such great improvement, it helps you process intensive business operations more efficiently. Faster and better DDR5 RAM ASUS ExpertCenter PN64 is powered by12th Gen Intel® Core™ CPU supporting the next gen memory - DDR5. Supporting DDR5 allows you to transfer data faster than DDR4. Comparing to DDR4, DDR5 memory modules bring a higher level of bandwidth and speed, it improves 34% faster on memory read and 37% on write. DDR5 helps you to drive greater performance and productivity. Ultrafast PCIe® 4.0 SSD ASUS ExpertCenter PN64 supports one PCIe® Gen 4 X4 SSD to deliver low-latency data transfers at speeds of up to 8 GB/s, that’s twice the data transfer speeds of PCIe 3.0. Superfast 2.5 Gbps Ethernet ASUS ExpertCenter PN64 features next-generation 2.5GBASE-T technology for superfast 2.5 Gbps networking speeds, enabling it to make light work of the most data-intensive tasks. Modern, Space-saving Design Compact and stylish, ASUS ExpertCenter PN64 has a contemporary look that suits any home or office Ultra-realistic 8K Visuals ASUS ExpertCenter PN64 delivers breathtaking 8K visuals at 30 frames per second via the standard DisplayPort or DisplayPort over USB-C. Experience a level of detail that’s 4X greater than 4K, or 16X that of traditional FHD output. USB Power Delivery Input ASUS ExpertCenter PN64 can draw power from any USB Power Delivery-enabled display or device, eliminating the need for a separate power adapter to create a neater, uncluttered workspace. 4K Resolution & Quad Display Support ASUS ExpertCenter PN64 can support up to four 4K displays via HDMI® and DisplayPort™, without any limitation on the combination used. Padlock Ring for Security The chassis of ASUS ExpertCenter PN64 can be secured with a standard padlock to prevent access to internal components. New Lockable VESA Mount Design Lockable design for better security solution. Whole new lockable design avoids the device from stolen, and device can be mounted on the VESA plate with solidity. Military Standard Tests To ensure maximum reliability and durability, ASUS MiniPC PN64 has been tested through military standard 810H. Two-Way AI Noise Cancelation Filters unwanted noise from the microphone and incoming audio for crystal-clear voice communication. System Diagnosis Hardware diagnostic Scenario check-up - Provides brief descriptions to enable users to identify different situations encountered and select the ideal diagnostic checkup required. Smart Fan Control Performance & Quiet modes Gives users the flexibility to use maximum fan speed during heavy loads or switch to a lower speed for silent operation. Other Functions WiFi SmartConnect - Optimizes the wireless connection TaskFirst - Allocate networking bandwidth to specific tasks. Link to MyASUS - Allows users to connect the computer to a mobile device.
