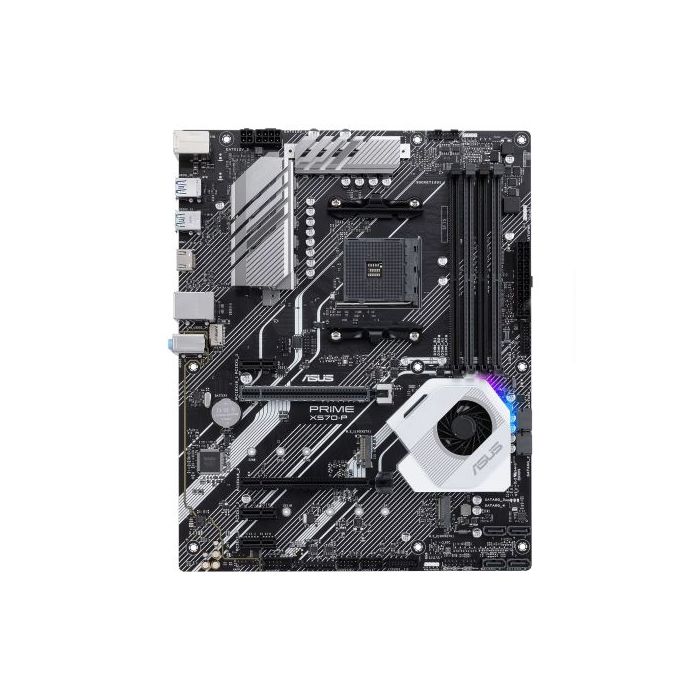

Asus PRIME X570-P, AMD X570, AM4, ATX, 4 DDR4, HDMI, XFire, PCIe4, M.2

Name: Asus PRIME X570-P, AMD X570, AM4, ATX, 4 DDR4, HDMI, XFire, PCIe4, M.2
Brand: Asus PRIME X570-P, AMD X570, AM4, ATX, 4 DDR4, HDMI, XFire, PCIe4, M.2
SKU: SPTECH-AUMBX570PPRIME
Price: 166.99 GBP
Availability: OutOfStock

Be the first to review this product

£166.99 incl. VAT + Free Shipping

Out of stock

SKU

SPTECH-AUMBX570PPRIME

Asus PRIME X570-P, AMD X570, AM4, ATX, 4 DDR4, HDMI, XFire, PCIe4, M.2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Motherboard Type: Desktop
Form Factor: ATX
Socket: AMD AM4
Chipset: AMD X570
#Hide#DDR Type: DDR4
CPU Support: Click here for CPU support
RAM Technology: DDR4 (Dual Channel)
RAM Slots: 4 x DIMM
Maximum Memory: 128GB
Graphics: Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
Graphics Ports: 1 x HDMI
Multi-GPU Support: Supports AMD 2-Way CrossFireX Technology
PCI/PCI Express: Ryzen 3rd Gen CPUs:
1 x PCIe 4.0 x16 (x16 mode)

Ryzen 2nd Gen CPUs:
1 x PCIe 3.0 x16 (x16 mode)

Ryzen 1st/2nd Gen CPUs:
1 x PCIe 3.0 x16 (x8 mode)

AMD X570 chipset
1 x PCIe 4.0 x16 (max at x4 mode)
3 x PCIe 4.0 x1
Storage: 6 x SATA III
1 x M.2 (2242/2260/2280) - SATA & PCIe
1 x M.2 (2242/2260/2280/22110) - SATA & PCIe
RAID: "RAID 0, 1, 10"
Wireless: -
LAN: GB LAN
Audio: Realtek S1200A 8-Channel High Definition Audio CODEC
USB Ports Supported: "4 x USB 3.2 Gen2 Type-A (at back)
4 x USB 3.2 Gen1 (2 at back, 2 at mid-board)
7 x USB 2.0 (2 at back, 5 at mid-board)"
Back Panel I/O Ports: 1 x PS/2 keyboard/mouse
1 x HDMI
1 x LAN (RJ45)
2 x USB 2.0
3 x Audio jacks
2 x USB 3.2 Gen 1 Type-A
4 x USB 3.2 Gen 2 Type-A
Internal I/O Connectors: 2 x Aura RGB Strip
1 x Addressable Gen 2
2 x USB 2.0
2 x M.2 Socket 3
1 x SPI TPM
1 x COM port
6 x SATA 6Gb/s
1 x CPU Fan
3 x Chassis Fan
1 x PCH_FAN
1 x AIO_PUMP
1 x S/PDIF out
.: 1 x 24-pin EATX
1 x 8-pin ATX 12V
1 x 4-pin ATX 12V
1 x Front audio connector(s) (AAFP)
1 x System panel
1 x Clear CMOS jumper
2 x USB 3.2 Gen 1
Accessories: User manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x Extension cable for Addressable LED
Additional Features: See Overview
Package Type: Retail
Package Weight: 1.3000 kg
Warranty: 3 Years
#Hide#M.2 Slot(s): Yes (M.2)
#Hide#RGB Lighting: Yes (RGB)
#Hide#No. LAN Ports: 1 x LAN
#Hide#Max LAN Speed: GB LAN

More Information

More Information
Specifications	*AMD AM4 ATX motherboard with PCIe Gen4, dual M.2, HDMI, SATA 6Gb/s and USB 3.2 Gen 2* Enhanced power solution: Components provide better power efficiency Industry-leading cooling options: Comprehensive controls for fans and AIO pump, via Fan Xpert 4 or the acclaimed UEFI ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory overclocking Next-gen connectivity: Supreme flexibility with PCIe Gen 4 support, dual M.2 support, USB 3.2 Gen 2 ports Aura Sync RGB header: Synchronise RGB header with a vast portfolio of compatible PC gear, including next-gen addressable RGB strips Foundation of your build Hosting the latest Ryzen processor with increased number of cores and bandwidth, the Prime X570 series is ready for action with stable power, intuitive cooling and flexible transfer options. It provides all the fundamentals to increase your everyday productivity. Power delivery enhancements and ProCool connector The latest AMD Ryzen 3rd Gen processors boosts more core and bandwidth, demanding more juice than typical desktop CPUs. Prime X570-P offers stable power. It augments the motherboard's link to the PSU with eight plus four-pin connectors that pass 12V power directly to the processors. Based on our ProCool design, these jacks use solid pins that can handle more current than hollow-pin connectors. Tune it your way The Prime X570 series feature software and firmware controls that make performance accessible to anyone. Prime X570 series also include options allowing you to personalise your build, and helping you to tune your rig to perform the way you want it. Armoury Crate Armoury Crate is a new software utility designed to give you centralised control of supported products. From a single intuitive interface, Armoury Crate allows you easily customise RGB lighting and effects for every compatible device in your arsenal. The software also provides control of settings for ASUS product, including keyboard and mouse preferences. Armoury Crate even features dedicated product registration and highlight to help you stay in touch with the ASUS community. Aura Sync RGB headers A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura Sync offers full lighting connected via the motherboard's RGB headers, with a variety of functional presets for external LED strips.* And it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware. Addressable RGB LED strip Gen 2 header The Prime X570-P now has the upgraded, addressable RGB header that allows intuitive software to control individual LEDs for more advanced effects and plenty of personalisation. The header is also ready for next-generation lighting devices, which can detect how many addressable LEDs are on an attached device, simplifying the setup process and allowing for automatically configured lighting effects. Brighten Up Your Build Built-in LED lighting options illuminate your build in a variety of eye-catching styles.

Reviews

Asus PRIME X570-P, AMD X570, AM4, ATX, 4 DDR4, HDMI, XFire, PCIe4, M.2

AMD AM4 ATX motherboard with PCIe Gen4, dual M.2, HDMI, SATA 6Gb/s and USB 3.2 Gen 2
