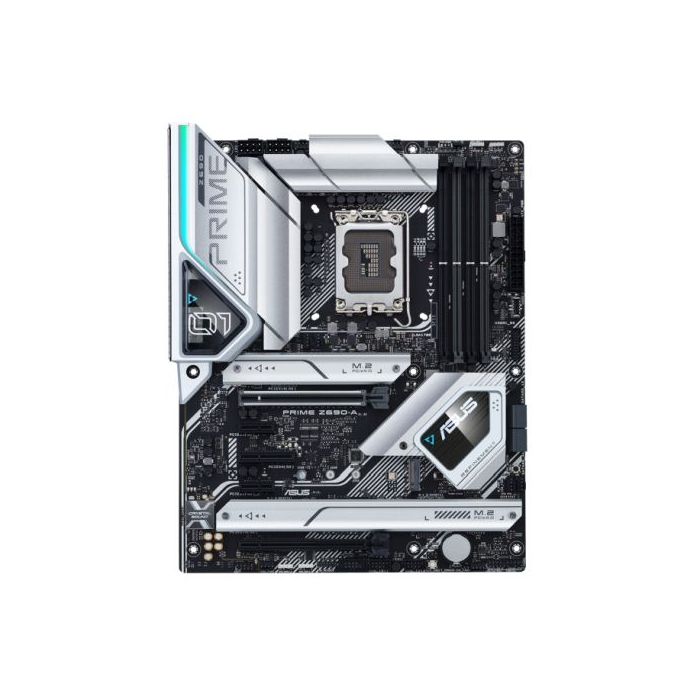

Asus PRIME Z690-A, Intel Z690, 1700, ATX, 4 DDR5, HDMI, DP, 2.5G LAN, PCIe5, RGB, 4x M.2
£252.99
incl. VAT
+ Free Shipping
Out of stock
SKU
SPTECH-AUMBZ690APR
Asus PRIME Z690-A, Intel Z690, 1700, ATX, 4 DDR5, HDMI, DP, 2.5G LAN, PCIe5, RGB, 4x M.2
- Motherboard Type: Desktop
- Form Factor: ATX
- Socket: Intel 1700
- Chipset: Intel Z690
- #Hide#DDR Type: DDR5
- CPU Support: Click here for CPU support
- RAM Technology: DDR5 (Dual Channel)
- RAM Slots: 4 x DIMM
- RAM Speeds: Up to 6000(OC)
- Maximum Memory: 128GB
- Graphics: Integrated Graphics*
*Graphics specifications may vary between CPU types - Graphics Ports: 1 x HDMI
1 x DisplayPort - PCI/PCI Express: 1 x PCIe 5.0
1 x PCIe 3.0 x16
1 x PCIe 3.0 x4
2 x PCIe 3.0 x1 - Storage: 4 x SATA III
2 x M.2 (2242/2260/2280/22110) - PCIe
1 x M.2 (2242/2260/2280) - PCIe
1 x M.2 (2242/2260/2280) - SATA & PCIe - RAID: "Intel Rapid Storage supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10"
- Wireless: -
- LAN: 2.5GB LAN
- Audio: Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
- USB Ports Supported: "1 x USB 3.2 Gen 2x2 Type-C (at back)
1 x USB 3.2 Gen2 Type-C (at back)
2 x USB 3.2 Gen2 Type-A (at back)
6 x USB 3.2 Gen1 Type-A (4 at back, 2 at mid-board)
4 x USB 2.0 (at mid-board)
1 x USB 3.2 Gen2 Type-C front panel connector" - Back Panel I/O Ports: "1 x USB 3.2 Gen2x2 Type-C
3 x USB 3.2 Gen2 (2 Type-A, 1 Type-C)
4 x USB 3.2 Gen1 Type-A
1 x DisplayPort
1 x HDMI
1 x Intel 2.5Gb Ethernet
5 x Audio jacks
1 x Optical S/PDIF out port" - Internal I/O Connectors: 1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
1 x 4-pin AIO Pump
4 x 4-pin Chassis Fan
1 x W_PUMP+
1 x 24-pin Main
2 x 8-pin +12V
4 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen2 Type-C
1 x USB 3.2 Gen1
2 x USB 2.0 - .: 3 x Addressable Gen2
1 x AURA RGB
1 x Clear CMOS button
1 x COM Port
1 x CPU Over Voltage jumper
1 x Front Panel Audio
1 x Power button
1 x SPI TPM (14-1pin)
1 x 20-3 pin System Panel
1 x Thermal Sensor
1 x Thunderbolt - Accessories: 2 x SATA 6Gb/s cables
1 x M.2 Rubber Package
1 x Q-connector
1 x M.2 Q-Latch package
1 x Support DVD
1 x User guide - Additional Features: See Overview
- Package Type: Retail
- Package Weight: 1.8000 kg
- Warranty: 3 Years
- #Hide#M.2 Slot(s): Yes (M.2)
- #Hide#RGB Lighting: Yes (RGB)
- #Hide#No. LAN Ports: 1 x LAN
- #Hide#Max LAN Speed: 2.5GB LAN
| Specifications |
Intel Z690 (LGA 1700) ATX motherboard with PCIe 5.0, four M.2 slots, 16+1 DrMOS power stages, DDR5, HDMI, DisplayPort, Intel 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C, front USB 3.2 Gen 2 Type-C, Thunderbolt 4 support and Aura Sync RGB lighting
PRIME ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime Z690-A provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features. ASUS Prime Z690-A offers a sleek, futuristic-looking build with a black and white finish, space-shuttle-inspired design elements, metallic nameplate and PCB cover. Flexibility Comprehensive controls form the foundation of the ASUS Prime series. The Prime Z690 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity. 5-Way Opitmisation ASUS 5-Way Optimisation makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it provides overclocking profiles that are tailored for your rig. Easy Optimisation is an automated tuning utility that enhances overclocking and cooling profiles for your unique system configuration. A stress test feature allows you to optimise and overclock for CPU - or memory-centric workloads. ASUS AI Overclocking ASUS AI Overclocking is an intelligent utility that helps you get the most out of your build by automatically profiling your CPU and cooling system to predict optimal voltage and frequency settings. Accessible via the AI Suite software in Windows or directly through the UEFI, the intuitive AI Overclocking user interface enables users of all levels. A range of customizable settings are available for seasoned overclockers, and an auto-tuning option is available for beginners. AI Cooling ASUS AI Cooling function will automatically manage and control motherboard-connected fans to ensure optimal settings based on current system load and temperature. UEFI BIOS The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans. Cooling Prime Z690 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. Performance Prime Z690 series is built to handle the additional cores and increased bandwidth of 12th Generation Intel processors. ASUS Z690 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options. Customisation Prime Z690 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look. |
|---|
