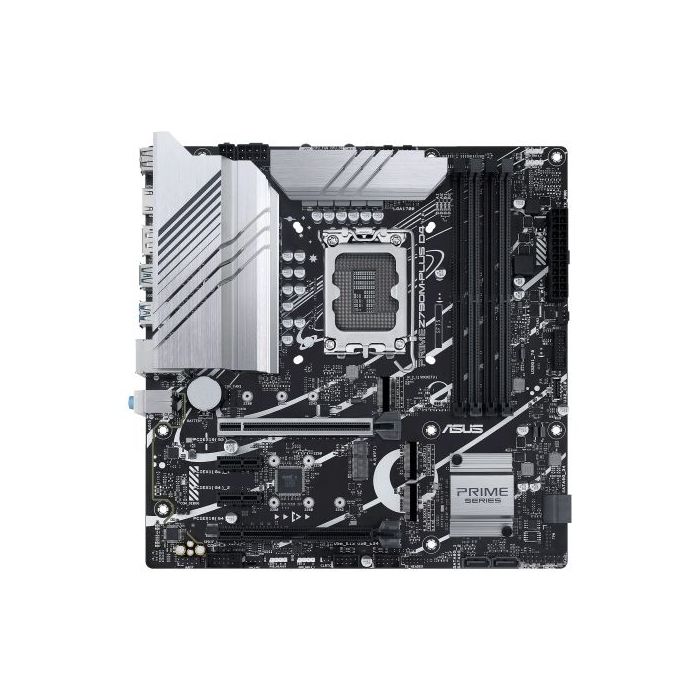

Asus PRIME Z790M-PLUS D4, Intel Z790, 1700, Micro ATX, 4 DDR4, HDMI, DP, GB LAN, PCIe5, 3x M.2
£236.99
incl. VAT
+ Free Shipping
Out of stock
SKU
SPTECH-AUMBZ790MPLPRD4
Asus PRIME Z790M-PLUS D4, Intel Z790, 1700, Micro ATX, 4 DDR4, HDMI, DP, GB LAN, PCIe5, 3x M.2
- Motherboard Type: Desktop
- Form Factor: Micro ATX
- Socket: Intel 1700
- Chipset: Intel Z790
- #Hide#DDR Type: DDR4
- CPU Support: Click here for CPU support
- RAM Technology: DDR4 (Dual Channel)
- RAM Slots: 4 x DIMM
- RAM Speeds: Up to 5333(OC)
- Maximum Memory: 128GB
- Graphics: Integrated Graphics*
*Graphics specifications may vary between CPU types - Graphics Ports: 1 x HDMI
1 x DisplayPort - PCI/PCI Express: 1 x PCIe 5.0 x16
1 x PCIe 4.0 x16 (supports x4 mode)
2 x PCIe 4.0 x1 - Storage: 4 x SATA III
1 x M.2 (2242/2260/2280) - PCIe
1 x M.2 (2260/2280) - PCIe
1 x M.2 (2242/2260/2280) - SATA & PCIe - RAID: "Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10"
- Wireless: -
- LAN: GB LAN
- Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
- USB Ports Supported: "1 x USB 3.2 Gen2x2 Type-C (at back)
1 x USB 3.2 Gen2 Type-A (at back)
6 x USB 3.2 Gen1 (4 at back, 2 at mid-board)
4 x USB 2.0 (at mid-board)
1 x Front Panel Type-C USB 3.2 Gen1 Header" - Back Panel I/O Ports: 1 x USB 3.2 Gen2x2 Type-C
1 x USB 3.2 Gen2 Type-A
4 x USB 3.2 Gen1 Type-A
2 x USB 2.0
1 x DisplayPort
1 x HDMI
1 x Intel 1Gb Ethernet
3 x Audio jacks - Internal I/O Connectors: 1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
1 x 4-pin AIO Pump
3 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin + 12V
1 x 4-pin + 12V
3 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen1 Type-C
1 x USB 3.2 Gen1
2 x USB 2.0 - .: 3 x Addressable Gen2
1 x Aura RGB
1 x Clear CMOS
1 x COM Port
1 x Front Panel Audio
1 x M.2 (Key E)
1 x S/PDIF Out
1 x SPI TPM (14-1pin)
1 x 20-3 pin System Panel
1 x Thunderbolt (USB4) - Accessories: 2 x SATA 6Gb/s cables
1 x I/O Shield
2 x Screw packages for M.2 SSD
1 x User guide - Additional Features: See Overview
- Package Type: Retail
- Package Weight: 1.5000 kg
- Warranty: 3 Years
- #Hide#M.2 Slot(s): Yes (M.2)
- #Hide#No. LAN Ports: 1 x LAN
- #Hide#Max LAN Speed: GB LAN
| Specifications | ASUS Prime Z790M-PLUS D4, an Intel Z790 LGA 1700 mATX motherboard with PCIe® 5.0, three M.2 slots, 10+1 DrMOS, DDR4, Intel® 1 Gb LAN, HDMI®, DP, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C®, Thunderbolt™ (USB4®) support, Arua Sync
Flexibility Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME Z790M-PLUS D4 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity. Cooling PRIME Z790M-PLUS D4 motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. Performance The PRIME Z790M-PLUS D4 motherboard is built to handle the high core counts and bandwidth demands of 13th Gen Intel® Core™ Processors. ASUS Z790 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options. Customization The PRIME Z790M-PLUS D4 motherboard adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look. ** Click here for full product details ** |
|---|
