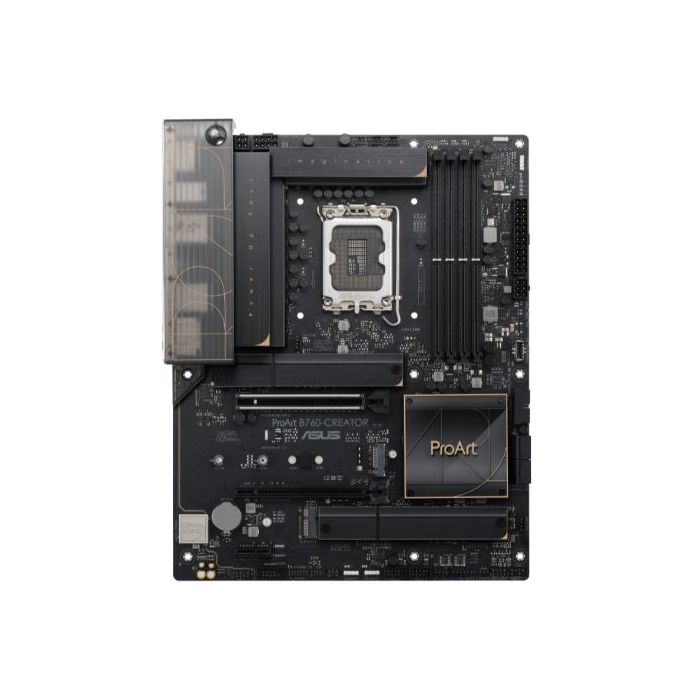

Asus PROART B760-CREATOR, Intel B760, 1700, ATX, 4 DDR5, HDMI, DP, 2.5G LAN, PCIe5, 3x M.2, Creator Hub
£204.99
incl. VAT
+ Free Shipping
Out of stock
SKU
SPTECH-AUMBB760APACRE
Asus PROART B760-CREATOR, Intel B760, 1700, ATX, 4 DDR5, HDMI, DP, 2.5G LAN, PCIe5, 3x M.2, Creator Hub
- Motherboard Type: Desktop
- Form Factor: ATX
- Socket: Intel 1700
- Chipset: Intel B760
- #Hide#DDR Type: DDR5
- CPU Support: Click here for CPU support
- RAM Technology: DDR5 (Dual Channel)
- RAM Slots: 4 x DIMM
- RAM Speeds: Up to 7800+(OC)
- Maximum Memory: 192GB
- Graphics: Integrated Graphics*
*Graphics specifications may vary between CPU types - Graphics Ports: 1 x HDMI
1 x DisplayPort - PCI/PCI Express: 1 x PCIe 5.0/4.0/3.0 x16
1 x PCIe 4.0 x16 (supports x4 mode)
1 x PCIe 3.0 x1 - Storage: 4 x SATA III
1 x M.2 (2242/2260/2280/22110) - PCIe 4.0 x4
1 x M.2 (2242/2260/2280/22110) - PCIe 3.0 x4
1 x M.2 (2242/2260/2280/22110) - PCIe 4.0 x4 - RAID: Intel Rapid Storage Technology supports SATA RAID 0/1/5/10
- Wireless: -
- LAN: 2.5GB LAN & GB LAN
- Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
- USB Ports Supported: Rear:
4 x USB 3.2 Gen1 Type-A ports
4 x USB 2.0 ports
Front:
1 x USB 3.2 Gen1 header - supports 2 USB 3.2 Gen1 ports
2 x USB 2.0 headers - supports 4 USB 2.0 ports
1 x USB 3.2 Gen2x2 Type-C connector (60W PD/QC4+) - Back Panel I/O Ports: 1 x USB 3.2 Gen2 Type-C
4 x USB 3.2 Gen1 Type-A
4 x USB 2.0
1 x DisplayPort
1 x HDMI
1 x Realtek 2.5Gb Ethernet
1 x Intel 1Gb Ethernet
5 x Audio jacks
1 x Optical S/PDIF out - Internal I/O Connectors: 1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
1 x 4-pin AIO Pump
4 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
1 x 4-pin +12V
1 x 6-pin PD_12V
3 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen2x2 Type-C (60W PD/QC4+)
1 x USB 3.2 Gen1 - .: 2 x USB 2.0
3 x Addressable Gen2
1 x AURA RGB
1 x Clear CMOS
1 x COM Port
1 x Front Panel Audio
1 x M.2 (Key E)
1 x SPI TPM (14-1pin)
1 x 20-5 pin System Panel
1 x Thermal Sensor
1 x Thunderbolt - Accessories: 2 x SATA 6Gb/s cables
2 x M.2 Rubber packages
1 x Screw package for M.2 Key E
1 x ProArt ruler
1 x Q-connector
1 x ACC Express Activation Key Card
1 x User guide - Additional Features: See Overview
- Package Type: Retail
- Package Weight: 2.1000 kg
- Warranty: 3 Years
- #Hide#M.2 Slot(s): Yes (M.2)
- #Hide#No. LAN Ports: 2 x LAN
- #Hide#Max LAN Speed: 2.5GB LAN
| Specifications | ProArt B760-Creator is an enhanced motherboard designed for content creation workloads like virtual production, 3D rendering and 4K/8K video editing. It unleashes the performance of 13th & 12th Gen Intel Core processors through robust power delivery and cooling design, and its comprehensive connectivity includes three M.2 slots, 2.5 Gb and 1 Gb Ethernet, a USB 3.2 Gen 2x2 Type-C front-panel connector with 60W Quick Charge 4+ and a Thunderbolt 4 header.
Comprehensive Connectivity PCIe 5.0 for graphics cards The 13th Gen Intel processors offer PCIe 5.0 support, which offers twice the data transfer speed of PCIe 4.0 , making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits such as improved signal integrity, backward-compatible CEM connectors for add-in cards and backward compatibility with previous PCIe versions. USB 3.2 Gen 2x2 Type-C front-panel connector with Quick Charge 4+ USB 3.2 Gen 2x2 boosts data transfers with speeds of up to 20 Gbps. This header also features Quick Charge 4+ technology that can quickly charge your pen display, tablet or mobile phone up to 60 watts by using a PCIe power supply cable plugged into the nearby 6-pin connector. Thunderbolt / USB4 support The ProArt B760-Creator features Thunderbolt 4 support via an on-board header. With an Intel-certified ASUS ThunderboltEX 4 add-on card*, this ProArt motherboard can enable bi-directional speeds of up to 40 Gbps on a single cable. Additionally, this card has a daisy-chain function for multiscreen connections, and it supports a display resolution of up to 8K. It can also provide up to 100 watts of power to fast-charge devices. Networking Dual Ethernet 2.5 Gb and 1 Gb Ethernet ports provide fast data transfers simultaneously for internet access and local network-attached storage (NAS), allowing for improved data organization and security. ProArt B760-Creator features an M.2 slot (key E) M.2 Slot (Key E) The ProArt B760-Creator features an M.2 slot (key E) which can support type 2230 WiFi/Bluetooth modules*. *WiFi/BT modules are sold separately. PCIe 4.0 M.2 Storage The ProArt B760-Creator features three onboard M.2 slots, two of which are PCIe 4.0-ready for blistering speeds of up to 64 Gbps, while the third offers massive transfers of up to 32 Gbps through its PCIe 3.0 interface, enabling quicker boot-up and app load times with operating system or application drives. Robust power design 12+1 teamed power stages Rated for 50 amps and combining high-side and low-side MOSFETs and drivers into a single package, these stages deliver power and efficiency tailored for the demands of the latest 13th & 12th Gen Intel Core processors. Chokes & capacitors Superior alloy chokes and durable capacitors are engineered to resist extreme temperatures, providing a higher level of performance than the industry standard. Digi+ power control The ASUS Digi+ voltage-regulator module (VRM) is one of the finest in the industry and ensures ultra-smooth power delivery to the CPU. ProCool power connectors These components are built to tight specifications to ensure flush contact with PSU power lines. The resulting lower impedance helps to prevent hotspots and connector failure. Memory Unleash DDR5 with AEMP II ASUS Enhanced Memory Profile II is an exclusive firmware feature for PMIC-restricted memory modules. AEMP II is based on a CPU and memory module's ability to train the memory chips on your kit, and it presents an optimized clock speed that can effortlessly unleash performance._ Built through a flexible training method, AEMP II makes it easy to not only tune the memory above baseline settings but also maintain the stability of system operation, whether getting the most out of an entry-level module or priming a high-speed kit for ultimate performance. Flexible Air- and Liquid-Cooling Controls ASUS Fan Xpert 4 software provides comprehensive control over fans and all-in-one (AIO) coolers. Whether cooling with air or water, an Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode that reduces all fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans and AIO coolers can also be controlled via the UEFI BIOS. Two-Way AI Noise Cancelation As working from home has become the new normal for many users, clear online communication is more critical than ever. Two-Way AI Noise Cancelation is an audio utility that leverages a massive deep-learning database to reduce background noise from the microphone* and incoming audio. Distracting keyboard clatter, mouse clicks and other ambient noises are smartly pared back, so your calls and video conferences with partners and clients can be crystal clear. Customize your personal settings ProArt Creator Hub is your personal portal to monitor your PC status, personalize settings or optimize your workflow. It features an intuitive overview dashboard, quickly switching fan profiles and makes short work of switching between different performance modes. Hardware monitoring This section offers detailed info on your system status and connected ProArt devices. Fan profile setting Four performance presets can quickly adjust the balance of noise and cooling for all fans connected to the motherboard. Task grouping To streamline your workflow, you can select up to eight apps to be launched at the same time from the desktop. Network optimization CreationFirst is a network optimization application that offers five network modes to optimize bandwidth efficiency for different tasks. Security control and remote management Advanced security management functions from ASUS Control Center Express protects the systems and confidential data in your creative studio. USB port management Enable or disable the USB port or set it to Read-Only to prevent data leaks. Software blacklist For added security, a software blacklist is available to help prevent the use of high-risk applications. Registry Editor on/off Remotely disable the Registry Editor on client devices to prevent unauthorized changes to system configurations. Trusted stability ProArt B760-Creator is engineered and rigorously tested to offer superior quality, stability and compatibility to ensure that it empowers creativity for years to come.
|
|---|
