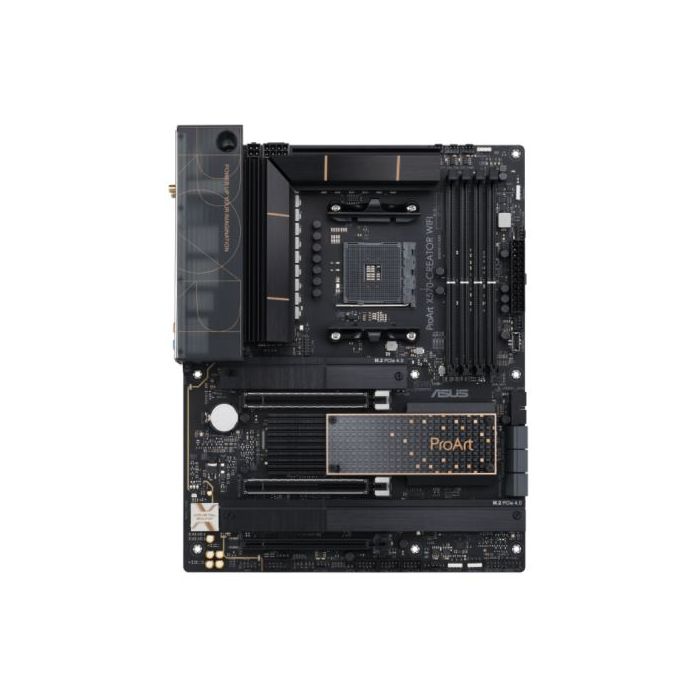

Asus ProArt X570-CREATOR WIFI, AMD X570, AM4, ATX, 4 DDR4, HDMI, DP, Thunderbolt 4, Wi-Fi, 10GB & 2.5GB LAN, 3x M.2

Name: Asus ProArt X570-CREATOR WIFI, AMD X570, AM4, ATX, 4 DDR4, HDMI, DP, Thunderbolt 4, Wi-Fi, 10GB & 2.5GB LAN, 3x M.2
Brand: Asus ProArt X570-CREATOR WIFI, AMD X570, AM4, ATX, 4 DDR4, HDMI, DP, Thunderbolt 4, Wi-Fi, 10GB & 2.5GB LAN, 3x M.2
SKU: SPTECH-AUMBX570PACREWIFI-WS
Price: 383.99 GBP
Availability: OutOfStock

Be the first to review this product

£383.99 incl. VAT + Free Shipping

Out of stock

SKU

SPTECH-AUMBX570PACREWIFI-WS

Asus ProArt X570-CREATOR WIFI, AMD X570, AM4, ATX, 4 DDR4, HDMI, DP, Thunderbolt 4, Wi-Fi, 10GB & 2.5GB LAN, 3x M.2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Motherboard Type: Desktop
Form Factor: ATX
Socket: AMD AM4
Chipset: AMD X570
#Hide#DDR Type: DDR4
CPU Support: Click here for CPU support
RAM Technology: DDR4 (Dual Channel)
RAM Slots: 4 x DIMM
RAM Speeds: Up to 4800(OC)
Maximum Memory: 128GB
Graphics: Integrated graphics
Graphics Ports: 1 x HDMI 2.1
1 x DisplayPort (Input only)
2 x Thunderbolt 4 USB Type-C support DisplayPort 1.2/1.4 and Thunderbolt video outputs
PCI/PCI Express: "Ryzen 5000 & 3000 CPUs:
2 x PCIe 4.0 x16 (x16 or dual x8)

Ryzen 5000 G, 4000 G and 2000 CPUs:
2 x PCIe 3.0 x16 (x16 or dual x8)

Ryzen 2000 G and 3000 G CPUs:
1 x PCIe 3.0 x16 (x8 mode)

AMD X570 Chipset:
1 x PCIe 4.0 x16 slot (supports x4 mode)"
Storage: 6 x SATA III
2 x M.2 (2242/2260/2280/22110) - SATA & PCIe
1 x M.2 (2242/2260/2280) - PCIe
RAID: "RAID 0, 1, 10"
Wireless: Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.2
LAN: 10GB LAN & 2.5GB LAN
Audio: Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
USB Ports Supported: "2 x Thunderbolt 4 USB Type-C (at back)
4 x USB 3.2 Gen2 Type-A (at back)
6 x USB 3.2 Gen1 Type-A (4 at back, 2 at mid-board)
6 x USB 2.0 (at mid-board)
1 x USB 3.2 Gen2 connector Type-C (at mid-board)"
Back Panel I/O Ports: 2 x Thunderbolt 4 USB Type-C
4 x USB 3.2 Gen2 Type-A
4 x USB 3.2 Gen 1 Type-A
1 x DisplayPort (Input only)
1 x HDMI
1 x Intel I225-V 2.5Gb
1 x Marvell AQtion AQC113CS 10Gb
1 x ASUS Wi-Fi Module
5 x Audio jacks
1 x BIOS FlashBack button
Internal I/O Connectors: 1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
1 x 4-pin AIO Pump
1 x W_PUMP+
4 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
1 x 4-pin +12V
3 x M.2 (Key M)
6 x SATA 6Gb/s
1 x USB 3.2 Gen2 Type-C
1 x USB 3.2 Gen1
.: 3 x USB 2.0
3 x AURA Addressable Gen2
1 x AURA RGB
1 x Clear CMOS
1 x COM Port
1 x Front Audio
1 x SPI TPM (14-1pin)
1 x 20-3 pin System Panel
1 x Thermal Sensor
Accessories: 4 x SATA 6Gb/s cables
1 x DP to DP cable for Thunderbolt 4
1 x ASUS Wi-Fi moving antennas
2 x M.2 Rubber Packages
1 x M.2 SSD screw package
1 x Q-connector
1 x Support DVD
1 x ACC Express Activation Key Card
1 x User manual
Additional Features: See Overview
Package Type: Retail
Package Weight: 2.4500 kg
Warranty: See Overview
#Hide#M.2 Slot(s): Yes (M.2)
#Hide#No. LAN Ports: 2 x LAN
#Hide#Max LAN Speed: 10GB LAN
#Hide#Wi-Fi: Yes (Wi-Fi)

More Information

More Information
Specifications	AMD X570 Ryzen AM4 ATX content creation motherboard with PCIe® 4.0, passive PCH cooling design, dual Thunderbolt™ 4 Type-C ports, 10 Gb & 2.5 Gb onboard Ethernet, WiFi 6E, three M.2 with heatsinks, USB 3.2 Gen 2 and advanced security management AM4 socket: Ready for AMD Ryzen™ 5000 Series / 5000 G-Series / 4000 G-Series / 3000 Series / 3000 G-Series / 2000 Series / 2000 G-Series CPUs Robust performance: 14+2 power stages, ProCool II power connector, high-quality alloy chokes and durable capacitors Comprehensive thermal design: Massive VRM heatsink, passive chipset heatsink and M.2 aluminum heatsinks Extensive connectivity: Dual Thunderbolt™ 4 Type-C ports, 10 Gb & 2.5 Gb onboard Ethernet, WiFi 6E, three PCIe® 4.0 M.2 slots and USB 3.2 Gen 2 ports Advanced security: USB port management, software blacklisting and Regedit on/off controls via ASUS Control Center Express ProArt gives you more: Two-Way AI Noise Cancelation for clear online communication, and ProArt Creator Hub with CreationFirst for one-stop system control Trusted stability: Tested for 24/7 operation, validated for extensive compatibility, and equipped with SafeSlot for enhanced durability Performance to Create ProArt X570-Creator WiFi perfects the art of performance, empowering creativity and maximizing the computing power of the latest AMD Ryzen™ processors with powerful hardware and software, efficient cooling and lightning-fast connectivity, including Thunderbolt™ 4, 10 Gb and 2.5 Gb onboard Ethernet, and WiFi 6E. Extensive Connectivity A comprehensive array of powerful I/O ports — including two Thunderbolt™ 4 ports plus 10 Gb and 2.5 Gb Ethernet ports— enables quick data transfers and extensive storage options with flexible, hassle-free connectivity. Unthrottled Performance ProArt X570-Creator WiFi boasts an optimized power design layout and the memory performance needed to handle the prodigious power of the latest AMD Ryzen processors, enabling the most demanding multithreaded tasks such as 3D or video rendering and software compiling. Comprehensive Cooling Design Maintaining system stability under heavy loads is of paramount importance, so ProArt X570-Creator WiFi employs passive chipset cooling with large VRM and chipset heatsinks that strike the right balance between surface area and mass. Integrated premium components and multiple fan headers are also vital design elements that provide the best foundation for content creation systems. Perfect for Content Creation ProArt exclusive software utilities deliver intuitive system monitoring, audio and networking enhancements that enable a smoother workflow. Trusted Stability ProArt X570-Creator WiFi is engineered and rigorously tested to offer superior quality, stability and compatibility to ensure that it empowers creativity for years to come. Click here for full details
