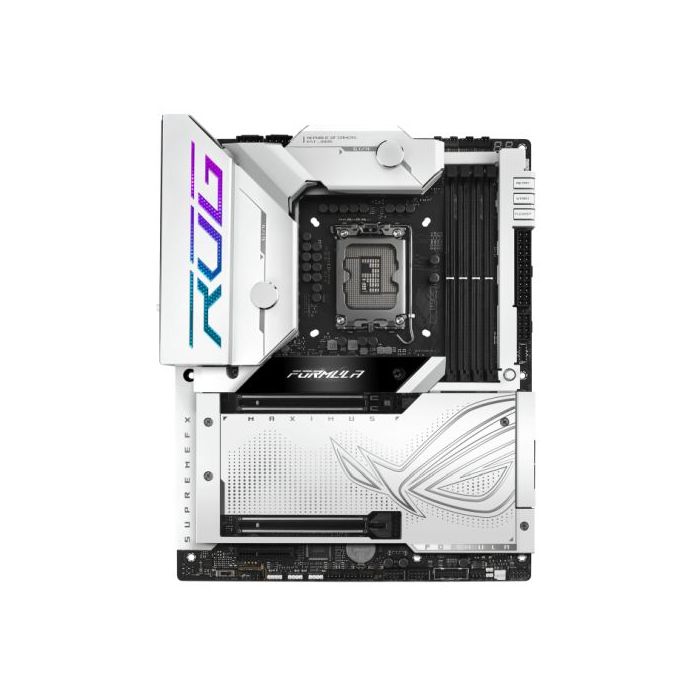

Asus ROG MAXIMUS Z790 FORMULA, Intel Z790, 1700, ATX, 4 DDR5, HDMI, Thunderbolt 4, Wi-Fi 7, 5G LAN, PCIe5, RGB, OLED Panel, 5x M.2

Name: Asus ROG MAXIMUS Z790 FORMULA, Intel Z790, 1700, ATX, 4 DDR5, HDMI, Thunderbolt 4, Wi-Fi 7, 5G LAN, PCIe5, RGB, OLED Panel, 5x M.2
Brand: Asus ROG MAXIMUS Z790 FORMULA, Intel Z790, 1700, ATX, 4 DDR5, HDMI, Thunderbolt 4, Wi-Fi 7, 5G LAN, PCIe5, RGB, OLED Panel, 5x M.2
SKU: SPTECH-AUMBZ790MAXFORM
Price: 727.99 GBP
Availability: OutOfStock

Be the first to review this product

£727.99 incl. VAT + Free Shipping

Out of stock

SKU

SPTECH-AUMBZ790MAXFORM

Asus ROG MAXIMUS Z790 FORMULA, Intel Z790, 1700, ATX, 4 DDR5, HDMI, Thunderbolt 4, Wi-Fi 7, 5G LAN, PCIe5, RGB, OLED Panel, 5x M.2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Motherboard Type: Desktop
Form Factor: ATX
Socket: Intel 1700
Chipset: Intel Z790
#Hide#DDR Type: DDR5
CPU Support: Click here for CPU support
RAM Technology: "DDR5, Dual Channel
Supports Intel Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile II (AEMP II)"
RAM Slots: 4 x DIMM
RAM Speeds: Up to 8000+(OC)
Maximum Memory: 192GB
Graphics: Integrated Graphics*
*Graphics specifications may vary between CPU types
Graphics Ports: 1 x HDMI
2 x Intel Thunderbolt 4 (USB Type-C) support DisplayPort and Thunderbolt video outputs
PCI/PCI Express: 2 x PCIe 5.0 x16 (x16 or x8/x8 modes)
1 x PCIe 4.0 x4
Storage: 4 x SATA III
1 x M.2 (2242/2260/2280/22110) - PCIe 5.0 x4
1 x M.2 (2242/2260/2280) - PCIe 4.0 x4
1 x M.2 (2242/2260/2280) - PCIe 4.0 x4
1 x M.2 (2280) - PCIe 4.0 x4
1 x M.2 (2280) - PCIe 4.0 x4
RAID: "Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10"
Wireless: "Intel Wi-Fi 7
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Support Wi-Fi 7 320MHz bandwidth, up to 5.76Gbps transfer rate.
Bluetooth v5.4 "
LAN: 5GB LAN
Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
USB Ports Supported: "Rear:
2 x Thunderbolt 4 (USB Type-C)
6 x USB 10Gbps (5 Type-A, 1 Type-C)
4 x USB 5Gbps (Type-A)

Front:
1 x USB 20Gbps (Type-C with up to 60W PD/QC4+)
4 x USB 5Gbps
4 x USB 2.0"
Back Panel I/O Ports: "2 x Thunderbolt 4 USB Type-C
6 x USB 10Gbps (5 Type-A, 1 Type-C)
4 x USB 5Gbps (Type-A)
1 x HDMI
1 x Wi-Fi module
1 x Realtek 5Gb Ethernet
5 x Gold-plated audio jacks
1 x Optical S/PDIF out
1 x BIOS FlashBack button
1 x Clear CMOS button "
Internal I/O Connectors: 1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
1 x 4-pin AIO Pump
4 x 4-pin Chassis Fan
1 x W_PUMP+
1 x 2-pin Water In
1 x 2-pin Water Out
1 x 3-pin Water Flow
1 x 24-pin main
2 x 8-pin +12V
1 x 8-pin PCIe
5 x M.2 slots (Key M)
.: 4 x SATA 6Gb/s ports
1 x USB 20Gbps (supports USB Type-C)
2 x USB 5Gbps
2 x USB 2.0
3 x Addressable Gen2
1 x Alteration PCIe mode switch
1 x Aura RGB
1 x CPU over voltage jumper
1 x FlexKey button
1 x Front panel audio
.: 1 x ReTry button
1 x Start button
1 x 10-1 pin system panel
1 x Thermal sensor
Accessories: 1 x ARGB RGB extension cable
2 x ROG weave SATA 6G cables
2 x SATA 6Gb/s cables
1 x DDR5 fan holder
1 x Thermal pad for M.2
1 x ASUS WiFi Q-Antenna
1 x Q-connector
3 x M.2 backplate Q-Latch packages
1 x ROG key chain
1 x ROG stickers
.: 1 x ROG VIP card
1 x M.2 rubber package
3 x M.2 backplate rubber packages
1 x USB drive with utilities and drivers
1 x Quick start guide
Additional Features: See Overview
Package Type: Retail
Package Weight: 4.5000 kg
Warranty: 3 Years
#Hide#M.2 Slot(s): Yes (M.2)
#Hide#No. LAN Ports: 1 x LAN
#Hide#Max LAN Speed: 5GB LAN
#Hide#Wi-Fi: Yes (Wi-Fi)
#Hide#RGB Lighting: Out of the box RGB lighting

More Information

More Information
Specifications	The ROG Maximus Z790 Formula is the ultimate motherboard to feature our head-turning Moonlight White aesthetic. Beneath this bold expression lies a powerhouse arsenal of features, including the exclusive HybridChill VRM cooling system ready to elevate 14th-gen Intel® processors, advanced DDR5 settings, a multitude of PCIe 5.0 slots for both graphics cards and storage, blistering Intel® Wi-Fi 7 networking and a full slate of customizable ARGB lightning to make your premium build truly stand out from the crowd. DDR5 - Max. 192GB, DIMM Flex, AEMP II WiFi 7 HybridChill 2" LiveDash OLED Panel - System info & customisable graphics AI Overclocking - Effortless performance boost AI Cooling II - One-click fan tuning 20+1+2 Power Stages - Teamed Power Solution DIY-Friendly Design Thunderbolt™ 4 AI Overclocking Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation. HybridChill The ASUS HybridChill water block leverages a fusion of passive and liquid cooling to achieve highly efficient VRM operation. Its copper water channels resist corrosion and offer excellent heat dissipation, while its threaded fittings use the G1/4” industry standard to ensure compatibility with a wide variety of custom cooling setups. WiFi 7 Next-gen WiFi 7* chipset introduces all-new ultrawide 320 MHz channel bandwidth in the 6 GHz band and 4096 QAM, delivering up to 2.4X ultra-fast WiFi speeds**. The revolutionary Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming, and industrial IoT. 5GB Ethernet Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Realtek 5 Gbps Ethernet. AI Cooling II Balance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then monitors CPU temperatures to dynamically adjust fans to optimal speeds. Two-Way AI Noise Cancelation This utility leverages a massive deep-learning database to reduce over 5 million types of background noise from incoming or outgoing audio, helping ensure crystal-clear communication in games or calls. AI Networking GameFirst is now integrated into Armoury Crate for an even better user experience. GameFirst optimizes networking performance by allocating bandwidth in real time, based on intelligent algorithms designed for various application customizable usage scenarios and corresponding learning algorithms. The latest update includes dedicated support for NVIDIA® GeForce NOW to ensure the lowest latency possible during intense game streaming cloud gaming sessions. To provide a better user’s experience, GameFirst is now integrated into Armoury Crate. LiveDash OLED The ROG Maximus Z790 Formula includes LiveDash, a built-in 2-inch OLED panel that shows useful information and features customizable graphics. During the power-on, self-test (POST) phase, the OLED shows key stats in simple language using traditional POST codes. In normal operation, the panel can be programmed to show CPU frequency, device temperatures, fan speeds or water-cooling information. You can also personalize the default OLED GIF with a preferred image or animation. Hardware monitor Formula exclusive BIOS update Customization content
