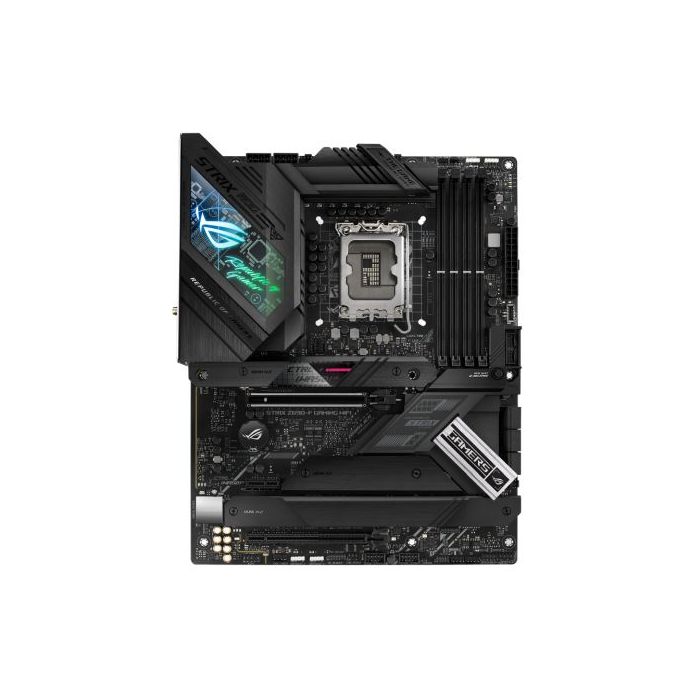

Asus ROG STRIX Z690-F GAMING WIFI, Intel Z690, 1700, ATX, 4 DDR5, HDMI, DP, Wi-Fi, 2.5G LAN, PCIe5, RGB, 4x M.2

Name: Asus ROG STRIX Z690-F GAMING WIFI, Intel Z690, 1700, ATX, 4 DDR5, HDMI, DP, Wi-Fi, 2.5G LAN, PCIe5, RGB, 4x M.2
Brand: Asus ROG STRIX Z690-F GAMING WIFI, Intel Z690, 1700, ATX, 4 DDR5, HDMI, DP, Wi-Fi, 2.5G LAN, PCIe5, RGB, 4x M.2
SKU: SPTECH-AUMBZ690FSTWI
Price: 431.99 GBP
Availability: OutOfStock

Be the first to review this product

£431.99 incl. VAT + Free Shipping

Out of stock

SKU

SPTECH-AUMBZ690FSTWI

Asus ROG STRIX Z690-F GAMING WIFI, Intel Z690, 1700, ATX, 4 DDR5, HDMI, DP, Wi-Fi, 2.5G LAN, PCIe5, RGB, 4x M.2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Motherboard Type: Desktop
Form Factor: ATX
Socket: Intel 1700
Chipset: Intel Z690
#Hide#DDR Type: DDR5
CPU Support: Click here for CPU support
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 4 x DIMM
RAM Speeds: Up to 6400(OC
Maximum Memory: 128GB
Graphics: Integrated Graphics*

*Graphics specifications may vary between CPU types
Graphics Ports: 1 x HDMI
1 x DisplayPort
PCI/PCI Express: 1 x PCIe 5.0 x16
1 x PCIe 3.0 x16
1 x PCIe 3.0 x1
Storage: 6 x SATA III
2 x M.2 (2242/2260/2280/22110) - PCIe
1 x M.2 (2242/2260/2280) - PCIe
1 x M.2 (2242/2260/2280) - SATA & PCIe
RAID: "Intel Rapid Storage supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10"
Wireless: Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band
Bluetooth v5.2 hardware ready
LAN: 2.5GB LAN
Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
USB Ports Supported: "2 x USB 3.2 Gen2x2 Type-C (at back)
1 x USB 3.2 Gen2 Type-C (at back)
2 x USB 3.2 Gen2 Type-A (at back)
6 x USB 3.2 Gen1 Type-A (4 at back, 2 at mid-board)
6 x USB 2.0 (2 at back, 4 at mid-board)
1 x USB 3.2 Gen2x2 Type-C front panel connector"
Back Panel I/O Ports: "1 x USB 3.2 Gen2x2 Type-C
3 x USB 3.2 Gen2 (2 Type-A, 1 Type-C)
4 x USB 3.2 Gen1 Type-A
2 x USB 2.0
1 x HDMI
1 x DisplayPort
1 x Wi-Fi Module
1 x Intel I225-V 2.5Gb Ethernet
5 x Gold-plated audio jacks
1 x Optical S/PDIF out
1 x BIOS FlashBack button
1 x Clear CMOS button "
Internal I/O Connectors: 1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
1 x 4-pin AIO Pump
5 x 4-pin Chassis Fan
1 x 24-pin Main
2 x 8-pin +12V
4 x M.2 (Key M)
6 x SATA 6Gb/s
1 x USB 3.2 Gen2x2 Type-C
1 x USB 3.2 Gen1
2 x USB 2.0
3 x AURA Addressable Gen2
.: 1 x AURA RGB
1 x BMC
1 x CPU Over Voltage jumper
1 x Front Audio
1 x SPI TPM (14-1pin)
1 x 20-3 pin System Panel
1 x Thermal Sensor
1 x Thunderbolt
Accessories: 4 x SATA 6Gb/s cables
1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas
1 x M.2 Q-Latch package
1 x M.2 Q-Latch package for M.2 backplate
2 x M.2 Rubber Packages
1 x ROG key chain
1 x cable tie
1 x ROG STRIX stickers
1 x ROG STRIX thank you card
1 x Support DVD
1 x User manual
Additional Features: See Overview
Package Type: Retail
Package Weight: 2.2750 kg
Warranty: 3 Years
#Hide#M.2 Slot(s): Yes (M.2)
#Hide#RGB Lighting: Yes (RGB)
#Hide#No. LAN Ports: 1 x LAN
#Hide#Max LAN Speed: 2.5GB LAN
#Hide#Wi-Fi: Yes (Wi-Fi)

More Information

More Information
Specifications	IntelZ690 LGA 1700 ATX motherboard with PCIe5.0, 16+1 power stages, DDR5 memory support, Two-Way AI Noise Cancelation, AI Overclocking, AI Cooling, AI Networking, WiFi 6E (802.11ax), Intel2.5 Gb Ethernet, four M.2 slots with heatsinks, PCIe 4.0 NVMeSSD support, M.2 backplate, PCIeSlot Q-Release, USB 3.2 Gen 2x2 Type-C, SATA and Aura Sync RGB lighting Ready for 12th Gen Intel Core, Pentium Gold and Celeron processors Optimal Power Solution: 16+1 power stages with 8+8 ProCool II power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors Optimized Thermal Design: Integrated I/O cover and VRM heatsinks with high conductivity thermal pad, L-shaped heatpipe, four onboard M.2 heatsinks and M.2 backplate for the M.2_1 slot High-performance Networking: On-board Intel WiFi 6E (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard Best Gaming Connectivity: Supports HDMI 2.1 and DisplayPort 1.4 output, four M.2 slots, as well as USB 3.2 Gen 2x2 Type-C Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance DIY Friendly Design: PCIe Slot Q-Release, M.2 Q-Latch, ROG Reusable Cable Organizer, pre-mounted I/O shield, BIOS FlashBack button, and Clr CMOS button Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including an RGB header and three addressable Gen 2 headers Industry-leading Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS Sound Unbound and Sonic Studio III Renowned Software: Bundled AIDA64 Extreme 60 days free trial version and intuitive UEFI BIOS dashboard with integrated MemTest86 ROG STRIX Z690-F GAMING WIFI ROG Strix Z690-F Gaming WiFi offers premium-grade power delivery and cooling to unleash the full force of 12th Gen Intel Core processors. Framerates and load times can be boosted even further by all-new support for DDR5 memory and PCIe 5.0 video cards. Plus, ASUS-exclusive intelligent controls help optimize PC settings, while onboard WiFi 6E can bring lightning-fast data transfers to an endless variety of scenarios. On top of all that, DIY-friendly innovations help simplify the PC building process to get to you up and running smoothly. Power Design POWER STAGES 16+1 power stages combine high-side and low-side MOSFETS and drivers into a single package, delivering power and efficiency that the latest Intel processors can take full advantage of. ALLOY CHOKES AND DURABLE CAPACITORS High-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards. 8+8 PIN PROCOOL II POWER CONNECTOR ASUS ProCool II connectors are built to tight specifications to ensure full contact with power supply cable wiring. A metal sheath improves heat dissipation, and low electrical impedance helps prevent hotspots and bolsters reliability. DIGI+ POWER CONTROL The Digi+ voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultrasmooth and clean power delivery to the CPU. SIX-LAYER PCB Multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom. Leading Connectivity PCIe Performance With four strategically placed M.2 slots, ROG Strix Z690-F Gaming WiFi leverages mighty CPU and chipset bandwidth to deliver lightning-fast PCIe 4.0 data transfers, Intel NVM Express RAID, and high-capacity drive options that blaze past traditional SATA-based SSDs. UNDENIABLY ROG STRIX A specially illuminated acrylic display on the I/O cover gives the illusion that the circuit board is visible beneath an RGB ROG logo. Meanwhile, touches of brushed metal throughout the motherboard, plus the stitched fabric of the ROG Strix Cable organizer, deliver a variety of carefully crafted surface textures. Last but not least, a special lighting pattern built into the motherboard finishes off a colorful tour of the ROG worldview. UEFI BIOS The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans. 5-WAY OPTIMIZATION The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
