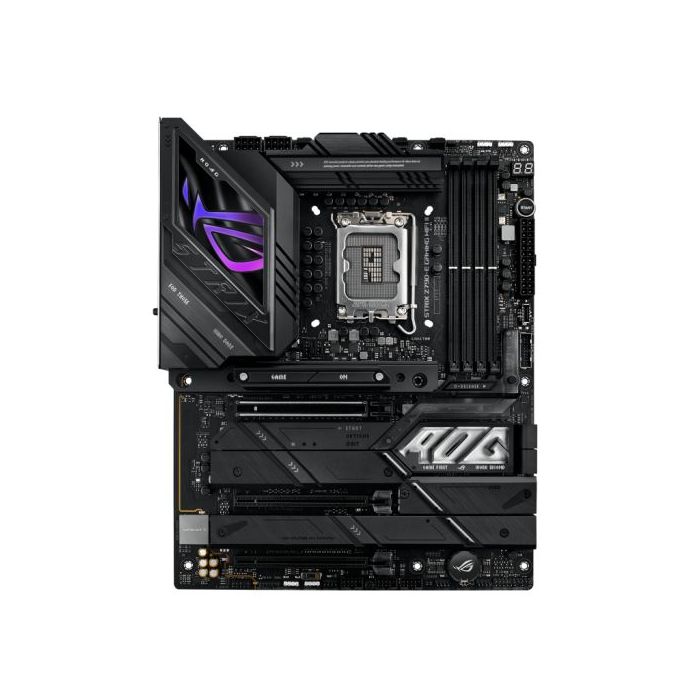

Asus ROG STRIX Z790-E GAMING WIFI II, Intel Z790, 1700, ATX, 4 DDR5, HDMI, DP, Wi-Fi 7, 2.5G LAN, PCIe5, RGB, 5x M.2
£359.99
incl. VAT
+ Free Shipping
Out of stock
SKU
SPTECH-AUMBZ790ESTWI-II
Asus ROG STRIX Z790-E GAMING WIFI II, Intel Z790, 1700, ATX, 4 DDR5, HDMI, DP, Wi-Fi 7, 2.5G LAN, PCIe5, RGB, 5x M.2
- Motherboard Type: Desktop
- Form Factor: ATX
- Socket: Intel 1700
- Chipset: Intel Z790
- #Hide#DDR Type: DDR5
- CPU Support: Click here for CPU support
- RAM Technology: "DDR5, Dual Channel
Supports Intel Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile II (AEMP II)
Supports DIMM Flex
OptiMem II" - RAM Slots: 4 x DIMM
- RAM Speeds: Up to 8000+(OC)
- Maximum Memory: 192GB
- Graphics: Integrated Graphics*
*Graphics specifications may vary between CPU types - Graphics Ports: 1 x HDMI
1 x DisplayPort - PCI/PCI Express: 1 x PCIe 5.0 x16 (support x16 mode)
2 x PCIe 4.0 x16 (support x4 mode) - Storage: 4 x SATA III
1 x M.2 (2242/2260/2280/22110) - PCIe 5.0 x4
1 x M.2 (2242/2260/2280) - PCIe 4.0 x4
1 x M.2 (2280) - PCIe 4.0 x4
1 x M.2 (2280) - PCIe 4.0 x4
1 x M.2 (2242/2260/2280) - SATA & PCIe 4.0 x4 - RAID: "Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10"
- Wireless: "Intel Wi-Fi 7
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Support Wi-Fi 7 160MHz bandwidth, up to 2.4Gbps transfer rate.
Bluetooth v5.4" - LAN: 2.5GB LAN
- Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- USB Ports Supported: "Rear:
1 x USB 20Gbps Type-C
11 x USB 10Gbps (10 Type-A, 1 Type-C)
Front:
1 x USB 20Gbps Type-C with up to 30W PD Fast-charge
4 x USB 5Gbps
6 x USB 2.0" - Back Panel I/O Ports: "1 x USB 20Gbps Type-C
11 x USB 10Gbps (10 Type-A, 1 Type-C)
1 x DisplayPort
1 x HDMI
1 x Wi-Fi Module
1 x Intel 2.5Gb Ethernet
5 x Gold-plated audio jacks
1 x Optical S/PDIF out
1 x BIOS FlashBack button
1 x Clear CMOS button" - Internal I/O Connectors: 1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
1 x 4-pin AIO Pump
5 x 4-pin Chassis Fan
1 x 24-pin Main
2 x 8-pin +12V
5 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 20Gbps Type-C (30W PD Fast-charge)
2 x USB 5Gbps
3 x USB 2.0
3 x Addressable Gen2 - .: 1 x Alternation PCIe Mode Switch
1 x AURA RGB
1 x CPU over voltage jumper
1 x Front panel audio
1 x Start button
1 x 20-3 pin System Panel
1 x Thermal Sensor
1 x Thunderbolt (USB4) - Accessories: 2 x SATA 6Gb/s cables
1 x Thermal pad for M.2
1 x ASUS Wi-Fi Q-Antenna
1 x Cable ties package
1 x M.2 backplate Q-Latch package
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
2 x M.2 Rubber Packages
1 x M.2 backplate Rubber Package - Additional Features: See Overview
- Package Type: Retail
- Package Weight: 2.8000 kg
- Warranty: 3 Years
- #Hide#M.2 Slot(s): Yes (M.2)
- #Hide#No. LAN Ports: 1 x LAN
- #Hide#Max LAN Speed: 2.5GB LAN
- #Hide#Wi-Fi: Yes (Wi-Fi)
- #Hide#RGB Lighting: Out of the box RGB lighting
| Specifications | Style and substance come together like never before in the feature-packed ROG Strix Z790-E II.From its vibrant multi-layered I/O shroud to its stacks of VRM cooling, it is a conversation piece that also delivers enhanced DDR5 performance, ample PCIe 5.0 slots and the DIY-friendly Q-Design feature set that makes building and upgrading a breeze.
AI Overclocking Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation. DDR5 Domination ROG has a long legacy of flexing the fastest memory performance, and DDR5 is no outlier. Thanks to improved signal routing, now enthusiast-grade kits have been driven far beyond the 8 GT/s mark on the Strix Z790-E II, and who knows how far future DIMMs can go? Seasoned veterans can test their mettle by tinkering with the extensive array of tuning options in the UEFI. WiFi 7 With Multi-Link Operation (MLO), WiFi 7 can outperform WiFi 6E to deliver faster speeds, higher reliability and increased data transfer efficiency. Intel 2.5G Ethernet Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel® 2.5 Gbps Ethernet. USB 20Gbps The Strix Z790-E II comes loaded with two USB 20Gbps Type-C® connectors for speedy data transfers up to 20Gbps. One is a port on the rear I/O; the other can be attached to the chassis front panel and it also features Power Delivery (PD) 3.0 technology to quickly charge devices up to 30W. Outshine The Competition ROG Strix motherboards feature ASUS Aura technology, enabling full lighting control and a variety of presets for both onboard RGB LEDs and third-party accessories. Effects can be easily synced across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look. AI Cooling II Balance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then monitors CPU temperatures to dynamically adjust fans to optimal speeds. Game First GameFirst is now integrated into Armoury Crate for an even better user experience. GameFirst optimizes networking performance by allocating bandwidth in real time, based on intelligent algorithms designed for various application customizable usage scenarios and corresponding learning algorithms. The latest update includes dedicated support for NVIDIA® GeForce NOW to ensure the lowest latency possible during intense game streamingcloud gaming sessions. To provide a better user’s experience, GameFirst is now integrated into Armoury Crate.
|
|---|
