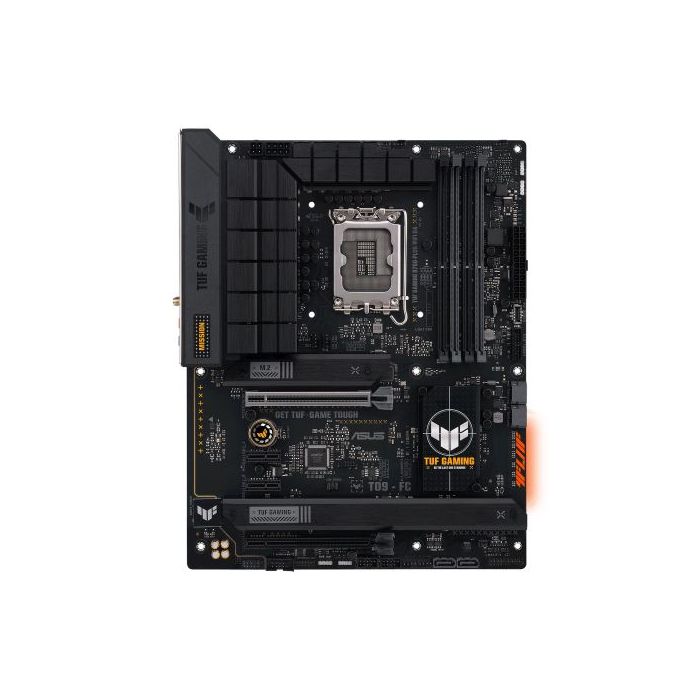

Asus TUF GAMING B760-PLUS WIFI D4, Intel B760, 1700, ATX, 4 DDR4, HDMI, DP, Wi-Fi 6, 2.5G LAN, PCIe5, 3x M.2, RGB

Name: Asus TUF GAMING B760-PLUS WIFI D4, Intel B760, 1700, ATX, 4 DDR4, HDMI, DP, Wi-Fi 6, 2.5G LAN, PCIe5, 3x M.2, RGB
Brand: Asus TUF GAMING B760-PLUS WIFI D4, Intel B760, 1700, ATX, 4 DDR4, HDMI, DP, Wi-Fi 6, 2.5G LAN, PCIe5, 3x M.2, RGB
SKU: SPTECH-AUMBB760PLTUFWID4V2
Price: 181.99 GBP
Availability: OutOfStock

Be the first to review this product

£181.99 incl. VAT + Free Shipping

Out of stock

SKU

SPTECH-AUMBB760PLTUFWID4V2

Asus TUF GAMING B760-PLUS WIFI D4, Intel B760, 1700, ATX, 4 DDR4, HDMI, DP, Wi-Fi 6, 2.5G LAN, PCIe5, 3x M.2, RGB

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Motherboard Type: Desktop
Form Factor: ATX
Socket: Intel 1700
Chipset: Intel B760
#Hide#DDR Type: DDR4
CPU Support: Click here for CPU support
RAM Technology: DDR4 (Dual Channel)
RAM Slots: 4 x DIMM
RAM Speeds: Up to 5333(OC)
Maximum Memory: 128GB
Graphics: Integrated Graphics*

*Graphics specifications may vary between CPU types
Graphics Ports: 1 x HDMI
1 x DisplayPort
PCI/PCI Express: 1 x PCIe 5.0 x16
1 x PCIe 3.0 x16 (supports x4 mode)
2 x PCIe 3.0 x1
Storage: 4 x SATA III
1 x M.2 (2242/2260/2280) - PCIe
1 x M.2 (2242/2260/2280/22110) - PCIe
1 x M.2 (2242/2260/2280) - PCIe
RAID: Intel Rapid Storage Technology supports SATA RAID 0/1/5/10
Wireless: Wi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2
LAN: 2.5GB LAN
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
USB Ports Supported: "1 x USB 3.2 Gen2x2 Type-C (at back)
1 x USB 3.2 Gen2 Type-A (at back)
5 x USB 3.2 Gen1 Type-A (3 at back, 2 at mid-board)
5 x USB 2.0 (1 at back, 4 at mid-board)
1 x Front Panel Type-C USB 3.2 Gen2 Header"
Back Panel I/O Ports: 1 x USB 3.2 Gen2x2 Type-C
1 x USB 3.2 Gen2 Type-A
3 x USB 3.2 Gen1 Type-A
1 x USB 2.0
1 x DisplayPort
1 x HDMI
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet
5 x Audio jacks
1 x Optical S/PDIF out
Internal I/O Connectors: 1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
1 x 4-pin AIO Pump
4 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
1 x 4-pin +12V
3 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen2 Type-C
1 x USB 3.2 Gen1
2 x USB 2.0
.: 3 x Addressable Gen2
1 x Aura RGB
1 x Clear CMOS
1 x COM Port
1 x Front Panel Audio
1 x 20-3 pin System Panel
1 x Thunderbolt (USB4)
Accessories: 2 x SATA 6Gb/s cables
1 x ASUS Wi-Fi moving antenna
1 x TUF Gaming sticker
2 x M.2 Rubber Packages
1 x Screw package for M.2 SSD
1 x TUF Certification card
1 x User guide
Additional Features: See Overview
Package Type: Retail
Package Weight: 2.0000 kg
Warranty: 3 Years
#Hide#M.2 Slot(s): Yes (M.2)
#Hide#No. LAN Ports: 1 x LAN
#Hide#Max LAN Speed: 2.5GB LAN
#Hide#Wi-Fi: Yes (Wi-Fi)
#Hide#RGB Lighting: Out of the box RGB lighting

More Information

More Information
Specifications	TUF GAMING B760-PLUS WIFI D4 takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates an embossed nameplate and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series. Power stages - 12+1 DrMOS power stages with enlarged VRM heatsinks PCIe - PCIe® 5.0 for graphics cards Memory module support - DDR4 memory module support Connectivity - USB 3.2 Gen 2x2 Type-C® and a front-panel USB 3.2 Gen 2 Type-C® header Ethernet - 2.5 Gb Ethernet WiFi 6 Two-Way AI Noise Cancelation Intelligent Control The TUF GAMING B760 motherboards pack flexible tools to tune every aspect of your system, enabling performance tweaks to expertly match the way you play. Rock-Solid Performance With upgraded power delivery and comprehensive cooling options to fuel the latest Intel CPUs, plus support for DDR4 memory and PCIe 4.0 storages, the TUF GAMING B760-PLUS WIFI D4 is the perfect foundation for your next Intel battle rig. Easy PC DIY The TUF GAMING line offers easy setup for all builders. The TUF GAMING Alliance ecosystem grants compatibility, while Armoury Crate has Fan Xpert 4, hardware info, Two-Way AI Noise Cancelation, RGB options and peripheral settings. This platform has intuitive tools to build and optimize dream rigs. Immersive Gaming TUF GAMING B760 motherboards provide a feature-packed high-performance gaming package, with ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS Gaming, and onboard RGB lighting that syncs with attached gear to personalize your gaming atmosphere. Click here for full product details
