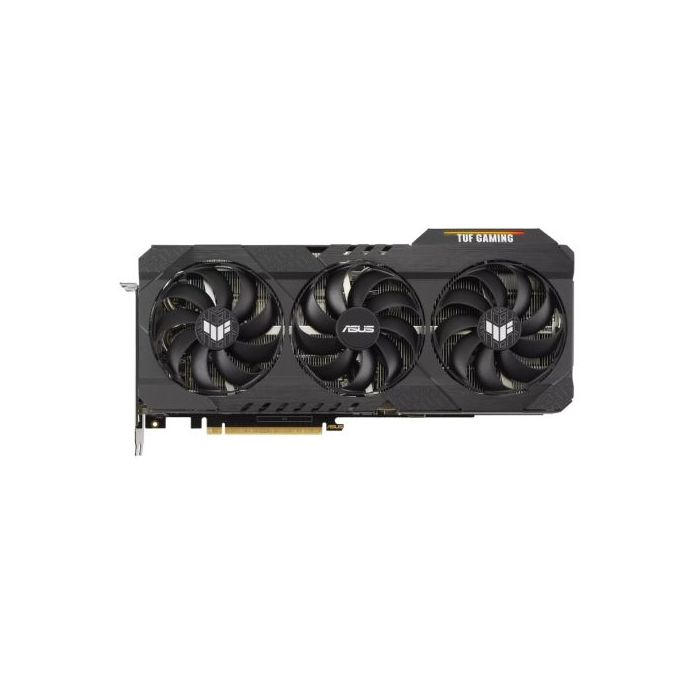

Asus TUF GAMING RTX3060 Ti OC, PCIe4, 8GB DDR6X, 2 HDMI, 3 DP, 1785MHz Clock, RGB Lighting, Overclocked
£485.99
incl. VAT
+ Free Shipping
Out of stock
SKU
SPTECH-NVRTX3060TIX8ASTUOCD6X
Asus TUF GAMING RTX3060 Ti OC, PCIe4, 8GB DDR6X, 2 HDMI, 3 DP, 1785MHz Clock, RGB Lighting, Overclocked
- Chipset Manufacturer: Nvidia
- Interface: PCI Express 4.0
- Graphics Chipset: Nvidia RTX 3060 Ti
- Memory Size: 8GB
- Memory Type: DDR6X
- Memory Interface: 256-bit
- Core Clock: OC mode : 1785 MHz (Boost Clock)
Default mode : 1755 MHz (Boost Clock) - Memory Clock: 19 Gbps
- CUDA Cores / Stream Processors: 4864 CUDA Cores
- Outputs: 2 x HDMI 2.1
3 x DisplayPort 1.4a - HDCP Support: Yes
- Resolution: Digital Max Resolution: 7680 x 4320
- DirectX Support: DirectX 12 Ultimate
- Multi-GPU Support: None
- Max Display Support: 4
- Cooling: Axial-tech fan design
Dual ball fan bearings - PSU Requirements: 750W or greater recommended
- Connectors Required: 2 x 8-pin PCIe power
- Software: ASUS GPU Tweak III & GeForce Game Ready
- Features: See Overview
- Dimensions: 302 x 142 x 54 mm
- Slot Size: 2.7 Slot
- Accessories: 1 x TUF certificate of Reliability
1 x Collection card
1 x Speedsetup Manual - Package Type: Retail
- #Hide#Lighting Effects: Yes
- #Hide#HDMI: Yes (HDMI)
- #Hide#DisplayPort: Yes (DisplayPort)
- Package Weight: 2.2000 kg
- Warranty: 3 Years
| Specifications | TUF Gaming GeForce RTXTM 3060 Ti OC Edition 8GB GDDR6X offers a buffed-up design that delivers chart-topping thermal performance.
Built TUF The TUF GAMING GeForce RTX™ 3060 Ti has been stripped down and built back up to provide more robust power and cooling. A new all-metal shroud houses three powerful axial-tech fans that utilize durable dual ball fan bearings. Fan rotation has been optimized for reduced turbulence, and a stop mode brings all three fans to a halt at low temps. Beneath, independent heatsinks for the GPU and memory keep thermals under tight control. Additional features, including TUF components, Auto-Extreme Technology, a new GPU bracket, and a backplate vent make the TUF a proper powerhouse. For builders looking for a new “old faithful”, this card has your back. Axial-Tech Upgrades TUF Gaming cards leverage our tried-and-true Axial-tech fan design, with three fans working in tandem to satisfy the thermal demands of NVIDIA’s new high-octane design. The fans rely on dual ball fan bearings to ensure consistent performance and increased longevity compared to sleeve bearings and other bearing types. MaxContact To get heat into the heatsink array efficiently, so that it can be whisked away by the powerful Axial-tech fans, we use a manufacturing process that improves the surface smoothness of the heatspreader at the microscopic level. The extra flatness allows for better contact with the die, helping to enhance thermal transfer. 2.7-Slot Design The heat spreader draws heat up into heatpipes that carry it through a fin stack that fills most of the card’s large, 2.7-slot footprint. This generation of TUF Gaming graphics cards also feature a dedicated heatsink for VRAM to keep temperatures well under maximum operating specs. TUF Components Components are selected for TUF Gaming graphics cards based on their durability and performance. In addition to top-shelf chokes and MOSFETs, capacitors that meet military-grade certification make the TUF stand tall amongst the competition. The components are soldered to the PCB using our advanced Auto-Extreme automated manufacturing process. Smooth joints on the rear of the PCB and the elimination of human errors ensure each graphics card meets our rigorous specifications. Finally, to ensure flawless performance when it counts, the cards are subjected to a grueling 144-hour validation trial. Fresh Shroud An all-aluminum shroud adds robust protection to TUF Gaming graphics cards and a no-nonsense industrial design and grayscale colorway fits into any build with ease. It’s Cooler Out Back The underside of the card reveals a host of improvements. Most of the rear is swathed in a protective metal backplate that prominently features a wide vent. The vent allows hot air to escape towards chassis exhaust fans instead of being recycled back into the cooler. Beneath the GPU, a bracket provides consistent mounting pressure between the die and heat spreader. Stainless steel is used for the I/O bracket to protect ports and provide a more secure mount. A conveniently placed Dual Bios switch allows customization of the card’s default performance profile without software Functional Front The top-side RGB element can be customized to display a range of aesthetic and functional effects and also synced with other ASUS components to enable uniform lighting. To fulfill the power demands of the GeForce RTX 3060 Ti, two 8-pin connectors are present, along with onboard LEDs that light up if PSU PCIe power connectors are not plugged in correctly. GPU Tweak III ASUS GPU Tweak III is more intuitive and feature-rich than ever before. A revamped interface offers greater accessibility by integrating core functions into a centralized dashboard, and our Voltage-Frequency tuner has been overhauled to make overclocking even easier. Additional goodies like 0dB fan technology, automatic profile swapping, a fully customizable on-screen display, and logging capabilities ensure that you get the most out of your graphics card.
|
|---|
