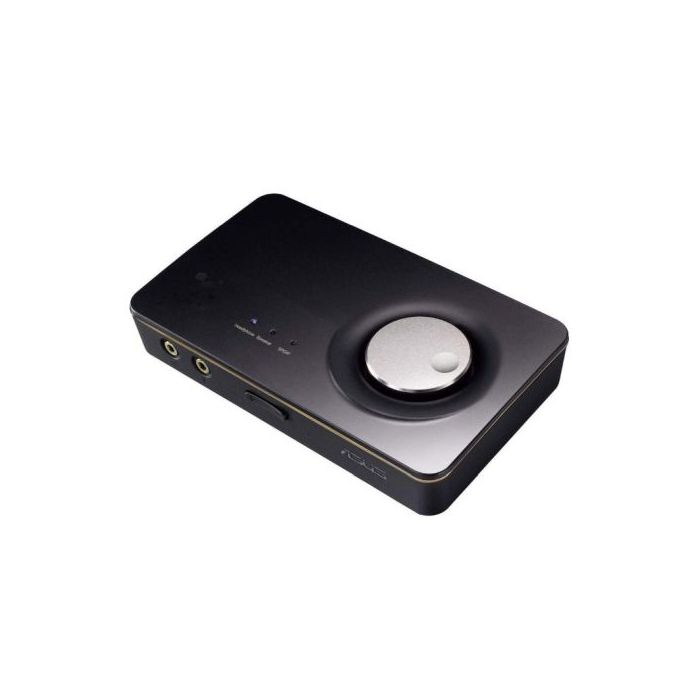

Asus XONAR U7 MKII 7.1 7.1 USB DAC with Headphone Amplifier, USB, Sonic Studio Software

Name: Asus XONAR U7 MKII 7.1 7.1 USB DAC with Headphone Amplifier, USB, Sonic Studio Software
Brand: Asus XONAR U7 MKII 7.1 7.1 USB DAC with Headphone Amplifier, USB, Sonic Studio Software
SKU: SPTECH-SND-XONARU7MKII
Price: 80.99 GBP
Availability: OutOfStock

Be the first to review this product

£80.99 incl. VAT + Free Shipping

Out of stock

SKU

SPTECH-SND-XONARU7MKII

Asus XONAR U7 MKII 7.1 7.1 USB DAC with Headphone Amplifier, USB, Sonic Studio Software

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Internal/External: External
Interface: USB 2.0
Channels: 7.1
Inputs/Outputs: Analog Output
2 x RCA (Un-Balanced)
4 x 3.5 mm jack (1/8"") (Headphone out /Side out/Center-Subwoofer out/Rear out)

Analog Input
1 x 3.5 mm jack (1/8"") (Line-in/ Mic-in combo)

Digital
1 x S/PDIF out (1 x Coaxial)
Chipset: C-Media USB2.0 6632AX High-Definition Sound Processor (Max. 192KHz/24bit)
Signal-to-Noise Ratio: Output Signal-to-Noise Ratio (A-Weighted):
114 dB

Input Signal-to-Noise Ratio (A-Weighted):
110 dB
Frequency Response: "10 Hz to 46 KHz (-3dB, 24bit/96KHz input)"
Sample Rate and Resolution: Analog Playback Sample Rate and Resolution:
44.1K/48K/88.2K/96K/176.4K/192KHz @ 16bit/24bit

Analog Recording Sample Rate and Resolution:
44.1K/48K/88.2K/96K/176.4K/192KHz @ 16bit/24bit

S/PDIF Digital Output:
44.1K/48K/88.2K/96K/176.4K/192KHz @ 16bit/24bit
Additional Features: See Overview
Software: Sonic Studio software suite
Accessories: 1 x S/PDIF adapter
1 x Quick start guide
1 x USB cable
Weight/Dimensions: 130 x 80 x 25 mm ( L x W x H )
Package Type: Retail
Package Weight: 0.6500 kg
Warranty: 2 Years

More Information

More Information
Specifications	Xonar U7 MKII 7.1 USB DAC with Headphone Amplifier True 7.1-channel, 192kHz/24-bit HD surround sound with a 114dB SNR from a compact, USB-powered device Integrated headphone amplifier boosts sound and reveals musical details Dedicated headphone and mic volume controls enable instant audio adjustments for better gaming and media streaming experiences Clickable volume control knob for convenient switching between headphone and speaker output Sonic Studio software suite with intuitive, single-screen interface and Sonic Radar Pro for mapping opponent locations in first-person shooters Enjoy stunningly detailed audio with this plug-and-play USB sound card Xonar U7 MKII is designed to provide the best audio experiences for PC gaming and media streaming. It delivers stunningly clear and impactful sound when listening with headphones or speakers that far surpasses onboard PC audio hardware. With convenient USB connectivity, Xonar U7 MKII gives you instantly upgraded sound quality without the need to open your PC case to install an internal sound card. Its USB design also eliminates the need for a separate power supply, so just connect one cable and start listening. Powerful sound from a compact and portable device Xonar U7 MKII engineering overcomes the space and power supply limitations of other external USB-based audio devices to offer precise and immersive 7.1-channel surround. Sound processing uses 192kHz/24-bit fidelity for true high definition output, maintaining consistent quality across all surround channels. 114dB signal-to-noise ratio (SNR) Up to 16X audio clarity compared with the SNR ratios of average onboard audio. Hyper Grounding technology Exclusive ASUS Hyper Grounding PCB fabrication ensures strong signal insulation to reduce distortion and interference, also known as component crosstalk. Digital to analog converter (DAC) High quality Cirrus Logic® CS4398 DAC (digital-to-analog converter) brings clarity with excellent signal-to-noise ratio (SNR) and low total harmonic distortion (THD) Integrated headphone amplifier pumps up every sound detail Since many gamers choose to refrain from disturbing others while insisting on the best sound quality, Xonar teams integrate a headphone amplifier on Xonar U7 to boost immersive headphone output. Designed for gaming and media streaming Dedicated headphone and mic volume controls Dedicated headphone and microphone volume enable instant audio level adjustments without the need to pause your game or navigate software menus, ensuring uninterrupted gaming and media streaming experiences. Fast and easy switching between headphone and speaker output The headphone volume control knob doubles as a clickable output selector for instant, convenient switching between listening with headphones and speakers. Plug-and-play USB convenience With its USB design, Xonar U7 MKII dramatically upgrades your PC's audio performance simply by plugging it in. It draws power directly from the USB port, eliminating the need for a separate power adapter. Its compact design fits almost anywhere and is easily portable, so you can bring it with your laptop and enjoy great-sound audio on the go. Total Audio Control Take full audio control with Sonic Studio Xonar U7 MKII features the latest Sonic Studio software suite for full control over every sound technology, from equalization (EQ) to 7.1-speaker level-balancing. Sonic Studio has a single navigation page that puts everything in front of you, with an intuitive point-and-click interface that allows you to pre-set audio profiles to suit different audio requirements. Gain the gaming edge with Sonic Radar Pro! Fire up your favorite game and Sonic Radar Pro displays a ‘radar' HUD (heads-up display) that pinpoints in-game actions relative to your position, so you'll know exactly where you are on the battlefield and what's happening around you! Works perfectly with Windows 10 Xonar U7 MKII is fully compatible with Windows 10, so you can enjoy the ultimate audio experience without any hassles.
