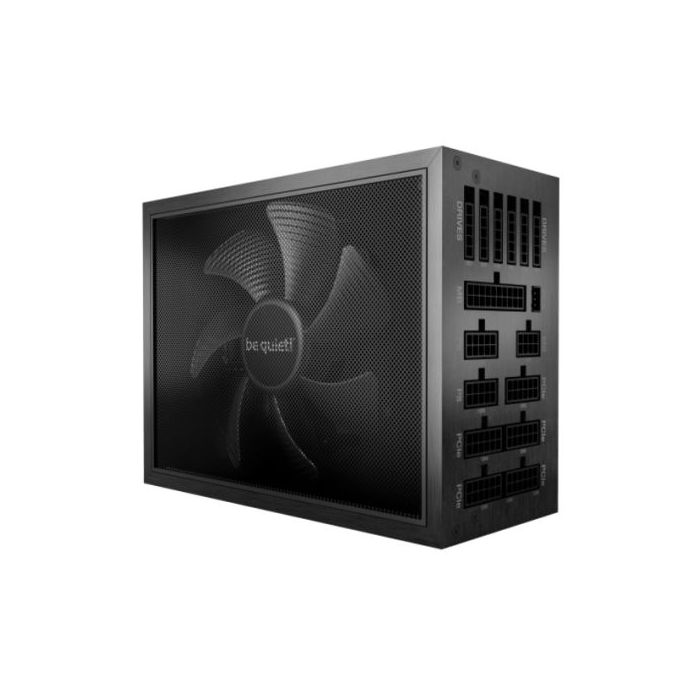

Be Quiet! 1200W Dark Power Pro 12 PSU, Fully Modular, Fluid Dynamic Fan, 80+ Titanium, Fully Digital Control, Frameless Fan Concept

Name: Be Quiet! 1200W Dark Power Pro 12 PSU, Fully Modular, Fluid Dynamic Fan, 80+ Titanium, Fully Digital Control, Frameless Fan Concept
Brand: Be Quiet! 1200W Dark Power Pro 12 PSU, Fully Modular, Fluid Dynamic Fan, 80+ Titanium, Fully Digital Control, Frameless Fan Concept
SKU: SPTECH-PSU-1200BQDPP12
Price: 335.99 GBP
Availability: OutOfStock

Be the first to review this product

£335.99 incl. VAT + Free Shipping

Out of stock

SKU

SPTECH-PSU-1200BQDPP12

Be Quiet! 1200W Dark Power Pro 12 PSU, Fully Modular, Fluid Dynamic Fan, 80+ Titanium, Fully Digital Control, Frameless Fan Concept

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Form Factor: ATX
Modular: Fully Modular
Series: Be Quiet! Dark Power Pro 12
Compatability: ATX 12V 2.51 & EPS 12V V2.92
Wattage: 1200 W
Connectors: "1 x ATX-Motherboard (20+4-pin)
1 x P8 (CPU)
1 x P4+4 (CPU)
10 x PCI-e 6+2-pin (GPU)
8 x PATA 4-pin
16 x SATA 15-pin (HDD, Drives)
2 x FDD (Floppy)"
Rail Design: OC Key switches between six 12V rails and one massive 12V rail
AC Input: AC 100-240 V
PFC: Active PFC
Fan Type: 135mm SilentWings 3 fan
Fan Bearing: Fluid / Hydraulic Bearing
Noise: dB(A) at 20% load: 11.2
dB(A) at 50% load: 11.7
dB(A) at 100% load: 25.8
80+ Certification: 80+ Titanium
Efficiency: "230V, 20% load: 93.9%
230V, 50% load: 94.7%
230V, 100% load: 93%"
MTBF: "300,000 hours "
Protection: Over current
Over Voltage
Under Voltage
Short circuit
Over temperature
Over power
Features: See Overview
Package Contents: Thumb screws
Screws
Cable ties
Velcro cable ties
Box/Bag for PSU/Cables
User manual
OCK slot bracket with switch / OCK jumper
Weight/Dimensions: 2.41 kg
(LxWxD) 200 x 150 x 86 mm
Package Weight: 3.6500 kg
Warranty: 10 Year Warranty

More Information

More Information
Specifications	The be quiet! Dark Power Pro 12 1200W offers 80 PLUS® Titanium efficiency and world class performance due to fully digital control and frameless fan concept. 80 PLUS Titanium efficiency (up to 94.7%) Fully digital control (PFC, LLC, SR/12V) and full bridge topology Patented frameless Silent Wings fan for virtually inaudible operation at ordinary load Full mesh PSU front with redesigned funnel shape opening Overclocking key switches between six 12V rails and one massive 12V rail Japanese 105°C capacitors ensure highest stability and reliability Aluminum case and modular individually sleeved cables for magnificent appearance Ten-year manufacturer’s warranty World Class Power Regulation Fully digital control The fully digital control (PFC, LLC, SR/12V) results in higher efficiency, better regulation and lower ripple noise. This guarantees an incomparably stable operation. Due to the digital concept the Dark Power Pro 12 can reach a great efficiency over the complete power range, even at low load. Frameless Silent Wings Fan Patented fan technology for virtually inaudible operation The be quiet! Silent Wings fan mounted on a tripod enables maximum airflow and a virtually inaudible operation at ordinary loads. This is thanks to its unique, airflow-optimized fan blade design along with an advanced fluid-dynamic bearing and 6-pole fan motor for less vibration, super-long life and minimal power consumption. Innovative Cooling Concept For a longer lifespan The split fan inlet of the Dark Power Pro 12 1200W is a specially-shaped funnel that increases airflow while reducing unwanted turbulence. The wire-free design inside allows the cool air to reach all components flawlessly which ultimately leads to a longer lifespan. Ready For Overclocking Pushing the performance of your PSU to the max Dark Power Pro 12 1200W is particularly suitable for overclocking, thanks to its strong and stable 12V rails. The overclocking key empowers you with full control for overclocking by manually switching between the default six 12V-rail mode and the alternative massive single-rail operation. Maximum Convenience Modular cables The maximum utility afforded by modular single-sleeved cables of up to 120cm simplifies component installation and reduces annoying clutter. This results in increased airflow and improved cooling in even the largest PC cases. State-Of-The-Art Digital Technology Rock-steady signal stability and efficiency Experience the most technologically advanced power supply be quiet! has ever built! Using an advanced digital full bridge, LLC and Synchronous Rectifier (SR) technology it provides unmatched signal stability and unbeatable power efficiency. It is also equipped with DC-to-DC conversion for tight voltage regulation, even under heavy cross-loading conditions. This ensures reliable operation for the next generation of processors and graphics cards. Japanese 105° Capacitors A testament to high quality Only the best components are used in Dark Power Pro 12 1200W. That is why we have built exclusively high-quality Japanese capacitors into the PSU chassis. They are rated to 105°C which ensures stability, reliability and a long operating life. Magnificent Appearance Larger cooling area and new visual aspects The all-new PSU front and the redesigned funnel-shaped opening uphold the high air circulation abilities. In combination with the individually sleeved cables, the high-quality aluminum case on the outside and the high-end components on the inside make the Dark Power Pro 12 shine from every possible angle.
