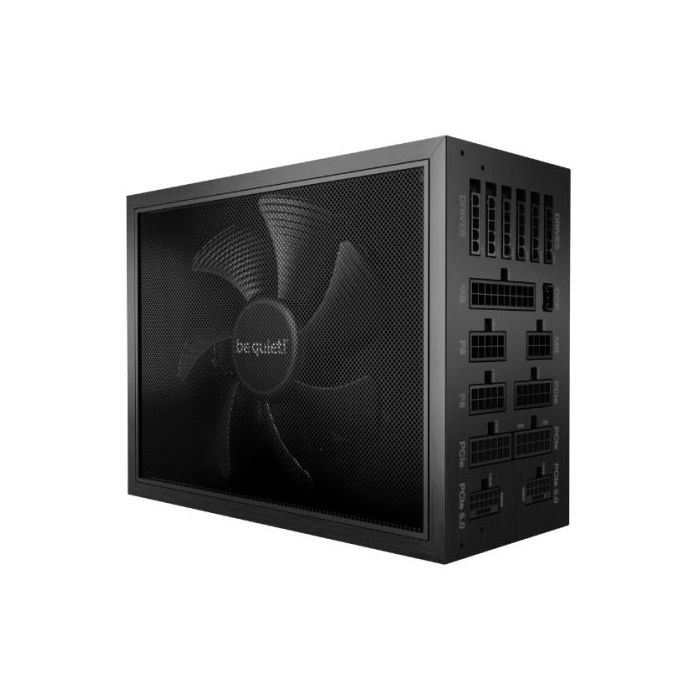

Be Quiet! 1600W Dark Power Pro 13 PSU, Fully Modular, 80+ Titanium, ATX 3.0, PCIe 5.0, Fully Digital Control, Active Rectifier, OC Key

Name: Be Quiet! 1600W Dark Power Pro 13 PSU, Fully Modular, 80+ Titanium, ATX 3.0, PCIe 5.0, Fully Digital Control, Active Rectifier, OC Key
Brand: Be Quiet! 1600W Dark Power Pro 13 PSU, Fully Modular, 80+ Titanium, ATX 3.0, PCIe 5.0, Fully Digital Control, Active Rectifier, OC Key
SKU: SPTECH-PSU-1600BQDPP13
Price: 331.99 GBP
Availability: InStock

Be the first to review this product

£331.99 incl. VAT + Free Shipping

In stock

SKU

SPTECH-PSU-1600BQDPP13

Be Quiet! 1600W Dark Power Pro 13 PSU, Fully Modular, 80+ Titanium, ATX 3.0, PCIe 5.0, Fully Digital Control, Active Rectifier, OC Key

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Form Factor: ATX
Series: Be Quiet! Dark Power Pro 13
Wattage: 1600 W
Modular: Fully Modular
Compatability: ATX v3.0
EPS 12V v2.92
ATX 3.0
PCIe 5.0
#Hide#Wattage Range: 1300W +
Connectors: 1 x ATX-Motherboard (20+4-pin)
1 x P4+4 (CPU)
1 x P8 (CPU)
2 x 12VHPWR cables
6 x PCI-e 6+2-pin (GPU)
16 x SATA
5 x PATA
Rail Design: OC key switches between six 12V rails and one massive 12V rail
AC Input: AC 100-240 V
PFC: Active Rectifier
Fan Type: Patented Frameless 135mm Silent Wings Fan
Fan Bearing: Fluid / Hydraulic Bearing
Noise: dB(A) at 10% load: 9.5
dB(A) at 20% load: 9.6
dB(A) at 50% load: 9.8
dB(A) at 100% load: 31.1
Efficiency: "230V, 2% load: 73.7%
230V, 10% load: 92.6%
230V, 20% load: 94.2%
230V, 50% load: 94.5%
230V, 100% load: 92.2%"
MTBF: "100,000 hours"
Protection: OTP (over temperature protection)
OCP (over current protection)
OPP (over power protection)
SCP (short circuit protection)
OVP (over Voltage protection)
UVP (under Voltage protection)
SIP (Surge & Inrush Protection)
Additional Features: See Overview / Videos
Package Contents: PSU
Thumb screws
Screws
Cable ties
Velcro cable ties
User manual languages
OCK slot bracket with switch / OCK jumper
Weight/Dimensions: 2.44 kg
(LxWxH) 200 x 150 x 86 mm
Package Weight: 7.1000 kg
Warranty: 10 Years

More Information

More Information
Specifications	The be quiet! Dark Power Pro 13 1600W offers 80 PLUS® Titanium efficiency, world-class performance and ATX 3.0 compliance for next-gen GPU compatibility. 80 PLUS Titanium efficiency (up to 94.5%) ATX 3.0 PSU with full support for PCIe 5.0 GPUs and GPUs with 6+2 pin connectors Handles massive power excursions Fully digital control and Active Rectifier + full bridge LLC technology for unmatched signal stability Improved and patented frameless Silent Wings fan for virtually inaudible operation at ordinary loads Overclocking key switches between six 12V rails and one massive 12V rail Aluminum case and modular individually sleeved cables for magnificent appearance 10-year manufacturer’s warranty 80 PLUS® Titanium Certified The highest efficiency certificate available Dark Power Pro 13 1600W is certified with 80 PLUS Titanium and a money-saving energy efficiency rating of up to 94.5%. This provides lots of benefits for your high-end system, including less power consumption and an overall cooler and quieter operation. The standby drain is below 0.1 watts. Future-Proof Your System Fulfills all ATX 3.0 specifications Dark Power Pro 13 1600W is an ATX 3.0 PSU and comes with both native integration of the two 12VHPWR connectors for next-generation PCIe 5.0 graphics cards, and 6 PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for present high-end systems and the ones to come. The New Standard Of Power For massive transient loads Dark Power Pro 13 offers 1600W of continuous power with 6 independent 12V rails. Even if the graphics card demands excessive power for a short time: Dark Power Pro 13 1600W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards. State-Of-The-Art Digital Technology Rock-steady signal stability and efficiency Experience the most technologically advanced power supply be quiet! has ever built! Using an advanced digital full bridge LLC technology results in higher efficiency, better regulation and lower ripple noise for an incomparably stable operation. Frameless Silent Wings Fan Patented fan technology for virtually inaudible operation The improved tripod-mounted be quiet! Silent Wings fan enables maximum airflow and a virtually inaudible operation. This is thanks to its unique, airflow-optimized fan blade design along with an advanced fluid-dynamic bearing. A 6-pole fan motor ultimately makes for less vibration, super-long life and minimal power consumption. Innovative Cooling Concept For a longer lifespan The split fan inlet of the Dark Power Pro 13 1600W is a specially shaped funnel that increases airflow while reducing unwanted turbulence. The wire-free design inside allows the cool air to reach all components flawlessly which ultimately leads to a longer lifespan. Ready For Extreme Overclocking Pushing the performance of your PSU to the max Dark Power Pro 13 1600W is particularly suitable for liquid nitrogen or helium overclocking, thanks to its state-of-the-art digital regulation. The overclocking key empowers you to manually switch between the default six 12V-rail mode and the alternative massive single-rail operation. Japanese 105°C Capacitors A testament to high quality Only the best components are used in Dark Power Pro 13 1600W. That is why this PSU features exclusively high-quality Japanese capacitors. They are rated at 105°C for stability, reliability, and a long operating life. Highest Convenience Modular cables for maximum utility Individually sleeved cables of up to 120cm and cable combs simplify component installation and reduce annoying clutter. This results in increased airflow and improved cooling – even in the largest PC cases. Magnificent Appearance No compromises Dark Power Pro 13 1600W not only captivates with its inner values. An extraordinary aluminum case and individually sleeved cables emphasize the highest standards of Dark Power Pro 13 1600W also on the outside.
