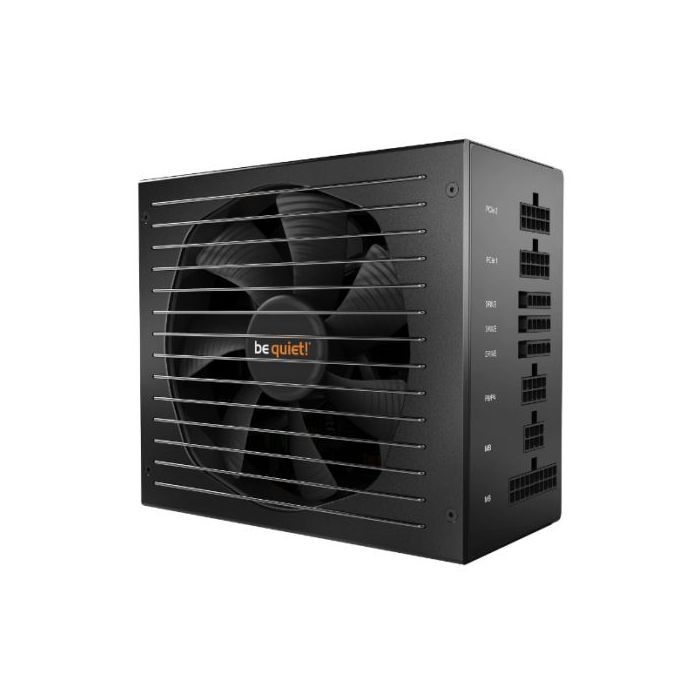

Be Quiet! 550W Straight Power 11 PSU, Fully Modular, Fluid Dynamic Fan, SLI/XFire, 80+ Gold
£98.99
incl. VAT
+ Free Shipping
Out of stock
SKU
SPTECH-PSU-550BQSTRP11
Be Quiet! 550W Straight Power 11 PSU, Fully Modular, Fluid Dynamic Fan, SLI/XFire, 80+ Gold
- Form Factor: ATX
- Modular: Fully Modular
- Series: Be Quiet! Straight Power 11
- Compatability: ATX 12V 2.4 & EPS 12V 2.92
- Wattage: 550 W
- Connectors: "1 x ATX-Motherboard (20+4-pin)
1 x P4+4 (CPU)
2 x PCI-E 6+2-pin (GPU)
3 x PATA 4 pin
9 x SATA 15-pin (HDD, Drives)
1 x FDD (Floppy)
3 x Mainboard connector (PATA 4-pin)" - Rail Design: Quad +12V
- AC Input: AC 100-240 V
- PFC: Active PFC
- Fan Type: SilentWings 3 fan (fluid-dynamic bearing)
- Fan Bearing: Fluid / Hydraulic Bearing
- Noise: dB(A) at 20% load: 9.02
dB(A) at 50% load: 9.46
dB(A) at 100% load: 17.22 - 80+ Certification: 80+ Gold
- Efficiency: up to 93%
- MTBF: "100,000 hours"
- Protection: Over current
Over voltage
Under voltage
Short circuit
Over temperature
Over power - Features: See Overview
- Weight/Dimensions: 1.51 kg
160 x 150 x 86 mm - Package Weight: 3.0400 kg
- Warranty: 5 Years
| Specifications | be quiet! Straight Power 11 550W raises the bar for systems that demand virtually inaudible operation without power quality compromises.
Provides virtually inaudible operation The high-end SilentWings® 3 fan delivers best-of-class airflow yet produces very little noise. This is thanks to its unique, optimized fan blade design along with an advanced fluid-dynamic bearing and 6-pole fan motor that largely eliminates operational noise, has a super-long life and minimal power consumption. Funnel-Shaped Fan Opening Higher cooling performance The fan inlet of the Straight Power 11 550W is funnel-shaped. It causes an increased throughput of air which benefits to a higher cooling performance. Wire-Free Design Inside The PSU Pushing the longevity of components to a maximum An absolute innovation: The Straight Power 11 550W is wire-free on the DC side inside the PSU body. This results in improved cooling airflow and less signal disturbance, simply because of a lack of wiring, and ultimately pushes the lifetimes of the components to a maximum. Fully Modular Cable Management Utmost convenience and compatibility Thanks to the fully modular cable management, cables that serve no purpose in the system are left out. For this reason systems always appear very tidy. At the same time installation is performed much more conveniently. A smoother airflow results from the uncluttered layout of the system, which means lower noise and temperatures prevail inside the case. 80PLUS® GOLD Certified Impressively high efficiency Straight Power 11 550W is certified with 80PLUS® Gold efficiency, reaching up to 93%. This gives less power consumption and a cooler and quieter operation. Truly a benefit for any system. High-Class Technologies Compatibility for the systems of tomorrow The use of LLC and Synchronous Rectifier (SR) provides very stable operation and enhanced voltage regulation.The PSU is equipped with DC-to-DC conversion for tight voltage regulation even under heavy cross-loading conditions. This ensures reliable operation with the next generation of processors and graphics cards. Japanese 105° Capacitors A testament to high quality Only the best components are used in Straight Power 11 550W. That is why we have built only high-quality Japanese capacitors into the PSU chassis. They are rated to 105°C, ensuring stability, reliability and a long operating life. |
|---|
