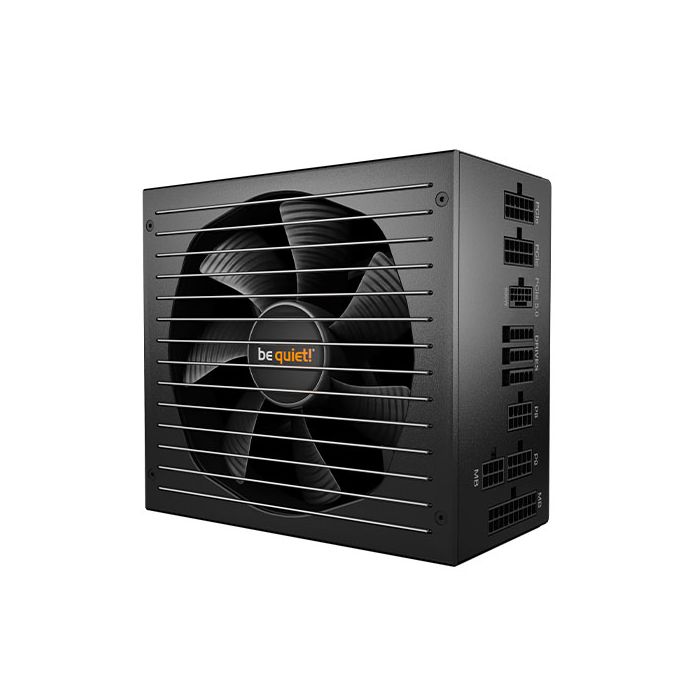

Be Quiet! 750W Straight Power 12 PSU, Fully Modular, 80+ Platinum, Silent Wings Fan, ATX 3.0, PCIe 5.0

Name: Be Quiet! 750W Straight Power 12 PSU, Fully Modular, 80+ Platinum, Silent Wings Fan, ATX 3.0, PCIe 5.0
Brand: Be Quiet! 750W Straight Power 12 PSU, Fully Modular, 80+ Platinum, Silent Wings Fan, ATX 3.0, PCIe 5.0
SKU: SPTECH-PSU-750BQSTRPPL12
Price: 110.99 GBP
Availability: OutOfStock

Be the first to review this product

£110.99 incl. VAT + Free Shipping

Out of stock

SKU

SPTECH-PSU-750BQSTRPPL12

Be Quiet! 750W Straight Power 12 PSU, Fully Modular, 80+ Platinum, Silent Wings Fan, ATX 3.0, PCIe 5.0

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Form Factor: ATX
Series: Be Quiet! Straight Power 12
Wattage: 750 W
Modular: Fully Modular
Compatability: ATX 3.0
EPS 12V v2.92
PCIe 5.0
#Hide#Wattage Range: 700 - 760W
Connectors: 1 x P4+4 (CPU)
1 x P8 (CPU)
1 x 12VHPWR cables
4 x PCI-e 6+2-pin (GPU)
9 x SATA
2 x PATA
Rail Design: One massive high-performance 12V-rail
AC Input: AC 100-240 V
Fan Type: 135mm Silent Wings Fan
Fan Bearing: Fluid / Hydraulic Bearing
Noise: dB(A) at 10% load: 7.8
dB(A) at 20% load: 7.9
dB(A) at 50% load: 7.9
dB(A) at 100% load: 20.8
80+ Certification: 80+ Platinum
Efficiency: "230V, 2% load: 65.0%
230V, 10% load: 88.3%
230V, 20% load: 92.6%
230V, 50% load: 93.8%
230V, 100% load: 92.9%"
MTBF: ">100,000 hours"
Protection: OTP (over temperature protection)
OCP (over current protection)
OPP (over power protection)
SCP (short circuit protection)
OVP (over Voltage protection)
UVP (under Voltage protection)
SIP (Surge & Inrush Protection)
Additional Features: See Overview / Videos
Package Contents: PSU
Screws
Cable ties
User manual
Weight/Dimensions: 1.81 kg
(LxWxH) 160 x 150 x 86 mm
Package Weight: 3.9000 kg
Warranty: 10 Years

More Information

More Information
Specifications	*World Class Quiet And Efficiency* Straight Power 12 is a future-proof ATX 3.0 power supply with 80 PLUS Platinum certification and virtually inaudible operation. 80 PLUS Platinum efficiency (up to 93.8%) ATX 3.0 PSU with full support for PCIe 5.0 GPUs and GPUs with 6+2 pin connectors Handles massive power excursions Virtually inaudible Silent Wings 135mm fan Funnel-shaped fan opening on PSU case for high airflow intake Full bridge LLC technology for unmatched signal stability One massive high-performance 12V-rail Japanese 105C capacitors ensure highest stability and reliability Modular cable management for maximum convenience 10-year manufacturer's warranty 80 PLUS Platinum Certified Highly efficient operation Straight Power 12 750W is certified with 80 PLUS Platinum and an energy efficiency rating of up to 93.8%. This provides lots of benefits for your high-end system, including less power consumption and an overall cooler and quieter operation. Future-Proof Your System Fulfills all ATX 3.0 specifications Straight Power 12 750W is an ATX 3.0 PSU and comes with both native integration of the 12VHPWR connector for next-generation PCIe 5.0 graphics cards, and 4 PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful systems of today and the ones to come. The New Standard Of Power For massive transient loads Straight Power 12 offers 750W of continuous power with one massive 12V rail. Even if the graphics card demands excessive power for a short time: Straight Power 12 750W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards. Silent Wings Fan Provides virtually inaudible operation The high-end Silent Wings fan delivers best-of-class airflow yet produces very little noise. This is thanks to its unique, optimized fan blade design along with an advanced fluid-dynamic bearing and 6-pole fan motor that largely eliminates operational noise, has a super-long life and minimal power consumption. Flawless Cooling Concept For a longer lifespan The funnel-shaped fan inlet of the Straight Power 12 750W increases airflow while reducing unwanted turbulence for a higher cooling performance. The wire-free design inside allows the cool air to reach all components which ultimately leads to a longer lifespan. State-Of-The-Art Technologies Rock-steady signal stability and efficiency With full bridge LLC Straight Power 12 750W offers advanced technologies, resulting in higher efficiency, better regulation and lower ripple noise for an incomparably stable operation. Japanese 105 Degree Capacitors A testament to high quality Only premium components are used in Straight Power 12 750W. That is why this PSU features exclusively high-quality Japanese capacitors. They are rated at 105C for stability, reliability, and a long operating life. Convenience And Connectivity Maximum utility Modular, sleeved cables of up to 100cm in length simplify component installation and reduce annoying clutter. This results in increased airflow and improved cooling - even in the largest PC cases.
