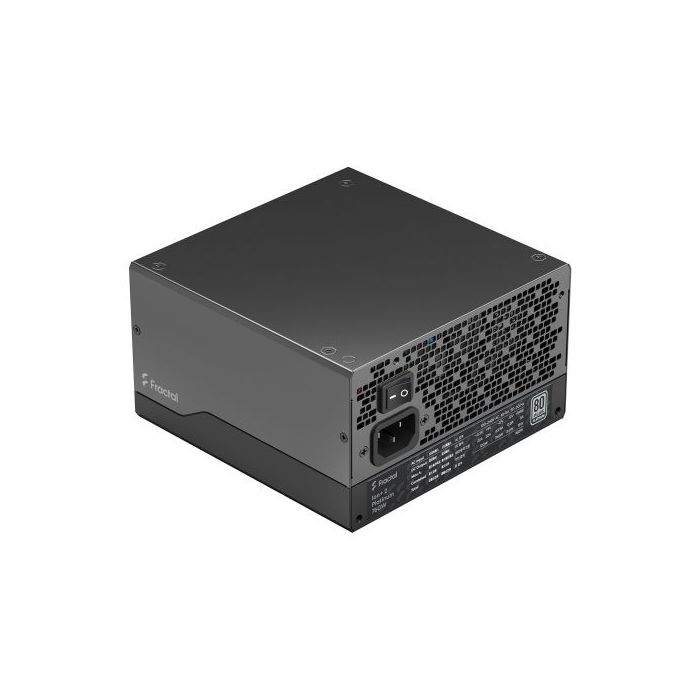

Fractal Design 560W ION+ 2 PSU, Fully Modular, Fluid Dynamic Fan, 80+ Platinum, UltraFlex Wires, Whisper-quiet Mode

Name: Fractal Design 560W ION+ 2 PSU, Fully Modular, Fluid Dynamic Fan, 80+ Platinum, UltraFlex Wires, Whisper-quiet Mode
Brand: Fractal Design 560W ION+ 2 PSU, Fully Modular, Fluid Dynamic Fan, 80+ Platinum, UltraFlex Wires, Whisper-quiet Mode
SKU: SPTECH-PSU-560FRIONP2
Price: 83.99 GBP
Availability: OutOfStock

Be the first to review this product

£83.99 incl. VAT + Free Shipping

Out of stock

SKU

SPTECH-PSU-560FRIONP2

Fractal Design 560W ION+ 2 PSU, Fully Modular, Fluid Dynamic Fan, 80+ Platinum, UltraFlex Wires, Whisper-quiet Mode

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Form Factor: ATX
Modular: Fully Modular
Series: Fractal Design ION+ 2
Compatability: ATX 2.52
Wattage: 560 W
Connectors: 2 x 4+4-pin CPU +12V (EPS)
4 x 4-pin Molex
4 x 6+2-pin PCIe
6 x SATA
AC Input: 100-240V AC
Fan Type: Fractal Dynamic GP-14 140 mm FDB bearing fan
Fan Bearing: Fluid / Hydraulic Bearing
Noise: Whisper-quiet operation
Zero RPM mode
80+ Certification: 80+ Platinum
Efficiency: "ErP 2013 (<0.45W @230. VAC, 45 mA load on +5Vsb)"
MTBF: "100,000 hours"
Protection: Over voltage
Under voltage
Overpower
Short circuit
Over current
Over temperature
Features: See Overview
Package Contents: Power Supply
Power Supply storage bag
Modular cable kit in storage bag
Manual
AC Power cord
Velcro cable ties and mounting screw pack
Weight/Dimensions: 2.24kg
(WxHxD) 150 x 150 x 86 mm
Package Weight: 2.9100 kg
Warranty: 10 Years

More Information

More Information
Specifications	The power of silence. The Ion+ 2 Platinum is a high-performance fully modular PSU with whisper-quiet operation, enhanced cable flexibility and superior output quality. It ships with two 8-pin ATX12V/EPS cables, ensuring compatibility with new motherboards. A user selectable semi-passive Zero RPM mode maintains pure silence under light loads, and the custom-tailored 140 mm fan with FDB bearings stays practically whisper-quiet even under heavy load. Revolutionary UltraFlex™ cable with its ultra-high strand count wire and special insulation bends and twists effortlessly to make installation and cable-routing a breeze. Ion+ 2 Platinum is available in 560, 660, 760 and 860 watt capacities, all with 80PLUS® Platinum Efficiency, 10-year warranty, and a full electrical protection suite for peace of mind. 80PLUS® Platinum efficiency for optimized electricity use and reduced heat generation Great electrical output quality with tight voltage regulation and low ripple and noise Fully modular design for reduced clutter and maximum ease of installation and with Fractal Design UltraFlex™ (extra bendable soft cables) for better cable management Equipped with a large high-performance Fractal Design Dynamic GP-14 140 mm fan, custom-tailored for power supply use with an exceptionally low minimum speed and a true long-life FDB bearing User selectable semi-passive operation allows for either passive operation in low load situations or continuous low speed fan operation for reduced component stress Compact 150 mm depth allows for installation in compact cases or provides additional cable management room in larger cases Premium Japanese 105°C capacitors provide maximum reliability and durability Extensive 10-year warranty and a full electrical protection suite provides peace of mind Supports the latest ATX 2.52 standard with improved start-up time and transient load response Premium storage bags for cables and PSU All models include two 8-pin ATX12V/EPS cables, ensuring compatibility with new motherboards

Reviews

Fractal Design 560W ION+ 2 PSU, Fully Modular, Fluid Dynamic Fan, 80+ Platinum, UltraFlex Wires, Whisper-quiet Mode

The power of silence.
