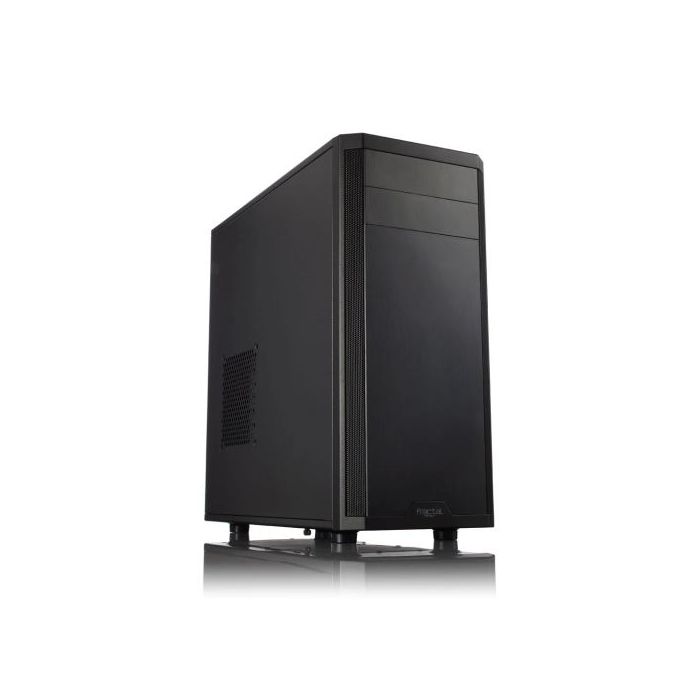

Fractal Design Core 2300 Mid Tower Gaming Case, ATX, Brushed Aluminium-look, Vertical HDD Bracket, 2 Fans

The compact ATX Mid Tower of the x3 Series combines a clean, modern exterior design with great cooling and component compatibility


• A compact full-ATX case with bottom-mounted PSU, designed for exceptional airflow and cooling
• Brushed aluminum-look front panel with a sleek, threedimensional textured finish
• Superior water cooling support for its size, supporting one 240/280mm radiator in the front and a 240mm radiator in the top
• Featuring a 120mm rear exhaust fan for great cooling
• Total 7 fan slots with two 120mm fans included
• Extruded motherboard plate allowing space for additional cable routing; 18.5mm around the motherboard and 13.5mm directly behind it
• Supports tall CPU cooler towers, up to 162mm in height
• Multiple easy-to-clean dust filters designed into the case to help maintain a dust free interior
• Innovative vertical HDD bracket, which simultaneously holds three 3.5” drives and three 2.5” drives
• One additional SSD position behind the PSU area with easy installation and access

Description

Specification

• Form Factor: ATX
• #Hide#Small Form Factor: No
• Power Supply Wattage: No PSU
• Motherboard Support: "ATX, Micro ATX, Mini ITX"
• Connectors / Controls: 1 x USB 3.0
  1 x USB 2.0
  Audio in/out
• #Hide#5.25 Bay: Yes (5.25 Bay)
• Drive Bays: 3 x 3.5” HDD positions
  4 x 2.5” dedicated SSD unit positions
  2 x 5.25"" bays
• Expansion Slots: 7 Expansion slots
• Cooling System: Included
  Front: 1 x Silent Series 120 mm fan
  Rear: 1 x Silent Series 120 mm fan

  Fan Mounts
  Front: 2 x 120 / 140 mm
  Top: 2 x 120 / 140 mm
  Rear: 1 x 120 mm
  Bottom: 1x 120 / 140 mm (bottom HDD position must be empty)
  Side: 1 x 140 mm
• .:
  Water Cooling options:
  Front: Up 240 mm radiator
  Top: Up to 240 mm radiator
  Rear: 120 mm radiator

  See manufacturers link for radiator limitations
• Colour: Black
• Compatability: GFX Card length:
  380 mm (one or more 3.5"" hard drives may interfere with side-mounted power connectors on graphics cards longer than 200 mm)

  Max CPU Cooler:
  162 mm

  PSU:
  205 mm or 185 mm (with a bottom 120/140 mm fan)
• Weight/Dimensions: 5.2 kg
  (WxHxD) 195 x 431 x 450 mm
• Additional Features: See Overview / Video
• Accessories: Accessory box
  User manual
• Package Weight: 5.8000 kg
• Warranty: 2 Years
