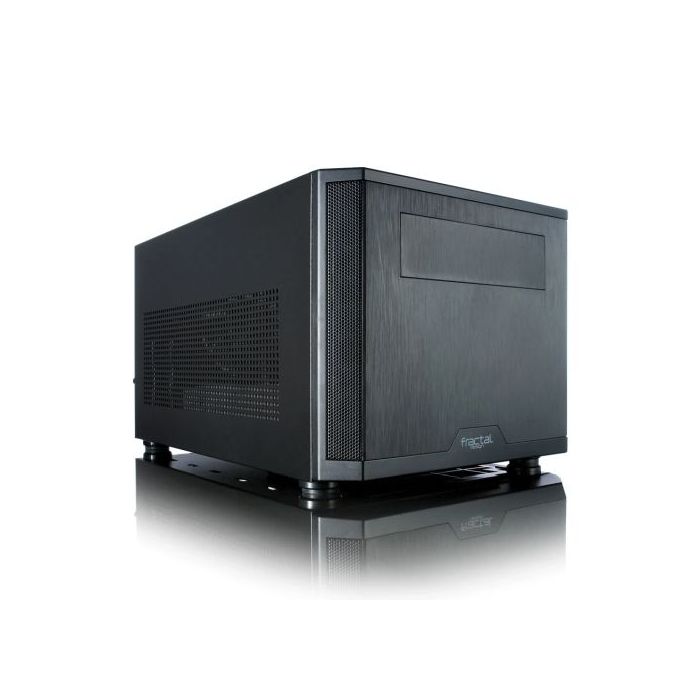

Fractal Design Core 500 Black Compact Cube Case, Mini ITX, ATX PSU & 310mm GPU Support, 280mm Watercooling, Magnetic Filters

A small, compact chassis that lets you build computer without compromising on component selection


• Brushed aluminum-look front panel with a sleek, three-dimensional textured finish
• Very compact case with a volume of only 19.5 liters
• Extremely good water cooling support for its size, supporting radiators up to 280mm big
• Smart drive bay placement allows you to fit up to three 3.5”drives, three 2.5” and one 5.25” drive simultaneously
• Supports Mini-ITX motherboards, ATX power supplies and graphics cards up to 310mm in length
• Supports tall CPU cooler towers, up to 170mm in height
• Featuring a Fractal Design Silent Series R3 140mm rear exhaust fan for great cooling
• Big magnetic filters for the side and top air intake together with a PSU filter ensures a dust free interior

Description

Specification

• Form Factor: Mini ITX
• #Hide#Small Form Factor: Yes (SFF)
• Power Supply Wattage: No PSU
• Motherboard Support: "Mini ITX, Mini DTX

  NOTE: motherboards with SATA ports that are angled 90 degrees may conflict with installation in the case."
• Connectors / Controls: 2 x USB 3.0
  Audio in/out
  Power button with LED (white)
  HDD activity LED (white)
  Reset button
• #Hide#5.25 Bay: Yes (5.25 Bay)
• Drive Bays: 3 x 3.5""
  3 x 2.5""
  1 x 5.25"" (removable)
• Expansion Slots: 2 Expansion slots
• Cooling System: Included
  Rear: 1 x Silent Series R3 140 mm fan

  Fan Mounts
  Rear: 1 x 120 / 140 mm
  Bottom: 2 x 120 / 140 mm
• .:
  Water Cooling options:
  Top: Up to 280 mm radiator *
  Rear: 120 mm radiator (without rear 3.5"" HDD)

  * Thickness limitation of 100 mm for both radiator + fan
  240/280 mm require removal of ODD bay
  280 mm - maximum 325 mm in length
• Colour: Black
• Compatability: GFX Card:
  310 mm
  Cards longer than 170 mm will not fit with PSUs that exceed 170 mm

  Max CPU Cooler:
  170 mm

  PSU:
  170 mm (non modular PSUs)
  160 mm (modular PSUs)
• Weight/Dimensions: 4.4 kg
  (WxHxD) 250 x 213 x 380 mm
  w/o feet/protrusions/screws: 250 x 203 x 367 mm
  Volume: 19.5 litres
• Additional Features: See Overview / Video
• Accessories: Accessory Box
  User manual
• Package Weight: 4.3000 kg
• Warranty: 2 Years
