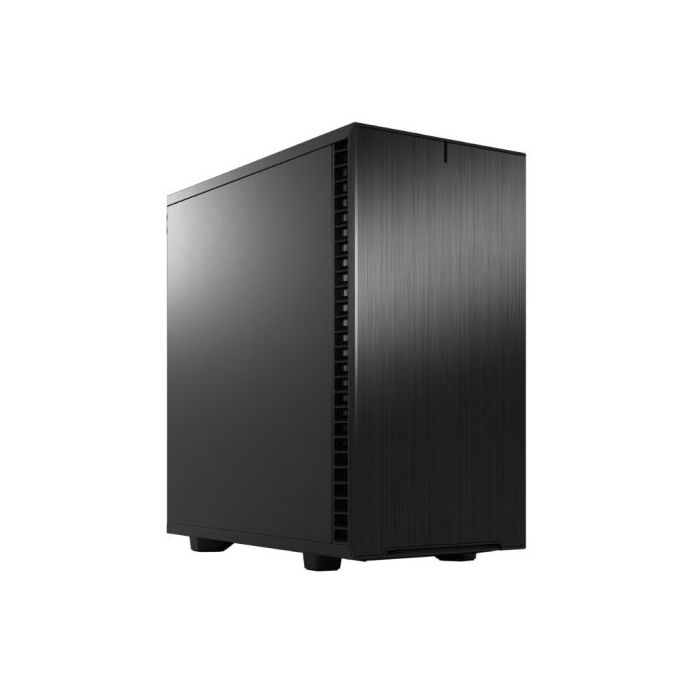

Fractal Design Define 7 Mini Black Solid Gaming Case, Micro ATX, Sound Dampening, Ventilated PSU Shroud, USB-C, 331mm GPU & 240mm Radiator Support

Name: Fractal Design Define 7 Mini Black Solid Gaming Case, Micro ATX, Sound Dampening, Ventilated PSU Shroud, USB-C, 331mm GPU & 240mm Radiator Support
Brand: Fractal Design Define 7 Mini Black Solid Gaming Case, Micro ATX, Sound Dampening, Ventilated PSU Shroud, USB-C, 331mm GPU & 240mm Radiator Support
SKU: SPTECH-CAM-FRDE7MI
Price: 102.99 GBP
Availability: OutOfStock

Be the first to review this product

£102.99 incl. VAT + Free Shipping

Out of stock

SKU

SPTECH-CAM-FRDE7MI

Fractal Design Define 7 Mini Black Solid Gaming Case, Micro ATX, Sound Dampening, Ventilated PSU Shroud, USB-C, 331mm GPU & 240mm Radiator Support

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Form Factor: Micro ATX
#Hide#Small Form Factor: No
Power Supply Wattage: No PSU
Motherboard Support: "Micro ATX, Mini ITX, Mini DTX"
Connectors / Controls: 1 x USB 3.1 Gen 2 Type-C
2 x USB 3.0
2 x USB 2.0
Audio
Drive Bays: 3.5""/2.5"" drive mounts: 2 (included)
Dedicated 2.5"" drive mounts: 4 (2 included – note the 8 mm height limit on two of the positions)
Expansion Slots: 4 Expansion slots
Cooling System: Included
Front: 1 x Dynamic X2 GP-14 140mm fan
Rear: 1 x Dynamic X2 GP-12 120mm fan

Fan Mounts
Front: 3 x 120 / 2 x 140 mm
Top: 2 x 120 / 2 x 140 mm
Rear: 1 x 120 mm
Bottom: 1 x 120 mm (requires removal of HDD cage)
.: "
Radiaitor options:
Front: Up to 280 mm (361 mm max height, 146 mm max width)
Top: 120/240 mm (max 37 mm RAM with 121 mm wide radiator)
Rear: 120 mm
Bottom: 120 mm (requires removal of HDD cage)"
Colour: Black
Material: Left side panel: Industrial sound-damped steel
Right side panel: Industrial sound-damped steel
Compatability: GFX Card length:
331 mm
306 mm with front fan

Max CPU Cooler:
167 mm

Max PSU length:
165 mm recommended with HDD cage
200 mm without HDD cage
Weight/Dimensions: 7.49 kg
(LxWxH) 399 x 205 x 406 mm
Additional Features: See Overview
Accessories: User manual
Accessory box
Ventilated top panel
Package Weight: 9.4000 kg
Warranty: 2 Years

More Information

More Information
Specifications	Re-defining sleek. The Define 7 Mini offers many features from its larger siblings in a smaller form factor. The compact yet spacious interior accommodates mATX and Mini ITX motherboards, and there’s room for a GPU up to 331 mm with a 240 mm radiator in the top (or a GPU up to 306 mm with 25 mm front fans). Compact yet spacious interior accommodates mATX and Mini ITX motherboards Room for GPUs up to 331 mm with a 240 mm radiator in the top, or 306 mm with 25 mm thick fans in the fronts Support for 2x 2.5”/3.5” drives and up to 4x 2.5” drives (2x 2.5” brackets included) Top panel effortlessly swaps from solid steel to filtered ventilation New removable top panel design opens up to fully expose the case interior for effortless installation and cable routing Silence-optimized construction with industrial sound-damped front, top, and side panels Brushed aluminum front and top-latching side panels offer a clean sophisticated look Install up to 7x 120 mm or 4x 140 mm fans (1x 120 mm and 1x 140 mm Dynamic X2 fans included) Five front USB ports including one USB 3.1 Gen 2 Type-C with fast-charging support and speeds up to 10Gbps Bridgeless expansion slots ensure obstruction-free connections for easier installation and hookup Ventilated PSU shroud with two-part removable cover for optimal coverage and front radiator support Easy-to-clean high airflow nylon filters on the front, top and base with full PSU coverage and convenient front access Integrated cable guides with velcro straps further simplify cable management behind the board
