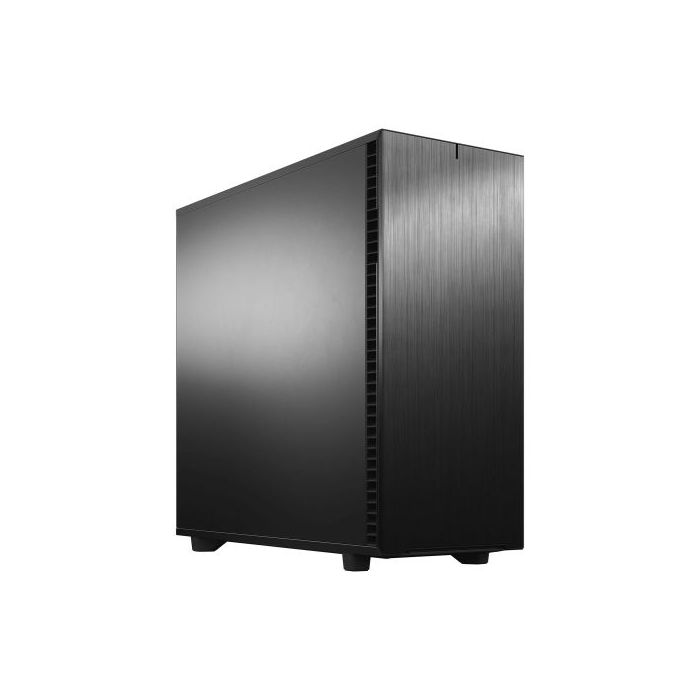

Fractal Design Define 7 XL Black Solid Gaming Case, E-ATX/SSI-EEB, Modular Design, 3 Fans, Fan Hub, Sound Dampening, USB-C

The Define 7 XL sets a new standard for what you should expect from a full tower case in terms of modularity, flexibility and ease of use.


• Spacious, extensively adaptable dual-layout interior easily accommodates large motherboards up to E-ATX and SSI-EEB
• Mount up to 18 HDD/SSDs plus five SSDs in the Storage Layout (6 HDD/SSD trays + 2 SSD brackets + 2 multi-brackets included)
• Use the Open Layout for more headroom and gargantuan water-cooling with radiators up to 480 mm in front or top and 280 mm in the base
• Two 5.25” ODD bays can be converted to an additional front fan mount with filtered louver covering
• Silence-optimized construction with industrial sound-damped front, top, and side panels
• Top panel effortlessly swaps from sound damped solid steel to filtered ventilation
• New chassis design opens up to fully expose the case interior on three sides for totally unhindered installation and cable routing
• Anodized aluminum front panel with reversible dual-handed hinges opens and closes easily with magnetic latching
• Outstanding cooling capacity with a total of 9 x 140 mm or 11 x 120 mm fan mounts and three preinstalled Dynamic X2 GP-14 fans
• Versatile new multi-brackets convert any unused fan position to an HDD, SSD or pump mount
• Three vertical GPU slots for use with the Flex VRC-25 PCIe riser, available separately
• Five front USB ports including one USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10Gbps
• Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans directly in line with cable channels along the edge of the case
• Sturdy new HDD cage design with vibration damped trays
• Tool-less, top-latching panels allow quick access while preventing accidental drops
• Bridgeless expansion slots ensure obstruction-free connections for easier installation and hookup
• Ventilated PSU shroud with two-part removable cover
• Easy-to-clean high airflow nylon filters on the front, top, and base with full PSU coverage and convenient front access
• 13 pass-through holes with ten rubber grommets and two removable covers make for clean cable routing regardless of motherboard size
• Detachable PSU cable shield and integrated cable guides with Velcro straps further simplify cable management behind the board

Description

Specification

• Form Factor: E-ATX
• #Hide#Small Form Factor: No
• Power Supply Wattage: No PSU
• Motherboard Support: "EE-ATX, E-ATX, ATX, Micro ATX, Mini ITX, SSI-CEB, SSI-EEB"
• Connectors / Controls: 1 x USB 3.1 Gen 2 Type-C
  2 x USB 3.0
  2 x USB 2.0
  Audio I/O
  Power button
  Reset button
• #Hide#5.25 Bay: Yes (5.25 Bay)
• Drive Bays: 6 + 2 x 3.5""/2.5"" - 18 positions total
  2 x 2.5"" - 5 positions total
  2 x 5.25""
• Expansion Slots: 9 + 3 Expansion slots
• Cooling System: Included
  Front: 2 x Dynamic X2 GP-14 140mm fans
  Rear: 1 x Dynamic X2 GP-14 140mm fan

  Fan Mounts
  Front: 4 x 120 / 3 x 140 mm
  Top: 4 x 120 / 3 x 140 mm
  Rear: 1 x 120 / 140 mm
  Bottom: 2 x 120 / 140 mm
• .:
  Water Cooling options:
  Front: Up to 480 / 420 mm radiator
  Top: Up to 480 / 420 mm radiator
  Rear: 120 mm radiator
  Bottom: Up to 240 / 280 mm radiator
• Colour: Black
• Material: Left side panel: Industrial sound-damped steel
  Right side panel Industrial sound-damped steel
• Compatability: GFX Card:
  Storage layout: 359 mm
  Open layout: 549 mm (524 mm w/ front fan)

  Max CPU Cooler:
  185 mm

  PSU:
  250 mm (both HDD cages installed)
• Weight/Dimensions: 16.53 kg
  (LxWxH) 604 x 240 x 566 mm
  w/o feet/protrusions/screws: 590 x 240 x 548 mm
• Additional Features: See Overview / Video
• Accessories: Accessory box
  User manual
  Ventilated top panel
  ODD bracket
  ODD bay cover
  2 x HDD/SSD trays
• Package Weight: 18.4000 kg
• Warranty: 2 Years
