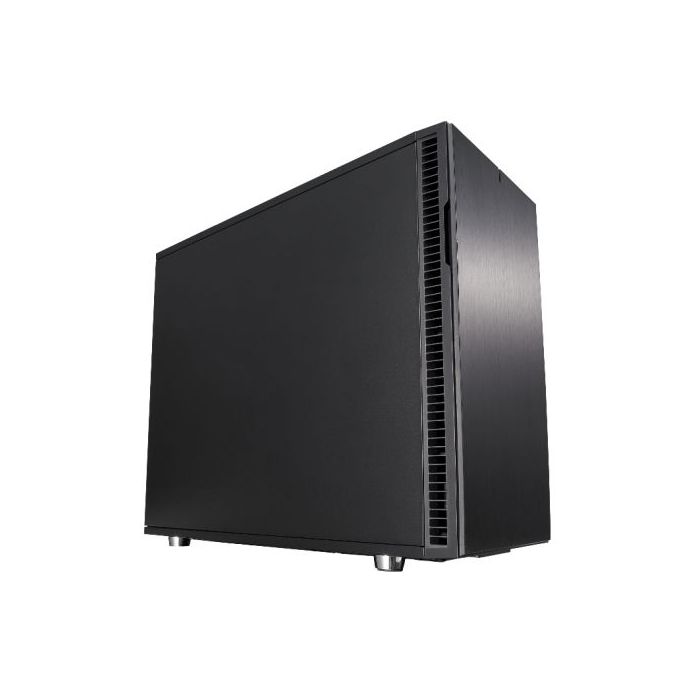

Fractal Design Define R6 Black Solid Gaming Case, E-ATX, Modular Design, 3 Fans, Fan Hub, Sound Dampening

Designed from the ground up, the Define R6 goes beyond iteration with a profound stride of innovation – a sizeable step forward from preceding models of the world-renowned Define Series.


• Optimized for silence with high-density industrial dampening on side, top and front panels
• Reversible front door with anodized aluminum cover and dual mounting system for adaptability with elegance
• Nine fan positions with intuitive layout and clear airflow paths offer massive cooling capacity
• Nexus+ Smart Hub offers superior fan control of six additional case fans and three extra PWM devices via your motherboard.
• Three silent, airflow-optimized Fractal Design Dynamic X2 GP-14 140 mm fans come pre-installed helping ensure superior airflow via two intake fans and a single exhaust.
• Extensive water cooling support with room for up to a 420 mm radiator in the top, 360 mm in the front, and up to 280 mm in the base
• Power supply shroud and Modular Storage Plate conceal HDD trays and excess cabling for a clean, clutter-free interior
• Third generation ModuVent™ technology gives users the choice between a soundproof steel cover or filtered multi-fan ventilation setup in the top panel
• Easy-to-clean high airflow nylon filters on the front, top, and base with full PSU coverage and front access for convenience
• Modular Storage Plate lets users easily convert between the Standard Layout for maximum storage capacity or the new Open Layout for superior water cooling support and clear air flow paths
• Vertical 2.5 slot GPU mount, compatible with the Fractal Design Flex VRC-25 PCIE x16 Vertical GPU Riser Kit, showcases your graphics hardware with full visibility and secure fastening (sold separately).
• Highly modular interior includes six universal SSD/HDD trays that can be independently repositioned to suit components, cooling, and cable routing
• Customizable 2.5” storage solution consists of two brackets and a choice of four tray locations to keep drives hidden behind the motherboard tray or display them prominently on top of the PSU shroud
• Compatible with Fractal Design Connect D1 USB 3.1 Gen 2 Type-C Upgrade Kit for ultra-fast file transfers and fast charging (sold separately, requires a compatible motherboard)

Description

Specification

• Form Factor: E-ATX
• #Hide#Small Form Factor: No
• Power Supply Wattage: No PSU
• Motherboard Support: "E-ATX, ATX, Micro ATX, Mini ITX"
• Connectors / Controls: 2 x USB 3.0
  2 x USB 2.0
• #Hide#5.25 Bay: Yes (5.25 Bay)
• Drive Bays: 6 x 3.5""/2.5""
  2 x 2.5""
  1 x 5.25""
• Expansion Slots: 7 + 2 vertical Expansion slots
• Cooling System: Included
  Front: 2 x Dynamic X2 GP-14 140mm fans
  Rear: 1 x Dynamic X2 GP-14 140mm fan

  Fan Mounts
  Front: 3 x 120 / 2 x 140 mm
  Top: 3 x 120 / 2 x 140 mm
  Rear: 1 x 120 / 140 mm
  Bottom: 2 x 120 / 140 mm
• .:
  Water Cooling options:
  Front: Up to 280 / 360 mm radiator
  Top: Up to 360 / 420 mm
  Rear: 120 mm radiator
  Bottom: Up to 240 / 280 mm radiator
• Colour: Black
• Material: Left side panel: Industrial sound-damped steel
  Right side panel Industrial sound-damped steel
• Compatability: GFX Card length:
  Front fan mounted: 440 mm
  Standard layout: Max width 155 mm for cards longer than 300 mm

  Max CPU Cooler:
  185 mm

  PSU:
  300 mm
• Weight/Dimensions: 12.4 kg
  (LxWxH) 543 x 233 x 465 mm
  w/o feet/protrusions/screws: 535 x 233 x 448 mm
• Additional Features: See Overview / Video
• Accessories: User manual
  Accessory box
• Package Weight: 13.8000 kg
• Warranty: 2 Years
