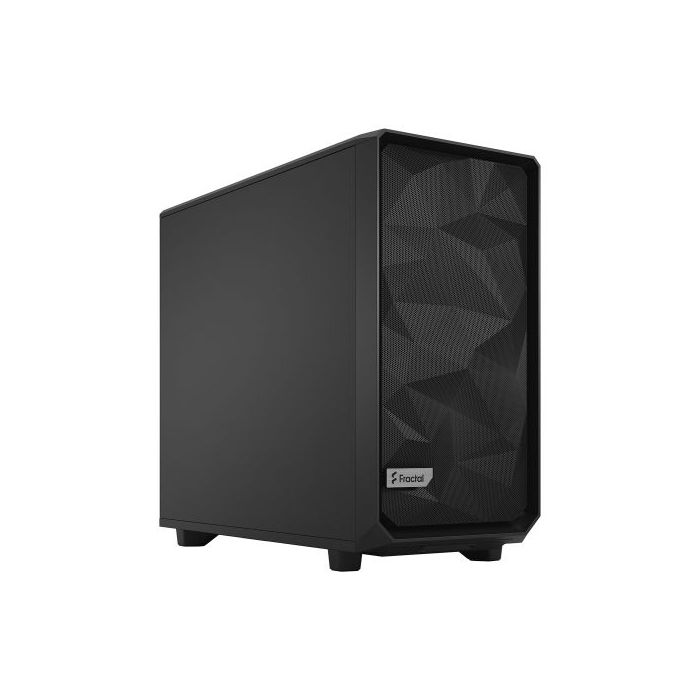

Fractal Design Meshify 2 Black Solid Gaming Case, E-ATX, Angular Mesh Front, 3 Fans, Fan Hub, Detachable Front Filter, USB-C

Name: Fractal Design Meshify 2 Black Solid Gaming Case, E-ATX, Angular Mesh Front, 3 Fans, Fan Hub, Detachable Front Filter, USB-C
Brand: Fractal Design Meshify 2 Black Solid Gaming Case, E-ATX, Angular Mesh Front, 3 Fans, Fan Hub, Detachable Front Filter, USB-C
SKU: SPTECH-CAA-FRME2
Price: 90.99 GBP
Availability: InStock

Be the first to review this product

£90.99 incl. VAT + Free Shipping

In stock

SKU

SPTECH-CAA-FRME2

Fractal Design Meshify 2 Black Solid Gaming Case, E-ATX, Angular Mesh Front, 3 Fans, Fan Hub, Detachable Front Filter, USB-C

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Form Factor: E-ATX
#Hide#Small Form Factor: No
Power Supply Wattage: No PSU
Motherboard Support: "E-ATX (max 285mm), ATX, Micro ATX, Mini ITX"
#Hide#Window(s): No
Connectors / Controls: 1 x USB 3.1 Gen 2 Type-C
2 x USB 3.0
Audio I/O
Power button
Reset button
Drive Bays: 6 x 3.5""/2.5"" - 14 positions total + 1 Multibracket
2 x 2.5"" - 4 positions total
Expansion Slots: 7 + 2 Expansion slots
Cooling System: Included
Front: 2 x Dynamic X2 GP-14 140mm fans
Rear: 1 x Dynamic X2 GP-14 140mm fan

Fan Mounts
Front: 3 x 120 / 140 mm
Top: 3 x 120 / 140 mm
Rear: 1 x 120 / 140 mm
Bottom: 2 x 120 / 140 mm
.:
Water Cooling options:
Front: Up to 360 / 280 mm radiator
Top: Up to 360 / 420 mm
Rear: 120 mm radiator
Bottom: Up to 240 / 280 mm radiator
Colour: Black
Material: Left side panel: Steel
Right side panel: Steel
Compatability: GFX Card:
Storage layout: 315 mm
Open layout: 491 mm (467 mm w/ front fan)

Max CPU Cooler:
185 mm

PSU:
250 mm (with HDD cage installed)
Weight/Dimensions: 10.1 kg
(LxWxH) 542 x 240 x 474 mm
w/o feet/protrusions/screws: 541 x 240 x 454 mm
Additional Features: See Overview / Video
Accessories: User manual
Large accessory box - HDD trays
Small accessory box
Package Weight: 11.7500 kg
Warranty: 2 Years

More Information

More Information
Specifications	The new Meshify 2 is a classic evolved with focus on distinctive design, spacious interior and rugged good looks. Iconic angular mesh design provides filtered airflow with a bold, stealth-inspired aesthetic Spacious and extensively adaptable dual-layout interior easily accommodates large motherboards up to and including 285 mm E-ATX Support for radiators up to 360 mm in front, 420 mm up top, or 280 mm in the base in the default Open Layout Includes 6 HDD/SSD trays, 2 SSD brackets, and 12 universal Multibrackets for mounting up to 10 drives Expandable to 14 trays and 4 SSD brackets with 3 Multibrackets installed in the top and bottom for a max of up to 21 drives in Storage Layout New chassis design opens up to fully expose the case interior on three sides for totally unhindered installation and cable routing New front nylon filter that can be removed for increased airflow New front panel design with hinged removable mesh and tether-free bezel for easier access to front fan mounts Three front USB ports including one USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10Gbps Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans directly in line with cable channels along the edge of the case Outstanding cooling capacity with a total of nine 120/140 mm fan mounts and three preinstalled Dynamic X2 GP-14 fans Detachable PSU cable shield and integrated cable guides with velcro straps further simplify cable management behind the board Versatile Multibracket that converts any unused fan position to an HDD, SSD or pump mount Two vertical GPU slots for use with the Flex VRC-25 PCIe riser, available separately Easy-to-clean high airflow nylon filters on the front, top and base with full PSU coverage and convenient front access Ventilated PSU shroud with two-part removable cover for optimal cable concealment and front radiator support Tool-less, top-latching side panels allow quick access while preventing accidental drops Bridgeless expansion slots ensure obstruction-free connections for easier installation and hookup Detachable front filter New front nylon filter that can be removed for increased airflow New front panel design with hinged removable mesh and tether-free bezel for easier access to front fan mounts Three Dynamic X2 GP-14 fans come preinstalled with room to expand up to a total of nine fans Superlative storage Convert to Storage Layout and install up to 11 HDDs alongside four dedicated SSDs mounts (6x SSD/HDD trays, 2x SSD brackets and 1x Multibracket included) Transformable interior design utilizing a movable wall for enhancing custom builds The included Multibracket lets you convert any unused fan position to an HDD, SSD or pump mount Tool-less, top-latching side panels allow quick access while preventing accidental drops Extremely flexible Fits your custom water loop with large reservoirs and radiators up to 420 mm in the default Open Layout Support for radiators up to 360 mm (front), 420 mm (top) and 280 mm (base) Easily holds large motherboards up to and including 285 mm E-ATX
