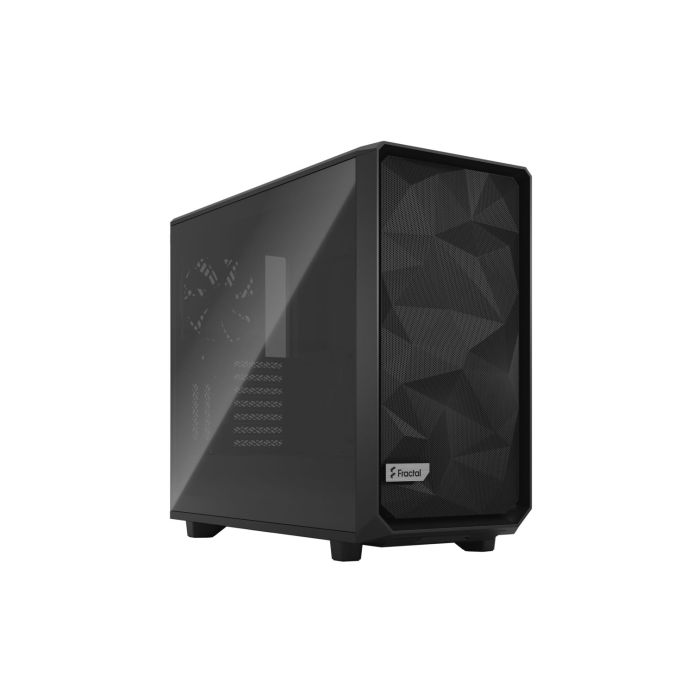

Fractal Design Meshify 2 Light TG Gaming Case w/ Light Tint Glass Window, E-ATX, Angular Mesh Front, 3 Fans, Fan Hub, Detachable Front Filter, USB-C

The new Meshify 2 is a classic evolved with focus on distinctive design, spacious interior and rugged good looks.


• Iconic angular mesh design provides filtered airflow with a bold, stealth-inspired aesthetic
• Spacious and extensively adaptable dual-layout interior easily accommodates large motherboards up to and including 285 mm E-ATX
• Support for radiators up to 360 mm in front, 420 mm up top, or 280 mm in the base in the default Open Layout
• Includes 6 HDD/SSD trays, 2 SSD brackets, and 12 universal Multibrackets for mounting up to 10 drives
• Expandable to 14 trays and 4 SSD brackets with 3 Multibrackets installed in the top and bottom for a max of up to 21 drives in Storage Layout
• New chassis design opens up to fully expose the case interior on three sides for totally unhindered installation and cable routing
• New front nylon filter that can be removed for increased airflow
• New front panel design with hinged removable mesh and tether-free bezel for easier access to front fan mounts
• Three front USB ports including one USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10Gbps
• Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans directly in line with cable channels along the edge of the case
• Outstanding cooling capacity with a total of nine 120/140 mm fan mounts and three preinstalled Dynamic X2 GP-14 fans
• Detachable PSU cable shield and integrated cable guides with velcro straps further simplify cable management behind the board
• Versatile Multibracket that converts any unused fan position to an HDD, SSD or pump mount
• Two vertical GPU slots for use with the Flex VRC-25 PCIe riser, available separately
• Easy-to-clean high airflow nylon filters on the front, top and base with full PSU coverage and convenient front access
• Ventilated PSU shroud with two-part removable cover for optimal cable concealment and front radiator support
• Tool-less, top-latching side panels allow quick access while preventing accidental drops
• Bridgeless expansion slots ensure obstruction-free connections for easier installation and hookup

Description

Specification

• Form Factor: E-ATX
• #Hide#Small Form Factor: No
• Power Supply Wattage: No PSU
• Motherboard Support: "E-ATX (max 285mm), ATX, Micro ATX, Mini ITX"
• #Hide#Window(s): Yes (Window)
• Connectors / Controls: 1 x USB 3.1 Gen 2 Type-C
  2 x USB 3.0
  Audio I/O
  Power button
  Reset button
• Drive Bays: 6 x 3.5""/2.5"" - 14 positions total + 1 Multibracket
  2 2.5"" - 4 positions total
• Expansion Slots: 7 + 2 Expansion slots
• Cooling System: Included
  Front: 2 x Dynamic X2 GP-14 140mm fans
  Rear: 1 x Dynamic X2 GP-14 140mm fan

  Fan Mounts
  Front: 3 x 120 / 140 mm
  Top: 3 x 120 / 140 mm
  Rear: 1 x 120 / 140 mm
  Bottom: 2 x 120 / 140 mm
• .:
  Water Cooling options:
  Front: Up to 360 / 280 mm radiator
  Top: Up to 360 / 420 mm
  Rear: 120 mm radiator
  Bottom: Up to 240 / 280 mm radiator
• Colour: Black
• Material: Left side panel: Light Tempered Glass
  Right side panel: Steel
• Compatability: GFX Card:
  Storage layout: 315 mm
  Open layout: 491 mm (467 mm w/ front fan)

  Max CPU Cooler:
  185 mm

  PSU:
  250 mm (with HDD cage installed)
• Weight/Dimensions: 10.1 kg
  (LxWxH) 542 x 240 x 474 mm
  w/o feet/protrusions/screws: 541 x 240 x 454 mm
• Additional Features: See Overview / Video
• Accessories: User manual
  Large accessory box - HDD trays
  Small accessory box
• Package Weight: 12.9000 kg
• Warranty: 2 Years
