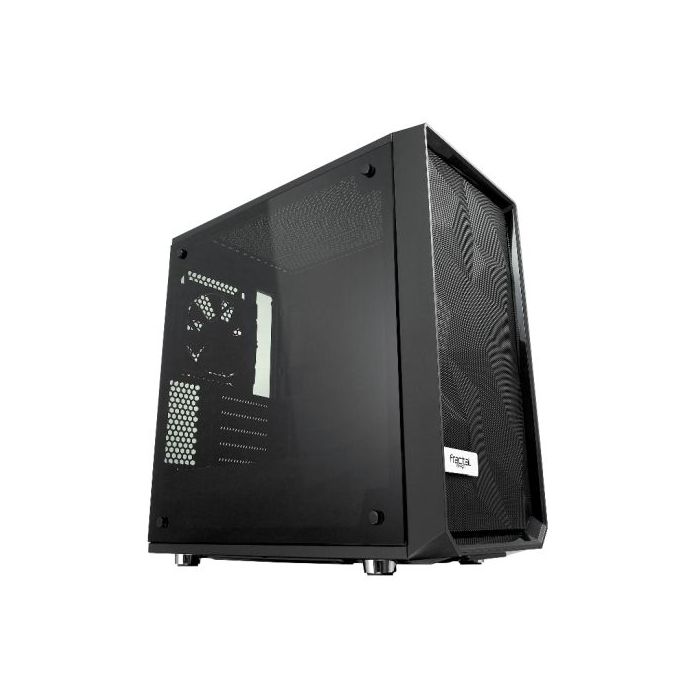

Fractal Design Meshify C Mini Dark TG Gaming Case w/ Dark Glass Window, Micro ATX, Angular Mesh Front, 2 Fans, Full Length PSU Shroud, 315mm GPU Support
£63.99
incl. VAT
+ Free Shipping
Out of stock
SKU
SPTECH-CAM-FRMECMIDTG
Fractal Design Meshify C Mini Dark TG Gaming Case w/ Dark Glass Window, Micro ATX, Angular Mesh Front, 2 Fans, Full Length PSU Shroud, 315mm GPU Support
Meshify strikes an aggressive pose in the Fractal Design lineup with unparalleled cooling performance and a defiant new look. Like black diamond facets, the angular asymmetry of the Meshify C Mini – Dark TG carves a space uniquely its own as a new force in high-airflow design.
- Streamlined high-airflow design
- The performance and capacity of a larger tower in a remarkably compact mATX designed tower
- Angular mesh front panel maximizes air intake
- Tinted tempered glass side panel for a clean looking exterior with full interior visibility
- Distinctive styling with stealthy black-on-black aesthetic
- Flexible storage options with room for up to 5 drives
- Sturdy steel drive trays with vibration-dampening rubber grommets cushion hard drives for smooth, quiet and reliable operation
- Two preinstalled Fractal Design Dynamic X2 GP-12 120 mm fans deliver optimum airflow with minimal noise
- Open interior layout creates an unobstructed airflow path from front intake to rear exhaust
- Easy-to-clean filters on the front, top and base with full PSU coverage and convenient front access
- Full length power supply shroud conceals drive cage and excess cabling for unrestricted airflow and a clean looking interior
- Up to 35 mm of space behind motherboard plate with grommeted pass-throughs for clean cable routing
Significantly smaller, but just as cool
Tempered glass with a distinctive tint completes the stealth-inspired black-on-black aesthetic with exceptional style.
The Meshify C Mini – Dark TG has a remarkably compact footprint with the high-end component support of a larger tower, and with six fan mounts and multi-radiator liquid cooling capability, it has the cooling capacity to match. When performance is top priority and compromise is not an option, Meshify has you covered in style.
Conceal up to five storage devices with an adjustable and removable drive cage beneath the PSU shroud plus dedicated SSD mounts behind the motherboard tray.
Seven total fan positions allow for extensive air cooling. Two Fractal Design Dynamic X2 GP-12 fans come preinstalled for maximum airflow, minimal noise and 100,000 hour life expectancy.
Streamlined high-airflow design
- Angular mesh front panel maximizes air intake
- Two preinstalled Fractal Design Dynamic X2 GP-12 120 mm fans deliver optimum airflow with minimal noise
- Open interior layout creates an unobstructed airflow path from front intake to rear exhaust
- Flexible storage options with room for up to five drives
Open to suggestions
- Sturdy steel drive trays with vibration-dampening rubber grommets cushion hard drives for smooth, quiet and reliable operation
- Full length power supply shroud conceals drive cage and excess cabling for unrestricted airflow and a clean looking interior
- Up to 35 mm of space behind motherboard plate with grommeted pass-throughs for clean cable routing
Room for flexibility
Conceal up to five storage devices with an adjustable and removable drive cage beneath the PSU shroud plus dedicated SSD mounts behind the motherboard tray.
- Sturdy steel drive trays with vibration-dampening rubber grommets cushion hard drives for smooth, quiet and reliable operation
- Flexible storage options with room for up to five drives
- Up to 35 mm of space behind motherboard plate with grommeted pass-throughs for clean cable routing
Improved air cooling
Seven total fan positions allow for extensive air cooling. Two Fractal Design Dynamic X2 GP-12 fans come preinstalled for maximum airflow, minimal noise and 100,000 hour life expectancy.
- Whatever your liquid cooling ambitions may be, Meshify C can make it happen with support for radiators up to 280 mm in the front and 240 mm up top.
- Open interior layout creates an unobstructed airflow path from front intake to rear exhaust.
- Even the largest enthusiast-class GPUs leave plenty of room for thick dual-fan rads in the front. The adjustable drive cage can be moved or removed to fit even the lengthiest heavy-duty PSUs.
Description
Specification
- Form Factor: Micro ATX
- #Hide#Small Form Factor: No
- Power Supply Wattage: No PSU
- Motherboard Support: "Micro ATX, Mini ITX"
- #Hide#Window(s): Yes (Window)
- Connectors / Controls: 2 x USB 3.0
Audio I/O
Power button
Reset button - Drive Bays: 2 x 3.5""/2.5""
3 x 2.5"" - Expansion Slots: 5 Expansion slots
- Cooling System: Included
Front: 1 x Dynamic X2 GP-12 120mm fan
Rear: 1 x Dynamic X2 GP-12 120mm fan
Fan Mounts
Front: 3 x 120 / 2 x 140 mm
Top: 2 x 120 / 140 mm
Rear: 1 x 120 mm
Bottom: 1 x 120 mm - .:
Water Cooling options:
Front: Up to 240 / 280 mm radiator (max width 144 mm)
Top: Up to 240 mm (max component height on board 40 mm)
Rear: 120 mm radiator (max width 125 mm) - Colour: Black
- Material: Left side panel: Tempered glass panel
Right side panel: Steel - Compatability: GFX Card:
315 mm with front fan mounted
Max CPU Cooler:
172 mm
PSU:
175 mm - Weight/Dimensions: 6.28 kg
(LxWxH) 395 x 212 x 399 mm
w feet/protrusions/screws: 409 x 217 x 412 mm - Additional Features: See Overview / Video
- Accessories: User manual
Accessory box
Top filter - Package Weight: 6.6500 kg
- Warranty: 2 Years
| Specifications | Description Specification
|
|---|
