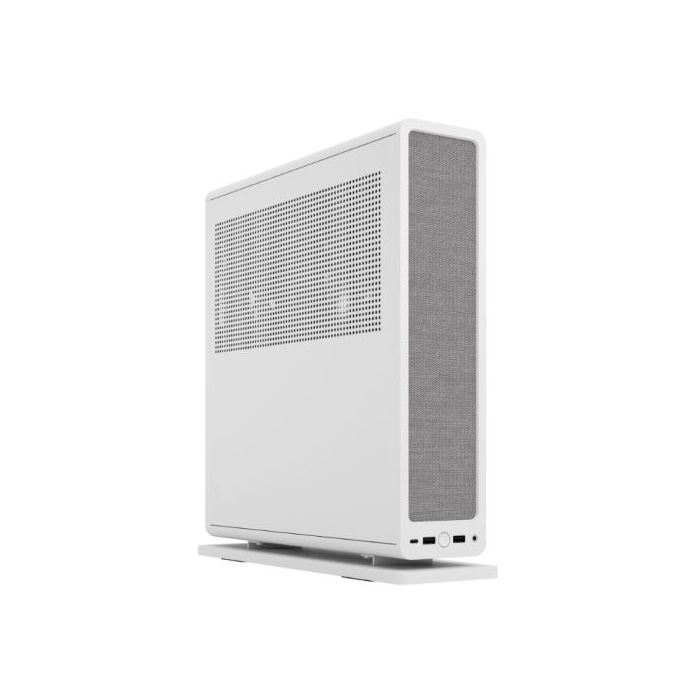

Fractal Design Ridge White SFF Console-Type Case, Mini ITX, Requires SFX/SFX-L PSU, 2 Fans, PCIe 4.0 Riser Card, USB-C, Horizontal/Vertical Orientation

Name: Fractal Design Ridge White SFF Console-Type Case, Mini ITX, Requires SFX/SFX-L PSU, 2 Fans, PCIe 4.0 Riser Card, USB-C, Horizontal/Vertical Orientation
Brand: Fractal Design Ridge White SFF Console-Type Case, Mini ITX, Requires SFX/SFX-L PSU, 2 Fans, PCIe 4.0 Riser Card, USB-C, Horizontal/Vertical Orientation
SKU: SPTECH-CAI-FRRID-WV2
Price: 119.99 GBP
Availability: OutOfStock

Be the first to review this product

£119.99 incl. VAT + Free Shipping

Out of stock

SKU

SPTECH-CAI-FRRID-WV2

Fractal Design Ridge White SFF Console-Type Case, Mini ITX, Requires SFX/SFX-L PSU, 2 Fans, PCIe 4.0 Riser Card, USB-C, Horizontal/Vertical Orientation

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Form Factor: Mini ITX
#Hide#Small Form Factor: Yes (SFF)
Power Supply Wattage: No PSU
Motherboard Support: Mini ITX
#Hide#Window(s): No
Connectors / Controls: 1 x USB 3.1 Gen 2 Type-C
2 x USB 3.0
1 x Combo jack – Audio/Microphone
Power button
Drive Bays: "Dedicated 2.5"" drive mounts: 4x included, 4x positions total"
Expansion Slots: 3-slot
Cooling System: Included
Side: 2 x 140 mm PWM Aspect fans

Fan Mounts
Side: 2 x 120/140 mm
Top: 3 x 80 mm
.:
Radiator options:
Side:
120 mm when <175mm long GPUs are installed
280 mm with no GPU installed
Colour: White
Material: 6 mm anodized and CNCd aluminium front
Left side panel: steel
Right side panel: steel
Compatability: GPU max length:
325 mm with SSD installed
335 mm without SSD installed

GPU max height:
125 mm with top fan(s) installed
141 mm without top fan(s)

GPU max thickness:
57 mm with 2x 140 mm fans installed
82 mm without side fans

CPU cooler max height:
70 mm

PSU max length:
SFX & SFX-L supported
Weight/Dimensions: 4.3 kg
Vertical (LxWxH): 374 x 395.4 x 110 mm
Horizontal (LxWxH): 360 x 115 x 375 mm
w/o feet/protrusions/screws: 355 x 375 x 94.6 mm
Additional Features: See Overview
Accessories: Accessory box
Manual
Package Weight: 5.9000 kg
Warranty: 2 Years

More Information

More Information
Specifications	*Carefully designed to occupy as little desktop space as possible, the discreet Ridge blends in as easily in the den as it does in the living room.* This flexible SFF case gives you a lot of creative freedom when building your system. For example, you can use a 280mm radiator with no GPU installed or a 120mm radiator if the GPU is 175mm long or less, a 57mm thick GPU with the included 2x 140 mm fans and even a 70 mm CPU cooler. All panels are ventilated, enabling the Ridge to run much cooler than other cases its size – and the front fabric can be swapped out fast to make the case truly your own. Compact SFF console-type case All panels come off for maximum accessibility 6 mm anodized and CNCd aluminum front PCIe 4.0 riser card included Comes with 2x 140 mm PWM Aspect fans installed Can be placed in both horizontal and vertical orientation Excellent GPU Cooling Front I/O with 2x USB 3.0; 1x USB-C and Combo jack Ventilated side, top and bottom panels Inch-perfect efficiency Meticulously engineered to maximize its capability while minimizing its footprint Small form factor case with a volume of 12.6 liters Supports GPUs up to a length of 335 mm Horizontal or vertical Multiple feet configurations allow for both horizontal and vertical orientation Elevate any gaming desk, workspace or entertainment area Unrivalled access Remove any panel to gain easy access to every side of your build All-around ventilation Ventilated on all sides to maximize its cooling potential Comes with 2x 140 mm PWM Aspect fans pre-installed Supports 2x 120/140 mm and 3x 80 mm fans Well-balanced design Stylish fabric front with CNC machined aluminum frame Features a Power LED bar in front Type-C interface Front I/O comes with 2x USB 3.0, 1x USB type-C and a combined mic and headphone jack Smart configurations Comes with our own PCI-e 4.0 riser card pre-installed Four 2.5” drive mounts included
