Kingston 16GB, DDR4, 3200MHz PC4-25600, CL22, SODIMM Memory

Be the first to review this product

£31.99 incl. VAT + Free Shipping

In stock

SKU

SPTECH-D4SO16G32KVR22

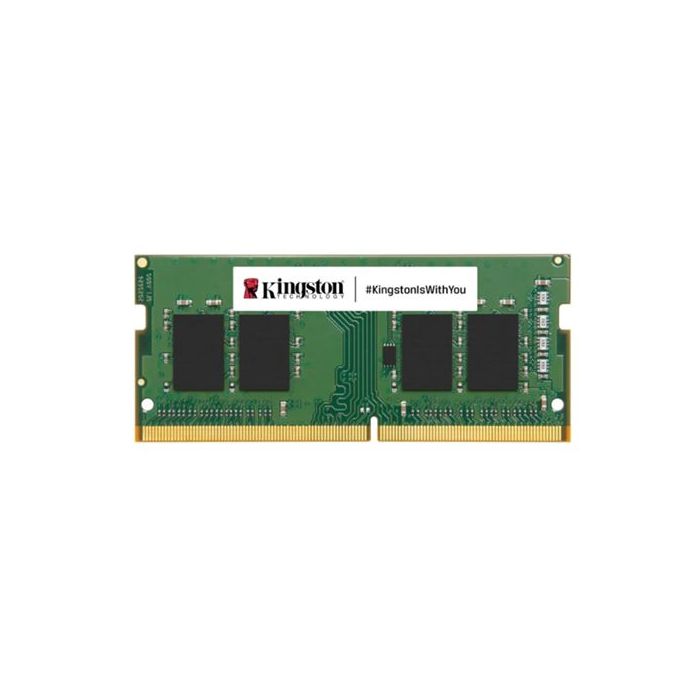

Kingston 16GB, DDR4, 3200MHz PC4-25600, CL22, SODIMM Memory

Skip to the end of the images gallery

main product photo

Skip to the beginning of the images gallery

Series: Kingston ValueRAM
DDR Type: SODIMM DDR4
Size: 1 x 16GB
#Hide#Individual Module Size: 16GB
Speed: 3200 MHz
Compliance: PC4-25600
Pins: 260-pin
CAS Latency: CL22
Data Integrity Check: Non-ECC
Voltage: 1.2V Typical
Additional Information: See Overview
Package Type: Retail
Package Weight: 0.0225 kg
Warranty: Lifetime

More Information

More Information
Specifications	16GB 1Rx8 2G x 64-Bit PC4-3200 CL22 260-Pin SODIMM ValueRAM's KVR32S22S8/16 is a 2G x 64-bit (16GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx8, non-ECC, memory module, based on eight 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. This 260-pin DIMM uses gold contact fingers. Power Supply: VDD = 1.2V Typical VDDQ = 1.2V Typical VPP = 2.5V Typical VDDSPD = 2.2V to 3.6V Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals Low-power auto self refresh (LPASR) Data bus inversion (DBI) for data bus On-die VREFDQ generation and calibration Single-rank On-board I2 serial presence-detect (SPD) EEPROM 16 internal banks; 4 groups of 4 banks each Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS) Selectable BC4 or BL8 on-the-fly (OTF) Fly-by topology Terminated control command and address bus PCB: Height 1.18" (30.00mm) RoHS Compliant and Halogen-Free
