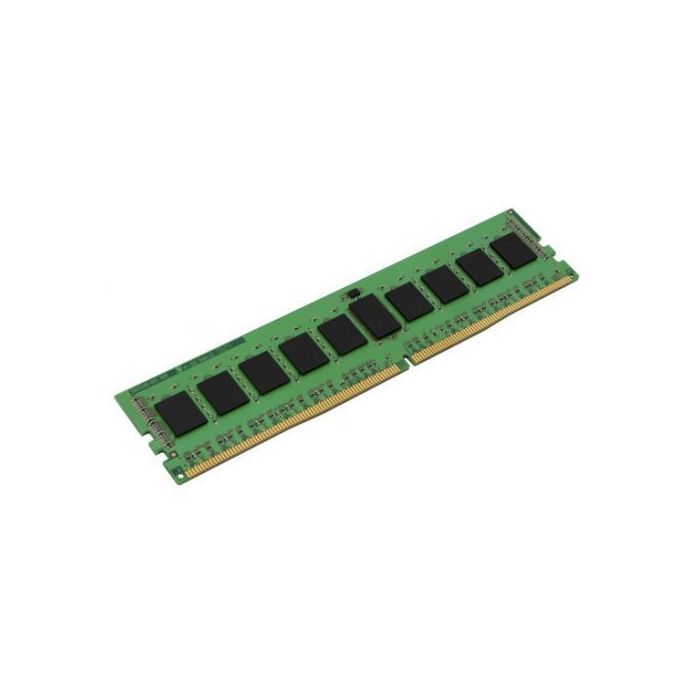

Kingston 4GB, DDR4, 2666MHz PC4-21300, CL19, DIMM Memory
£22.99
incl. VAT
+ Free Shipping
In stock
SKU
SPTECH-D44G26KVR19
Kingston 4GB, DDR4, 2666MHz PC4-21300, CL19, DIMM Memory
- Series: Kingston ValueRAM
- DDR Type: DDR4
- Size: 1 x 4GB
- #Hide#Individual Module Size: 4GB
- #Hide#Total Capacity: 4GB Total
- Speed: 2666 MHz
- Compliance: PC4-21300
- Pins: 288-pin
- CAS Latency: CL19
- Data Integrity Check: Non-ECC
- Voltage: 1.2V
- Timings: 19-19-19
- Heatsink: No
- #Hide#LED Lighting: No
- Additional Information: See Overview
- Package Type: Retail
- Package Weight: 0.0225 kg
- Warranty: Lifetime
| Specifications | This document describes ValueRAM's KVR26N19S6/4 is a 512M x 64-bit (4GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM), 1Rx16, memory module, based on four 512M x 16-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of 19-19-19 at 1.2V. Each 288-pin DIMM uses gold contact fingers. • Power Supply: VDD = 1.2V Typical • VDDQ = 1.2V Typical • VPP = 2.5V Typical • VDDSPD = 2.2V to 3.6V • Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals • Low-power auto self refresh (LPASR) • Data bus inversion (DBI) for data bus • On-die VREFDQ generation and calibration • Single-rank • On-board I2 serial presence-detect (SPD) EEPROM • 8 internal banks; 2 groups of 4 banks each • Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS) • Selectable BC4 or BL8 on-the-fly (OTF) • Fly-by topology • Terminated control command and address bus • PCB: Height 1.23” (31.25mm) • RoHS Compliant and Halogen-Free |
|---|
