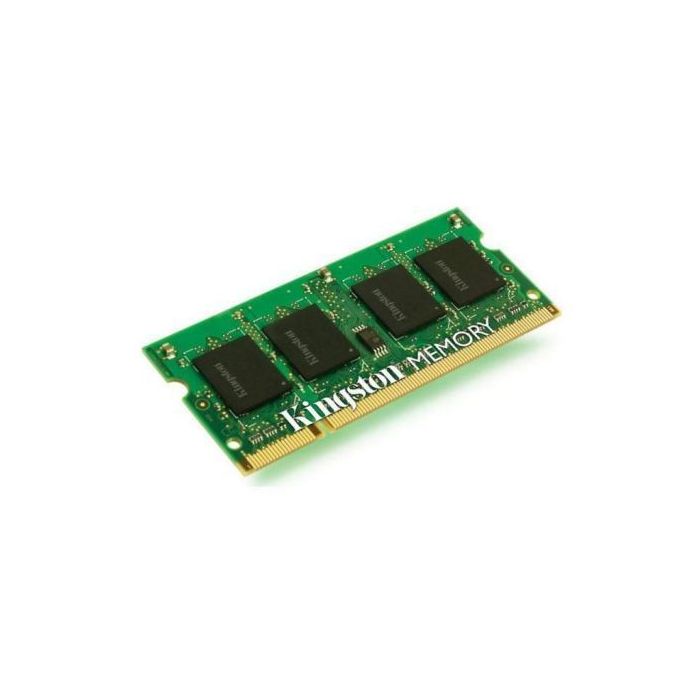

Kingston 8GB, DDR3L, 1600MHz PC3L-12800, CL11, SODIMM Memory *Low Voltage 1.35V*
£37.99
incl. VAT
+ Free Shipping
Out of stock
SKU
SPTECH-D3SO-8G1600KING11-LV
Kingston 8GB, DDR3L, 1600MHz PC3L-12800, CL11, SODIMM Memory *Low Voltage 1.35V*
- Series: Kingston ValueRAM
- DDR Type: SODIMM DDR3
- Size: 1 x 8GB
- #Hide#Individual Module Size: 8GB
- Speed: 1600 MHz
- Compliance: PC3L-12800
- Pins: 204-pin
- CAS Latency: CL11
- Data Integrity Check: Non-ECC
- Low Voltage: Yes
- Voltage: 1.35V
- Additional Information: Unbuffered
- Package Type: Blister Pack
- Package Weight: 0.0690 kg
- Warranty: Lifetime
| Specifications | KVR16LS11/8 8GB 2Rx8 1G x 64-Bit PC3L-12800 CL11 204-Pin SODIMM ValueRAM's 1G x 64-bit (8GB) DDR3L-1600 CL11 SDRAM (Synchronous DRAM), 2Rx8, low voltage, memory module, based on sixteen 512M x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR3-1600 timing of 11-11-11 at 1.35V or 1.5V. This 204-pin SODIMM uses gold contact fingers. Features • JEDEC standard 1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~ 1.575V) Power Supply • VDDQ = 1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~ 1.575V) • 800MHz fCK for 1600Mb/sec/pin • 8 independent internal bank • Programmable CAS Latency: 11, 10, 9, 8, 7, 6 • Programmable Additive Latency: 0, CL - 2, or CL - 1 clock • 8-bit pre-fetch • Burst Length: 8 (Interleave without any limit, sequential with starting address “000” only), 4 with tCCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS] • Bi-directional Differential Data Strobe • Internal(self) calibration : Internal self calibration through ZQ pin (RZQ : 240 ohm ± 1%) • On Die Termination using ODT pin • Average Refresh Period 7.8us at lower than TCASE 85°C, 3.9us at 85°C < TCASE < 95°C • Asynchronous Reset • PCB: Height 1.18” (30mm), double sided component |
|---|
