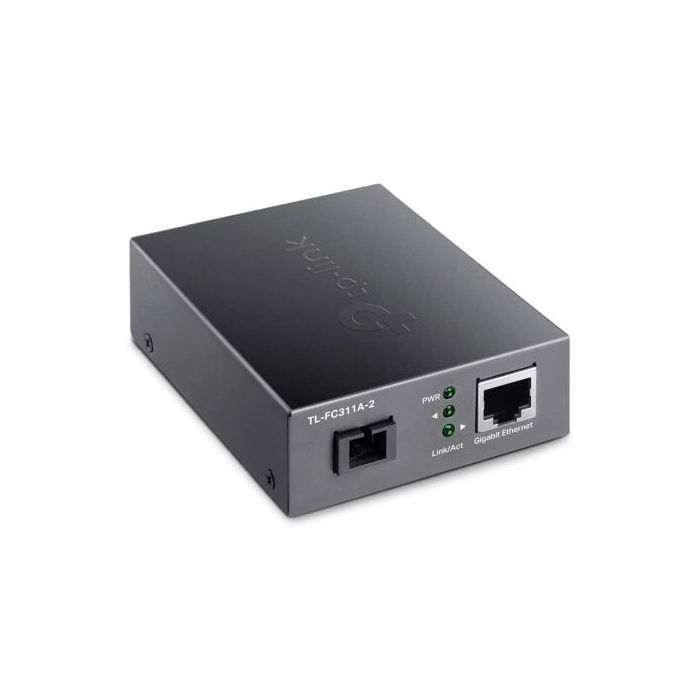

LINK TL-FC311A-2 Gigabit WDM Media Converter, Fiber up to 2km, Auto-Negotiation RJ45 Port, GB SC Fiber Port, 1550 nm TX, 1310 nm RX

Name: LINK TL-FC311A-2 Gigabit WDM Media Converter, Fiber up to 2km, Auto-Negotiation RJ45 Port, GB SC Fiber Port, 1550 nm TX, 1310 nm RX
Brand: LINK TL-FC311A-2 Gigabit WDM Media Converter, Fiber up to 2km, Auto-Negotiation RJ45 Port, GB SC Fiber Port, 1550 nm TX, 1310 nm RX
SKU: SPTECH-CON-TL-FC311A-2
Price: 27.99 GBP
Availability: OutOfStock

Be the first to review this product

£27.99 incl. VAT + Free Shipping

Out of stock

SKU

SPTECH-CON-TL-FC311A-2

LINK TL-FC311A-2 Gigabit WDM Media Converter, Fiber up to 2km, Auto-Negotiation RJ45 Port, GB SC Fiber Port, 1550 nm TX, 1310 nm RX

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Type: WDM Media Converter
Enclosure Type: External
Basic Functions: "Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
Transmitting and receiving data on one single fiber
9/125 um single-mode fiber (up to 2 km)
Single-mode Fiber
UTP category 5, 5e cable (maximum 100m)"
Ports: 1 x Gigabit SC Fiber Port
1 x 10/100/1000 Mbps RJ45 Port (Auto MDI/MDIX)
Standards and Protocols: "IEEE 802.3i, 802.3u, 802.3ab, 802.3z"
Wave Length: 1550nm Tx/1310nm Rx
Transmission Distance: 2km
LED Indicators: "PWR, Link/Act"
Dimensions (WxDxH): 94.5 x 73.0 x 27.0 mm
Power Supply: External Power Adapter: 5 V/0.6 A
Environment (C): Operating Temperature: 0C to 50C (32F to 122F)
Storage Temperature: -40C to 70C (-40F to 158F)
Operating Humidity: 10% to 90% RH non-condensing
Storage Humidity: 5% to 90% RH non-condensing
Package Type: Retail
Package Weight: 0.3500 kg
Warranty: Limited Lifetime

More Information

More Information
Specifications	Gigabit WDM Media Converter 1x 10/100/1000Mbps Auto-Negotiation RJ45 port supports Auto-MDI/MDIX Auto-negotiation of Half-Duplex/Full-Duplex transfer mode Adopts WDM technology, transmitting and receiving data on one single fiber Extends fiber distance up to 2 km What This Product Does TL-FC311A-2 is a gigabit media converter, providing a gigabit RJ-45 port and a gigabit SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking. How This Product Works TL-FC311A-2 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 2 km with only a single mode fiber, which saves half of the cable deployment cost for customers. TL-FC311A-2 transmits data at 1550 nm wavelength and receives data at 1310 nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the TL-FC311A-2 should send data at a wavelength of 1310 nm and receive data at a wavelength of 1550 nm. TP-Link another media converter TL-FC311B-2 is one of the products that can cooperate with TL-FC311A-2. Other Features Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link's TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.
