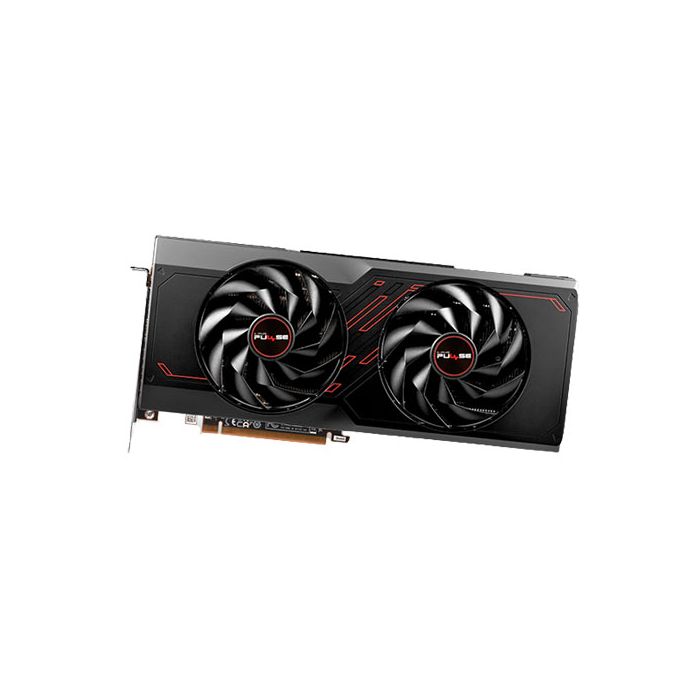

Sapphire PULSE RX7700 XT, PCIe4, 12GB DDR6, 2 HDMI, 2 DP, 2544MHz Clock
£437.99
incl. VAT
+ Free Shipping
Out of stock
SKU
SPTECH-RADRX77XT12SPPULSE
Sapphire PULSE RX7700 XT, PCIe4, 12GB DDR6, 2 HDMI, 2 DP, 2544MHz Clock
- Chipset Manufacturer: AMD
- Interface: PCI Express 4.0
- Graphics Chipset: AMD RX 7700 XT
- Memory Size: 12GB
- Memory Type: DDR6
- Memory Interface: 192-bit
- Core Clock: Boost Clock: Up to 2544 MHz
Game Clock: Up to 2171 MHz - Memory Clock: 18 Gbps
- CUDA Cores / Stream Processors: 3456 Stream Processors
- Outputs: 2 x HDMI
2 x DisplayPort - HDCP Support: Yes
- Resolution: Digital Max Resolution: 7680 x 4320
- Multi-GPU Support: None
- Max Display Support: 4
- Cooling: Optimized Composite Heatpipe
Angular Velocity Fan Blade
Two-Ball Bearing Fans
High TG Copper PCB
Optimized Composite Heatpipe
Dual-X Cooling Technology
Intelligent Fan Control
Precision Fan Control
Metal Backplate - PSU Requirements: 700W or greater recommended
- Connectors Required: 2 x 8-pin PCIe Power
- Additional Features: See Overview
- Dimensions: 280 x 128.75 x 52.57 mm
- Slot Size: 2.5 Slot
- Package Type: Retail
- #Hide#HDMI: Yes (HDMI)
- #Hide#DisplayPort: Yes (DisplayPort)
- Package Weight: 1.8000 kg
- Warranty: 3 Years
| Specifications | PULSE AMD Radeon RX 7700 XT 12GB
Digital Power Design SAPPHIRE NITRO+ & PULSE AMD Radeon RX 7700 Series are designed with digital power which provides accurate power control and excellent power efficiency Ultra High Performance Conductive Polymer Aluminum Capacitor The Ultra High Performance Conductive Polymer Aluminum Capacitor has a small PCB foot print but high volumetric capacitance that makes 14-phase power possible on the RX 7700 series graphics card. The capacitor offers stable capacitance at a high frequency and temperature with very low signal noise, ensuring the stability and reliability of the product. High TG Copper PCB The GPU is mounted on to the high-density 14 layer 2oz Copper and high TG PCB to match the rapid speed, high current and increased power requirement of the GPU and memory to guarantee high stability of the PCB during operation. Angular Velocity Fan Blade The Angular Velocity Fan Blade provides a double layer of downward air pressure which alongside the air pressure on the outer ring of the Axial fan, results in up to 44% more downward air pressure and up to 19% more airflow for a quieter and cooler operation when compared to the previous generations. Optimized Composite Heatpipe The composite heatpipes are fine-tuned for each individual cooling design with optimal heat flow, efficiently and evenly spreading out the heat to the entire cooling module. Fuse Protection In order to protect your card, the SAPPHIRE cards have fuse protection built into the circuit of the external PCI-E power connector to keep the components safe. Two-Ball Bearing These feature Dual Ball bearing fans, which have an approximately 85% longer lifespan than sleeve bearings in our tests. The improvements to the fan blades means the solution is up to 10% quieter than the previous generation. |
|---|
