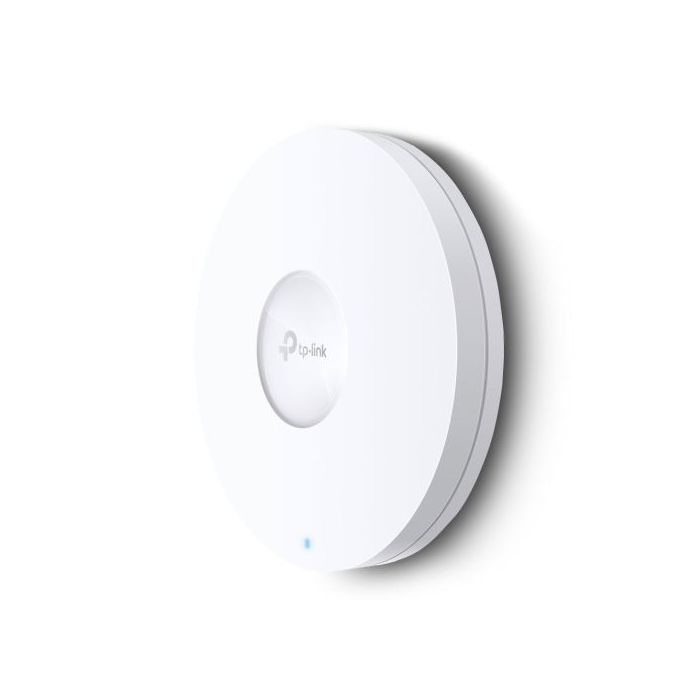

TP-LINK EAP660 HD AX3600 Dual Band Wireless Multi-Gigabit Ceiling Mount Access Point, PoE+, 2.5GB LAN, MU-MIMO, Free Software

Name: TP-LINK EAP660 HD AX3600 Dual Band Wireless Multi-Gigabit Ceiling Mount Access Point, PoE+, 2.5GB LAN, MU-MIMO, Free Software
Brand: TP-LINK EAP660 HD AX3600 Dual Band Wireless Multi-Gigabit Ceiling Mount Access Point, PoE+, 2.5GB LAN, MU-MIMO, Free Software
SKU: SPTECH-AP-3600TPEAP660HD
Price: 212.99 GBP
Availability: InStock

Be the first to review this product

£212.99 incl. VAT + Free Shipping

In stock

SKU

SPTECH-AP-3600TPEAP660HD

TP-LINK EAP660 HD AX3600 Dual Band Wireless Multi-Gigabit Ceiling Mount Access Point, PoE+, 2.5GB LAN, MU-MIMO, Free Software

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Primary Function: Access Point
#Hide#Access Point Mode: Yes (Access Point Mode)
Max Signal Rate: 2402 Mbps
Dual Band: Yes (Dual Band)
Interface(s): 1 x 2.5 Gbps Ethernet Port (supports IEEE802.3at PoE)
Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
Antenna: 2.4 GHz: 4 x 5 dBi
5 GHz: 4 x 6 dBi
Button(s): Reset
Power Supply: 802.3at PoE
12 V DC
Power Consumption: 18.5 W
Dimensions (W x D x H): 243 x 243 x 64 mm
Weatherproof: No
Frequency: 5GHz: Up to 2402Mbps
2.4GHz: Up to 1148Mbps
Wireless Functions: "1024-QAM
4x Longer OFDM Symbol
OFDMA
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO
Seamless Roaming"
.: Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security: "Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise"
Quality of Service: QoS(WMM)
Management: "Omada App
Omada Cloud-Based Controller
Omada Hardware & Software Controller
Cloud Access
Email Alerts
LED ON/OFF Control
MAC Access Control
SNMP v1, v2c, v3
Local/Remote Syslog
SSH
HTTP/HTTPS
L3
Multi-site Management
Management VLAN"
Environment (°C): Operating Temperature: 0–40 C (32–104 F)
Storage Temperature: -40–70 C (-40–158 F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
Package Contents: EAP660 HD
Power Adapter
Ceiling/Wall Mounting Kits
Installation Guide
Package Type: Retail
Package Weight: 1.4000 kg
Warranty: Limited Lifetime

More Information

More Information
Specifications	*AX3600 Wireless Dual Band Multi-Gigabit Ceiling Mount Access Point* Ultra-Fast Wi-Fi 6 Speeds: Simultaneous 1148 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 3550 Mbps Wi-Fi speeds. High-Density Connectivity: 4x increased capacity to connect more devices simultaneously. Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring. Centralized Management: Cloud access and Omada app for ultra convenience and easy management. 2.5G Port: A 2.5 Gbps Ethernet port boosts total internet throughput. Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations. PoE+ Support: Supports Power over Ethernet (802.3at) for convenient deployment and installation. Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies. High-Density Connectivity with 4x Increased Capacity OFDMA and Uplink & Downlink MU-MIMO increase network capacity by up to 4x versus Wi-Fi 5 (802.11ac) in high-density environments to connect more devices simultaneously. Leverage multi-user capabilities and upgrade your business like never before. Blazing Fast Speed with 8 Spatial Streams The Omada Wi-Fi 6 Access Point features the latest 802.11ax technologies like 1024 QAM and Long OFDM Symbol, which allows the EAP to boost overall speeds up to 3550 Mbps (2402 Mbps on a 5 GHz band and 1148 Mbps on a 2.4 GHz band). With 8 spatial streams, multi-user throughput is incredibly increased to drive more applications. Omada SDN-Smarter Cloud Solution for Business Networking Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability. Optimized Wired Performance with 2.5 GE PoE+ Port Armed with a 2.5 Gigabit Ethernet Port, the EAP660 HD delivers exceptional multi-gigabit performance to support the insatiable demand for better and faster Wi-Fi. Compatibility with standard 802.3at PoE+ is ideal for flexible deployment. Seamless Roaming 802.11k/v roaming switches clients automatically to the AP with the optimal signal with a seamless transition when moving. This allows sensitive applications like VoIP and video conferences to go uninterrupted. Boost Network Efficiency in All Aspects With Rich Advanced Features Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections. Load Balance ensures large numbers of users have smooth network experiences in high-density business networks Airtime Fairness Increases average network throughput in heavily congested environments Secure Guest Network with Facebook Wi-Fi and SMS Login Guest Network provides elevated secure access to guests sharing your Wi-Fi network, with captive portal helping maintain only authorized guests to use the network. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and power up your business.
