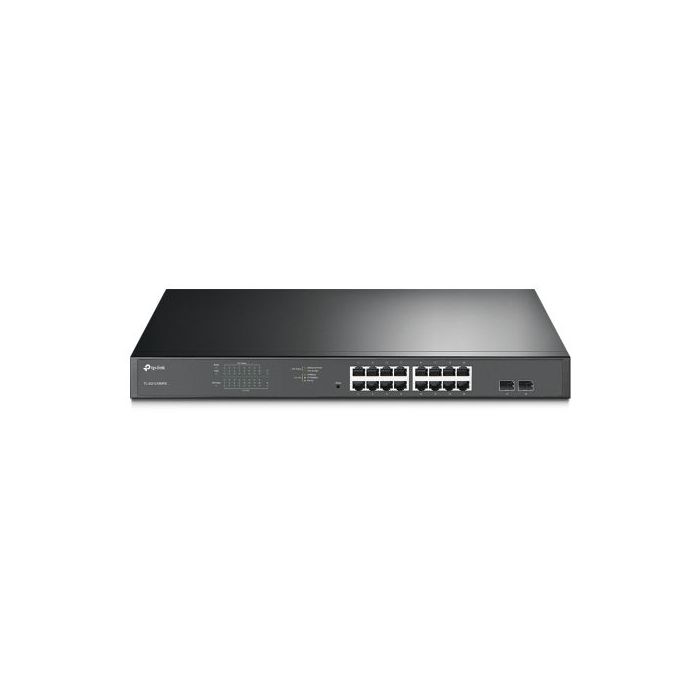

TP-LINK TL-SG1218MPE 16-Port Gigabit PoE+ Easy Smart Switch, 2 SFP Ports, Rackmountable
£173.99
incl. VAT
+ Free Shipping
In stock
SKU
SPTECH-SWI-16TPJETPOE1000
TP-LINK TL-SG1218MPE 16-Port Gigabit PoE+ Easy Smart Switch, 2 SFP Ports, Rackmountable
- Rackmountable: Yes
- Management: Yes
- Number of Ports: 16
- RJ45 Data Transfer Rate: 10/100/1000 Mbps
- Interface(s): 16 x 10/100/1000 Mbps RJ45 Ports
(Auto Negotiation/Auto MDI/MDIX)
2 x Gigabit SFP Ports - PoE Ports (RJ45): Standard: 802.3at/802.3af compliant
PoE+ Ports: 16 Ports
Power Supply: 192W - Standards and Protocols: "IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p" - Switching Capacity: 36Gbps
- Power Supply: "100-240V AC, 50/60 Hz"
- Dimensions: 440 x 180 x 44 mm
- Mac Address Table: 8K
- Port Forwarding: Yes
- Packet Forwarding Rate: 23.8 Mbps
- Jumbo Frame: 9 KB
- Advanced Functions: See Overview
- Quality of Service: Support Port-based 802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control - VLAN: Support up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN - Management: Web-based GUI
Easy Smart Configuration Utility - Environment: Operating Temperature: 0°C~50°C (32°F~122°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing - Package Contents: TL-SG1218MPE
Power Cord
Installation Guide
Resource CD
Rackmount Kit
Rubber Feet - Package Type: Retail
- Package Weight: 3.0500 kg
- Warranty: Limited Lifetime
- #Hide#POE: Yes
| Specifications | JetStream 16-Port Gigabit Easy Smart PoE+ Switch with 2 SFP Slots
Ideal for Surveillance TL-SG1218MPE complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget is up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems. Intelligent Power Management When total power consumption excels 192W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation. Advanced Functions for Higher Performance QoS For Smooth Online Experience Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free. IGMP Snooping Traffic Optimization for IPTV IGMP Snooping optimizes multimedia traffic delivery to ensure a better network experience especially for applications like IPTV. |
|---|
