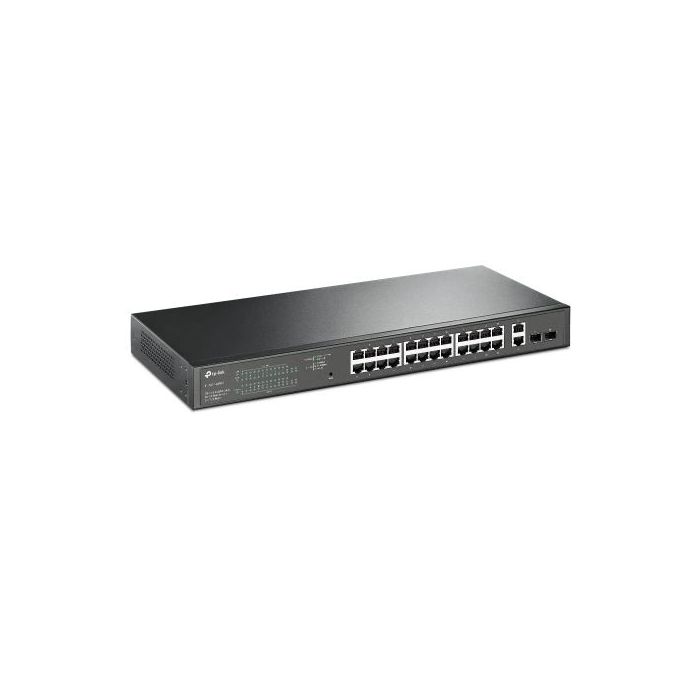

TP-LINK TL-SG1428PE 28-Port Gigabit PoE+ Easy Smart Switch, 24-Port PoE+, 2 SFP Ports, Rackmountable

Name: TP-LINK TL-SG1428PE 28-Port Gigabit PoE+ Easy Smart Switch, 24-Port PoE+, 2 SFP Ports, Rackmountable
Brand: TP-LINK TL-SG1428PE 28-Port Gigabit PoE+ Easy Smart Switch, 24-Port PoE+, 2 SFP Ports, Rackmountable
SKU: SPTECH-SWI-28TPGBEASYPOE
Price: 189.99 GBP
Availability: InStock

Be the first to review this product

£189.99 incl. VAT + Free Shipping

In stock

SKU

SPTECH-SWI-28TPGBEASYPOE

TP-LINK TL-SG1428PE 28-Port Gigabit PoE+ Easy Smart Switch, 24-Port PoE+, 2 SFP Ports, Rackmountable

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Rackmountable: Yes
Management: Smart
Number of Ports: 28
RJ45 Data Transfer Rate: 10/100/1000 Mbps
Interface(s): 26 x 10/100/1000 Mbps RJ45 Ports
2 x Gigabit SFP Ports
PoE Ports (RJ45): Standard: 802.3at/802.3af compliant
PoE+ Ports: 24 Ports
Power Supply: 250 W
Standards and Protocols: "IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p"
Switching Capacity: 56 Gbps
Power Supply: "100-240V AC, 50/60 Hz

Max Consumption:
27 W (220/50Hz. no PD connected)
304.7 W (220/50Hz. with 250 W PD connected)"
Dimensions: 440 x 220 x 44 mm
Mac Address Table: 8K
Packet Forwarding Rate: 41.7 Mbps
Jumbo Frame: 9 KB
Advanced Functions: See Overview
Quality of Service: Support Port-based 802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
Layer Features: L2 Features:
IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
PoE Auto Recovery
VLAN: Support up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Security: Physical security lock
Management: Web-Based GUI
Easy Smart Configuration Utility
Environment: Operating Temperature: 0°C~50°C (32°F~122°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing
Package Contents: TL-SG1428PE
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet
Package Type: Retail
Package Weight: 4.0000 kg
Warranty: Limited Lifetime
#Hide#POE: Yes

More Information

More Information
Specifications	*28-Port Gigabit Easy Smart Switch with 24-Port PoE+* 24 10/100/1000Mbps RJ45 PoE+ Ports Switch with 2 SFP Slots PoE power budget is up to 250 W, making it ideal for small to medium business surveillance systems Priority Mode helps to guarantee the quality of sensitive application like video monitoring PoE Auto Recovery enables system self-healing to guarantee the stable operation of PoE-connected devices QoS is for smooth internet-surfing experience and IGMP Snooping is capable of optimizing traffic for IPTV Intelligent power management can protect the switch from overload Multiple Application Scenarios The TL-SG1428PE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV. Dedicated 24 PoE+ Ports (250 W Budget) for Numerous Applications Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget for the 24x gigabit PoE+ ports makes it has a wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, etc. QoS for a Lag-Free Experience Ensures smooth traffic for latency-sensitive applications, such as voice and video IGMP Snooping for Multicast Optimization Ensures a better network experience, especially for applications like IPTV, by optimizing multimedia traffic delivery. VLAN for Security Helps to create a network with higher security and better overall performance by dividing the network into smaller groups Making Management Easy TL-SG1428PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1428PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS. System Self-Healing with PoE Auto Recovery The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart. Intelligent Power Management to Prevent Power Overload Automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply when the total PoE power consumption exceeds 250 W. This protects the device from power overload operation. Great Compatibility with PD Detection Automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged. Wide Operating Temperature with Good Heat Dissipation Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50C) with reliability. *PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.

Reviews

TP-LINK TL-SG1428PE 28-Port Gigabit PoE+ Easy Smart Switch, 24-Port PoE+, 2 SFP Ports, Rackmountable

28-Port Gigabit Easy Smart Switch with 24-Port PoE+
