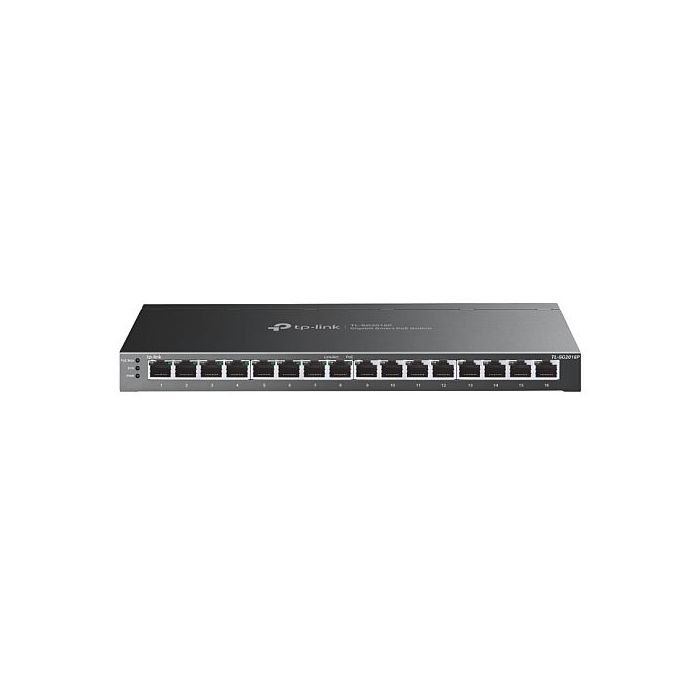

TP-LINK TL-SG2016P JetStream 16-Port Gigabit Smart Switch with 8-Port PoE+, Centralized Management

Name: TP-LINK TL-SG2016P JetStream 16-Port Gigabit Smart Switch with 8-Port PoE+, Centralized Management
Brand: TP-LINK TL-SG2016P JetStream 16-Port Gigabit Smart Switch with 8-Port PoE+, Centralized Management
SKU: SPTECH-SWI-16TPJETSMARTPOE-GB
Price: 154.99 GBP
Availability: OutOfStock

Be the first to review this product

£154.99 incl. VAT + Free Shipping

Out of stock

SKU

SPTECH-SWI-16TPJETSMARTPOE-GB

TP-LINK TL-SG2016P JetStream 16-Port Gigabit Smart Switch with 8-Port PoE+, Centralized Management

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Rackmountable: No
Managed: Smart
Number of Ports: 16
Max RJ45 Transfer Rate: 10/100/1000 Mbps
Interface(s): 16 x 10/100/1000 Mbps RJ45 Ports
Auto-Negotiation/Auto MDI/MDIX
PoE Ports (RJ45): Ports 1–8 Support 802.3at/af PoE+
Power Supply: 120 W
Bandwidth: 16 Gbps
Standards and Protocols: "IEEE 802.3i, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x"
Power Supply: External Power Adapter (Output: 53.5 VDC/ 1.31 A)
Dimensions: 286 x 111.7 x 25.4 mm
Mac Address Table: 8k
Jumbo Frame: 9 KB
Advanced Functions: See Overview
Quality of Service: 802.1p CoS/DSCP priority
8 priority queues
Priority Schedule Mode
Queue Weight Config
Bandwidth Control
Smoother Performance
Storm Control
Layer Features: "L2 and L2+:
DHCP Relay
DHCP L2 Relay
Link Aggregation
Spanning Tree Protocol
Loopback Detection
Flow Control
Mirroring
Device Link Detect Protocol (DLDP)
802.1ab LLDP/ LLDP-MED

L2 Multicast:
511 IPv4, IPv6 shared multicast groups
IGMP Snooping
Multicast VLAN Registration (MVR)
Multicast Filtering
MLD Snooping
Limited IP Multicast (256 profiles and 16 entries per profile)"
VLAN: VLAN Group - Max. 4K VLAN Groups
802.1Q tag VLAN
MAC VLAN: 12 Entries
Protocol VLAN
GVRP
Voice VLAN
Access Control: Support up to 230 entries
Time-Range
Time-based ACL
MAC ACL
IP ACL
IPv6 ACL
Combined ACL
Rule Operation
Policy Action
ACL Rules Binding
Actions for flows
Security: AAA
802.1X
IP/IPv6-MAC Binding
IP Source Guard
IPv6 Source Guard
DoS Defend
Static/Dynamic/Permanent Port Security
Broadcast/Multicast/Unicast Storm Control
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure CLI management with SSHv1/SSHv2
IP/Port/MAC-based access control
Management: "Require Omada Controllers:
Omada App
Centralized Management
Cloud Access
Zero-Touch Provisioning

Management Features:
Web-based GUI
Command Line Interface (CLI) through telnet
SNMPv1/v2c/v3
SNMP Trap/Inform
RMON (1,2,3,9 groups)
SDM Template
DHCP/BOOTP Client
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
SNTP
System Log"
Environment: Operating Temperature: 0–40°C (32–104°F)
Storage Temperature: -40–70°C (-40–158°F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
Package Contents: TL-SG2016P
Power Adapter
Installation Guide
Rubber Feet
Package Type: Retail
Package Weight: 2.3000 kg
Warranty: Limited Lifetime
#Hide#POE: Yes

More Information

More Information
Specifications	JetStream 16-Port Gigabit Smart Switch with 8-Port PoE+ 120 W PoE Budget: 8x 802.3at/af-compliant PoE+ ports with a total power supply of 120 W. Full Gigabit Ports:* 8x gigabit PoE+ ports and 8x gigabit non-PoE ports provide high-speed connections. Integrated into Omada SDN: Zero-Touch Provisioning, Centralized Cloud Management, and Intelligent Monitoring. Centralized Management: Cloud access and Omada app for ultra convenience and easy management. Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more. Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping. Multiple Application Scenarios The TL-SG2016P is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV. Power over Ethernet for Simplified Network Deployment** Features eight 802.3af/at compliant PoE+ ports, the switch supports up to 120 W total PoE power budget.* Designed to use a single Ethernet cable for both data and power transmission, it offers flexible deployment for PoE-supported devices such as wireless access points, IP cameras, and IP phones, lowering infrastructure costs for small businesses. Access Control List (ACL) ACL serves as a virtual admin, allowing all connected devices to obtain data in accordance with user-defined network rules and help you create the network regulations you need. QoS for Lag-Free Experience Designate the priority of traffic based on QoS, ensuring latency sensitive applications like voice and video, remain clear and lag-free. VLAN for Security Use VLAN to achieve logical grouping management of devices in different physical LANs, improve information security, and reduce data congestion. Omada SDN—Smarter Cloud Solution for Business Networking Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability. Hassle-Free Centralized Cloud Management: 100% centralized cloud management of whole network from different sites—all controlled from a single interface anywhere, anytime. Easy Management with the Omada App Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
