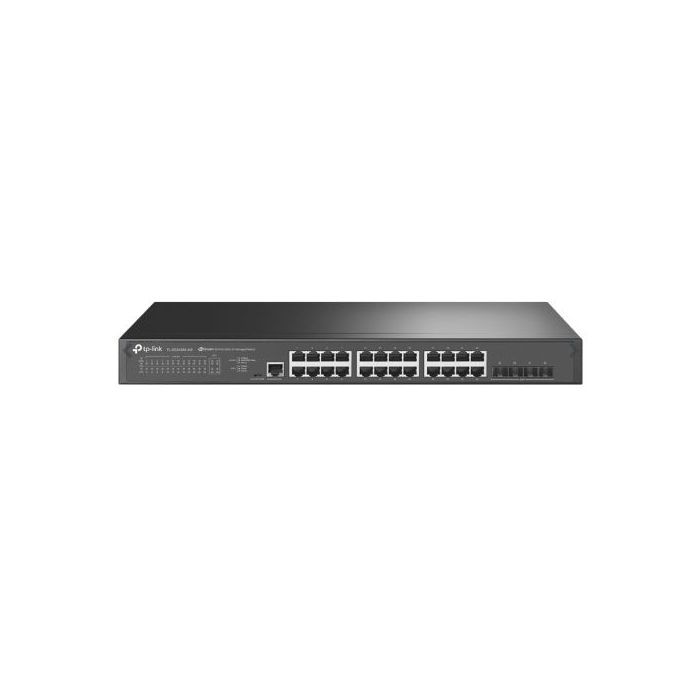

TP-LINK TL-SG3428X-M2 JetStream 24-Port 2.5GBASE-T L2+ Managed Switch with 4 10GE SFP+ Slots, PoE++, Rackmountable

Name: TP-LINK TL-SG3428X-M2 JetStream 24-Port 2.5GBASE-T L2+ Managed Switch with 4 10GE SFP+ Slots, PoE++, Rackmountable
Brand: TP-LINK TL-SG3428X-M2 JetStream 24-Port 2.5GBASE-T L2+ Managed Switch with 4 10GE SFP+ Slots, PoE++, Rackmountable
SKU: SPTECH-SWI-24TPJETL2XPOE-2.5G
Price: 488.99 GBP
Availability: OutOfStock

Be the first to review this product

£488.99 incl. VAT + Free Shipping

Out of stock

SKU

SPTECH-SWI-24TPJETL2XPOE-2.5G

TP-LINK TL-SG3428X-M2 JetStream 24-Port 2.5GBASE-T L2+ Managed Switch with 4 10GE SFP+ Slots, PoE++, Rackmountable

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Rackmountable: Yes
Managed: Yes
Number of Ports: 24
Max RJ45 Transfer Rate: 2.5 Gbps
#Hide#Max SFP Transfer Rate: 10G SFP
Interface(s): 24 x 2.5 Gbps RJ45 Ports
4 x 10G SFP+ Slots
1 x RJ45 Console Port
1 x Micro-USB Console Port
PoE Ports (RJ45): 8-Port PoE++ and 16-Port PoE+ 2.5 Gbps ports with up to 500W power budget
Switching Capacity: 200 Gbps
Power Supply: 100-240 V AC~50/60 Hz
Dimensions: (WxDxH) 440 x 180 x 44 mm
Mac Address Table: 32 K
Packet Forwarding Rate: 148.80 Mpps
Jumbo Frame: 9 KB
Advanced Functions: Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
Quality of Service: 8 priority queues
802.1p CoS/DSCP priority
Queue scheduling
Bandwidth Control
Smoother Performance
Action for Flows
Layer Features: L2 and L2+:
Link Aggregation
Spanning Tree Protocol
Loopback Detection
Flow Control
Mirroring

L2 Multicast:
IGMP Snooping
IGMP Authentication
MLD Snooping
MVR
Multicast Filtering: 256 profiles and 16 entries per profile

L3:
32 IPv4/IPv6 Interfaces
Static Routing
Static ARP
Proxy ARP
Gratuitous ARP
DHCP Server
DHCP Relay
DHCP L2 Relay
VLAN: "VLAN Group
802.1Q Tagged VLAN
MAC VLAN: 256 Entries
Protocol VLAN: Protocol Template 16, Protocol VLAN 16
GVRP
VLAN VPN (QinQ)
Voice VLAN"
Access Control: Time-based ACL
MAC ACL
IP ACL
Combined ACL
Packet Content ACL
IPv6 ACL
Policy
ACL apply to Port/VLAN
Security: IP-MAC-Port Binding
IPv6-MAC-Port Binding
DoS Defend
Static/Dynamic Port Security
Broadcast/Multicast/Unicast Storm Control
802.1X
AAA (including TACACS+)
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv1/SSHv2
IP/Port/MAC based access control
Management: "Require Omada Controllers:
Omada App
Centralized Management
Cloud Access
Zero-Touch Provisioning

Management Features:
Web-based GUI
Command Line Interface (CLI) through the console port, telnet
SNMP v1/v2c/v3
SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP AutoInstall
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
Password Recovery
SNTP
System Log"
Environment: Operating Temperature: 0–40°C (32–104°F)
Storage Temperature: -40–70°C (-40–158°F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
Package Contents: TL-SG3428X-M2 Switch
Power Cord
Quick Installation Guide
Rackmount Kit
Rubber Feet
Package Type: Retail
Package Weight: To be confirmed
Warranty: Limited Lifetime
#Hide#POE: Yes

More Information

More Information
Specifications	JetStream 24-Port 2.5GBASE-T L2+ Managed Switch with 4 10GE SFP+ Slots 2.5 Gbps Speeds: 24x 2.5 Gbps RJ45 ports offer high-speed and reliable connections to other switches and devices. 10G Lightning-Fast Uplink: 4x 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity. Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring. Centralized Management:* Cloud access and Omada app for ultra convenience and easy management. Static Routing: Helps route internal traffic for more efficient use of network resources. Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more. Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping. Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities Integrated into the Omada SDN Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring. 10G Lighting-Fast Uplink Enjoy high-bandwidth connectivity and non-blocking switching capacity with four 10 Gbps SFP+ slots. 2.5G PoE+ & PoE++ Ports 8-Port PoE++ and 16-Port PoE+ 2.5 Gbps ports with up to 500W power budget make it ideal for the deployment of Wi-Fi 6 APs. Abundant L2 and L2+ Features Supports a complete lineup of L2 and L2+ features including Static Routing, enterprise-level QoS and IGMP Snooping. Robust Security Strategies Helps protect LAN area investment with integrated IP-MAC-Port Binding, ACL, Port Security, 802.1X Authentication, and more.
