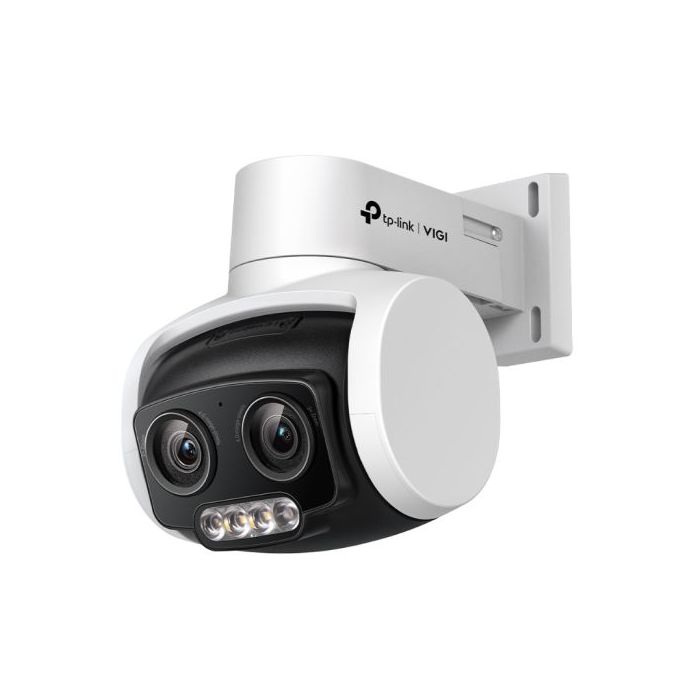

TP-LINK VIGI C540V VIGI 4MP Outdoor Full-Colour Dual-Lens Varifocal Pan Tilt Network Camera, PoE, 3x Zoom, Human & Vehicle Classification, H.265+

Name: TP-LINK VIGI C540V VIGI 4MP Outdoor Full-Colour Dual-Lens Varifocal Pan Tilt Network Camera, PoE, 3x Zoom, Human & Vehicle Classification, H.265+
Brand: TP-LINK VIGI C540V VIGI 4MP Outdoor Full-Colour Dual-Lens Varifocal Pan Tilt Network Camera, PoE, 3x Zoom, Human & Vehicle Classification, H.265+
SKU: SPTECH-WCA-VIGITPC540V
Price: 133.99 GBP
Availability: OutOfStock

Be the first to review this product

£133.99 incl. VAT + Free Shipping

Out of stock

SKU

SPTECH-WCA-VIGITPC540V

TP-LINK VIGI C540V VIGI 4MP Outdoor Full-Colour Dual-Lens Varifocal Pan Tilt Network Camera, PoE, 3x Zoom, Human & Vehicle Classification, H.265+

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Suitable for Outdoor: Yes
Wired/Wireless: Wired
Interface(s): "1 x RJ45 10/100M Self-Adaptive Ethernet Port, PoE"
Image Sensor: 1/3"" Progressive Scan CMOS
Resolution: "Main Stream:
2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720

Sub-Stream:
640x480, 352x288, 320x240"
Frame Rate: "Main Stream:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Sub-Stream:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

NOTE: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps"
Video Compression: Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
Lens: Focal Length: 4-12 mm (Mixed Zoom)
Aperture: F1.6
Lens Mount: M12*P 0.5
Viewing Angle: Diagonal FOV: 100°
Horizontal FOV: 84°
Vertical FOV: 46°
Pan/Tilt Range: Pan: 0° to 332°
Tilt: 0° to 120°
Day/Night Mechanism: IR Cut Filter
Minimum Illumination: "0.005 Lux; 0 Lux with IR/white light"
Video Streaming: Main Stream
Sub-Stream
Image Settings: "Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software"
Audio Features: Audio Communication: Two-Way Audio
Audio Input
Audio Output
Audio Compression
Audio Sampling Rate: 8KHz
Environment Noise Filtering
Audio Bit Rate: 64 Kbps(G.711 alaw)
Alarm & Event Management: "Smart Event:
Human & Vehicle Classification, Area Intrusion, Line-Crossing, People, Vehicle, Region Entering, Region Exiting, Object Abandoned, Object Removal, Loitering

Basic Event:
Motion, Video Tampering, Exception (Illegal Login)

Alarm Linkage:
Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing

Output Notification:
Message Push"
Network: "Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

Network Storage: NAS (NFS, SMB/ CIFS)

API: Open Network Video Interface (Profile S)

Simultaneous Live View: 3 Main Streams & 3 Sub-Streams

Client: VIGI App, VIGI Security Manager, VIGI NVR, Web

Cloud: Yes

ONVIF: Yes"
Security: "Network Security:
Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication"
Management: VIGI App
Power Supply: "12V DC +/- 5%, 5.5mm Coaxial Power Plug
PoE (802.3at, class 4)"
Weight/Dimensions: 0.43 kg
(LxWxH): 139 x 136 x 107 mm
Environment: IP66 Waterproof
Operating Temperature: -30–60°C
Storage Temperature: -40–60°C
Storage Humidity: 95% or Less (Non-Condensing)
Operating Humidity: 95% or Less (Non-Condensing)
Package Contents: VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories
Package Weight: To be confirmed
Warranty: 3 Years

More Information

More Information
Specifications	VIGI 4MP Outdoor Full-Colour Dual-Lens Varifocal Pan Tilt Network Camera 4MP Super-High Definition: 4MP offers more than enough pixels to pick up some of the more discreet details. 24h Full-Colour: Captures 24 hours of full-colour details, even in pitch-black conditions, thanks to large-aperture lens, a high-sensitivity sensor, and 4x attached supplemental lights. 3x Zoom: Allows for closer viewing of objects in expansive areas. Instant Zoom: Zooming is instant without suffering from delays and image dragging. Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications. Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, removes/abandons objects, or enters/exits certain region. Powerful Pan Tilt: Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve security within your property. Active Defense: Warn potential intruders instantly with sound and light when abnormal events. Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere. H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space. IP66 Waterproof: Reliable IP66 for stable outdoor performance. Flexible Management and Storage: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each method, as well as onboard storage with SD card slot (up to 256GB). Stable Operation and Endurance Reduces lens wear and tear by seamlessly switching between the long lens and short lens, so the camera is less likely to fail and tremble, even while working in complex outdoors. No More Noise from Zooming Achieves complete noiseless zoom since no extra mechanical moving components is needed. Clarity and Colours, All in One Monitor 24-hour clear and colourful details even in pitch dark night. VIGI Full-Colour camera provides maximum 4MP resolutions and ensures colourful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights. Powerful Pan Tilt Cover every corner flexibly with VIGI’s Pan Tilt camera. Customized patrol routes provide more intelligent and quick options to monitor key areas (up to 8 points for each route). Human & Vehicle Classification Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications. Automatic Tracking Continues following specified moving persons or vehicles with Pan Tilt cameras intelligently analyzing the image. Track the path efficiently when there should be little movement in the area. Smart Detection for Efficient Monitoring By setting the detection rules in advance, VIGI AI-powered cameras can accurately capture various abnormal events. This will greatly reduce false alarms and cover your specified monitoring needs in different scenarios. Active Defense Warn potential intruders instantly with sound and light when abnormal events are detected. Two-Way Audio With voice intercom support, carry two-way conversations while watching your feed from anywhere. PoE & IP66 Outdoor PoE connection makes your wiring remarkably easy. Reliable IP66 enables stable outdoor performance. Smart Video Coding by H.265+ Compresses the video size without sacrificing video quality, easing the network load and saving disk space. Flexible Storage Local storage is available for each method, as well as onbsoard storage with an SD card slot (up to 256 GB). Remote Management Take full control over your security anytime and anywhere on the VIGI app or client. Live Views and Real-Time Alerts Easily check your business security via 24/7 live views. Get notifications as soon as the cameras detect something abnormal. Easy & Smart Playback Quickly review and locate certain video clips by event, vehicle, person, time, and more. This will greatly improve event backtracking efficiency and reduce labor costs. Customized Monitoring Patterns Based on your monitoring needs, you can freely preset motion zones, adjust the rotation angle, set zoom in & out, customize patrol routes, control patrol routes, and more. Four-Way Management Flexibly manage your cameras via the web UI, NVR UI, VIGI app, and VIGI Security Manger for ease and convenience.
