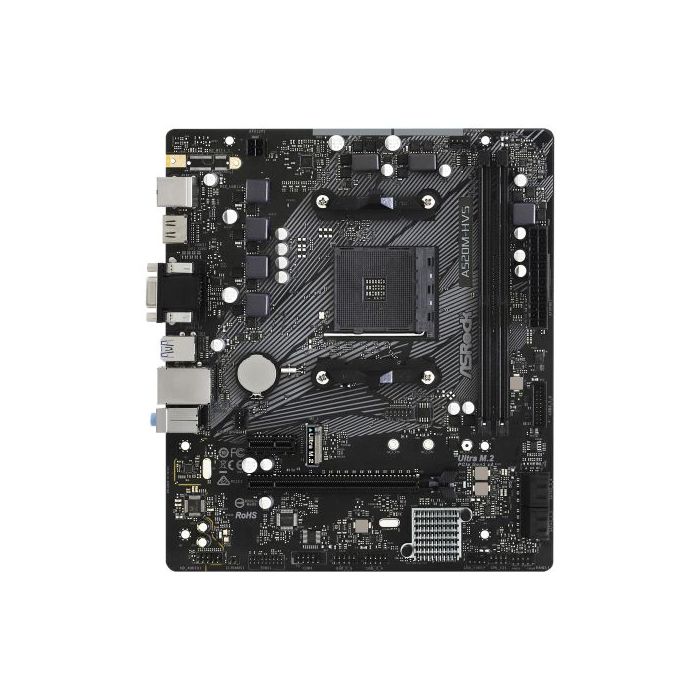

Asrock A520M-HVS, AMD A520, AM4, Micro ATX, 2 DDR4, VGA, HDMI, M.2
£53.99
incl. VAT
+ Free Shipping
Out of stock
SKU
SPTECH-ASMBA520MHVS
Asrock A520M-HVS, AMD A520, AM4, Micro ATX, 2 DDR4, VGA, HDMI, M.2
- Motherboard Type: Desktop
- Form Factor: Micro ATX
- Socket: AMD AM4
- Chipset: AMD A520
- #Hide#DDR Type: DDR4
- CPU Support: Click here for CPU support
*Note: not compatible with Ryzen 5 3400G & Ryzen 3 3200G CPUs - RAM Technology: DDR4 (Dual Channel)
- RAM Slots: 2 x DIMM
- RAM Speeds: 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 MHz
- Maximum Memory: 64GB
- Graphics: Integrated Graphics Processor*
Graphics specifications may vary between CPU types - Graphics Ports: 1 x VGA
1 x HDMI - Multi-GPU Support: -
- PCI/PCI Express: 1 x PCIe 3.0 x16 Slot (PCIE2: x16 mode)
1 x PCIe 3.0 x1 - Storage: 4 x SATA III
1 x M.2 (2242/2260/2280) - SATA & PCIe - RAID: "RAID 0, 1, 10"
- Wireless: -
- LAN: GB LAN
- Audio: 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
- USB Ports Supported: "6 x USB 3.2 Gen1 (4 at back, 2 at mid-board)
6 x USB 2.0 (2 at back, 4 at mid-board)" - Back Panel I/O Ports: 1 x PS/2 Mouse/Keyboard
1 x D-Sub
1 x HDMI
2 x USB 2.0
4 x USB 3.2 Gen1
1 x RJ-45 LAN
HD Audio Jacks - Internal I/O Connectors: 1 x SPI TPM
1 x COM Port
1 x Chassis Intrusion and Speaker
1 x CPU Fan
2 x Chassis Fan
1 x 24 pin ATX
1 x 4 pin 12V
1 x Front Audio
2 x USB 2.0
1 x USB 3.2 Gen1 - Accessories: 2 x SATA Data Cables
1 x Screw for M.2 Socket - Additional Features: See Overview
- Package Type: Retail
- Package Weight: 0.7920 kg
- Warranty: 3 Year Replacement Warranty
- #Hide#M.2 Slot(s): Yes (M.2)
- #Hide#No. LAN Ports: 1 x LAN
- #Hide#Max LAN Speed: GB LAN
| Specifications |
Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3) The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules. HDMI 4k @60Hz Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry. Dual Graphics Outputs Complete with two types of most used connectors! Packed with a D-Sub + HDMI combo, you have more graphics output options now. Premium 50A Power Choke Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. High Density Glass Fabric PCB High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity. Sapphire Black PCB Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch. Full Spike Protection Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes. Live Update & APP Shop ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
|
|---|
