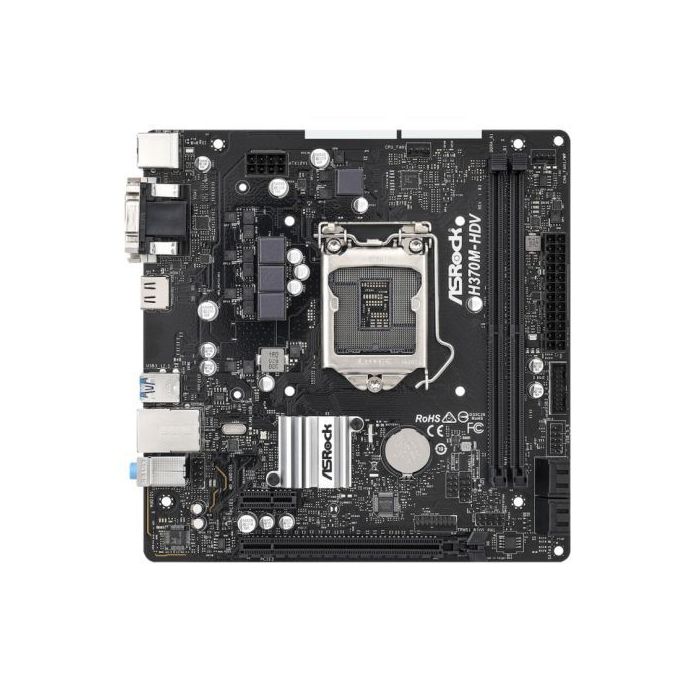

Asrock H370M-HDV, Intel H370, 1151, Micro ATX, 2 DDR4, VGA, DVI, HDMI
£62.99
incl. VAT
+ Free Shipping
Out of stock
SKU
SPTECH-ASMBH370M-HDV
Asrock H370M-HDV, Intel H370, 1151, Micro ATX, 2 DDR4, VGA, DVI, HDMI
- Motherboard Type: Desktop
- Form Factor: Micro ATX
- Socket: Intel 1151 - Coffee Lake
- Chipset: Intel H370
- #Hide#DDR Type: DDR4
- CPU Support: Click here for CPU support
- RAM Technology: DDR4 (Dual Channel)
- RAM Slots: 2 x DIMM
- RAM Speeds: 2666 / 2400 / 2133 MHz
- Maximum Memory: 64GB
- Graphics: Supports Intel HD Graphics
- Graphics Ports: 1 x VGA
1 x DVI-D
1 x HDMI - Multi-GPU Support: -
- PCI/PCI Express: 1 x PCIe 3.0 x16
1 x PCIe 3.0 x1 - Storage: 4 x SATA III
- RAID: "RAID 0, 1, 5, 10"
- Wireless: -
- LAN: GB LAN
- Audio: 7.1 CH HD Audio (Realtek 887/897 Audio Codec)
- USB Ports Supported: "4 x USB 3.2 Gen1 (2 at back, 2 at mid-board)
6 x USB 2.0 (4 at back, 2 at mid-board)" - Back Panel I/O Ports: 1 x PS/2 Mouse/Keyboard
1 x D-Sub
1 x DVI-D
1 x HDMI
4 x USB 2.0
2 x USB 3.2 Gen1
1 x RJ-45 LAN
HD Audio Jacks - Internal I/O Connectors: 1 x TPM
1 x Chassis Intrusion and Speaker
1 x CPU Fan
1 x Chassis/Water Pump Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x Front Audio
1 x USB 2.0
1 x USB 3.2 Gen1 - Accessories: "Quick Installation Guide, Support CD, I/O Shield
2 x SATA Data Cables" - Additional Features: See Overview
- Package Type: Retail
- Package Weight: 0.6900 kg
- Warranty: 3 Year Replacement Warranty
- #Hide#No. LAN Ports: 1 x LAN
- #Hide#Max LAN Speed: GB LAN
| Specifications |
4 x USB3.2 Gen1 Delivering data transfer rates up to 10X faster than USB 2.0 with optimized power efficiency. USB 3.2 Gen1 technology advances the data transfer rate up to 5Gb/s. ASRock provides 4 x USB 3.2 Gen1 ports onboard allows you to have a stunning data transfer experience. 3 Graphics Outputs Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution. HEVC 10-bit Decoding/Encoding Supports HEVC 10-bit Decoding/Encoding to provide substantially improved video quality and higher bit depth video experience. Super Alloy Motherboard High Density Glass Fabric PCB High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity. Sapphire Black PCB Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch. Water Pump Header This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise. Triple Monitor Graphics, graphics and even more graphics! You've demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors and use them simultaneously without installing another graphics card. Live Update & APP Shop ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop. |
|---|
