Asrock B560M-HDV R3.0, Intel B560, 1200, Micro ATX, 2 DDR4, VGA, DVI, HDMI

Name: Asrock B560M-HDV R3.0, Intel B560, 1200, Micro ATX, 2 DDR4, VGA, DVI, HDMI
Brand: Asrock B560M-HDV R3.0, Intel B560, 1200, Micro ATX, 2 DDR4, VGA, DVI, HDMI
SKU: SPTECH-ASMBB560MHDVR3
Price: 63.99 GBP
Availability: OutOfStock

Be the first to review this product

£63.99 incl. VAT + Free Shipping

Out of stock

SKU

SPTECH-ASMBB560MHDVR3

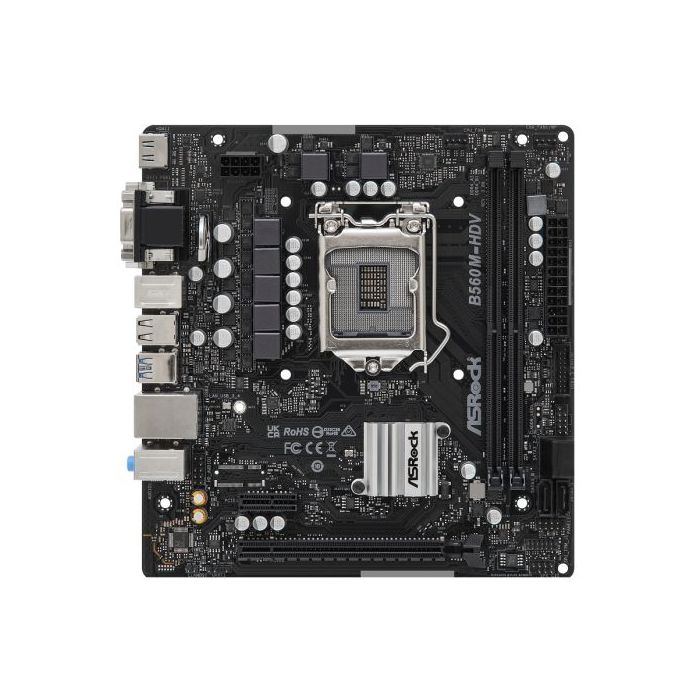

Asrock B560M-HDV R3.0, Intel B560, 1200, Micro ATX, 2 DDR4, VGA, DVI, HDMI

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Motherboard Type: Desktop
Form Factor: Micro ATX
Socket: Intel 1200 - Rocket Lake
Chipset: Intel B560
#Hide#DDR Type: DDR4
CPU Support: Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors (LGA1200)
RAM Technology: DDR4 (Dual Channel)
RAM Slots: 2 x DIMM
RAM Speeds: 11th Gen CPUs: up to 4000+(OC)
10th Gen CPUs: up to 3600+(OC)
Maximum Memory: 64GB
Graphics: Integrated Graphics*

*Graphics specifications may vary between CPU types
Graphics Ports: 1 x VGA
1 x DVI-D
1 x HDMI
PCI/PCI Express: 1 x PCIe 4.0 x16
1 x PCIe 3.0 x1
Storage: 4 x SATA III
No M.2 Slots
Wireless: -
LAN: GB LAN
Audio: 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
USB Ports Supported: Rear:
2 x USB 3.2 Gen1 Type-A
4 x USB 2.0

Front:
2 x USB 3.2 Gen1 Type-A
2 x USB 2.0
Back Panel I/O Ports: 1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x D-Sub
1 x DVI-D
1 x HDMI
2 x USB 3.2 Gen1
4 x USB 2.0
1 x RJ-45 LAN
HD Audio Jacks
Internal I/O Connectors: 1 x SPI TPM
1 x Chassis Intrusion and Speaker
1 x CPU Fan
1 x Chassis/Water Pump Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x Front Panel Audio
1 x USB 2.0
1 x USB 3.2 Gen1
Accessories: "User Manual, Support CD, I/O Shield
2 x SATA Data Cables"
Additional Features: See Overview
Package Type: Retail
Package Weight: 0.7000 kg
Warranty: 2 Year Replacement Warranty
#Hide#No. LAN Ports: 1 x LAN
#Hide#Max LAN Speed: GB LAN

More Information

More Information
Specifications	B560M-HDV R3.0 Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors Supports DDR4 4000+ MHz (OC) 1 x PCIe 4.0 x16*, 1 x PCIe 3.0 x1 Graphics Output Options: HDMI, DVI-D, D-Sub 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec) 4 SATA3 4 x USB 3.2 Gen1 (2 Rear, 2 Front) Realtek Gigabit LAN Supports ASRock Auto Driver Installer Premium 50A Power Choke ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. Clever Access Memory Conventional PC systems processor can only access a fraction of graphics memory and limits system performance. With Clever Access Memory, the data channel gets expanded to harness the full potential of GPU memory, removes the bottleneck and increase performance. Base Frequency Boost (BFB) Technology Who ever said that only K series CPUs and the Z-family platform are capable of being performed with maximum power. Via ASRock BFB (Base Frequency Boost) Technology, users may install their non K series CPUs to ASRock’s selected 500 series motherboards and enjoy the base frequency boost with the hidden power of processors immediately. While ASRock BFB breathes life into non K series CPUs, the boost frequency currently still depends on the cooling system applied on your rig. 3 Graphics Outputs Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution. HDMI 4k @60Hz Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry. Matte Black PCB A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end motherboards. High Density Glass Fabric PCB High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity. Auto Driver Installer No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD. step1: Install Auto Driver Installer step2: Update drivers needed step3: Done! Water Pump Header This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise. Full Spike Protection Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes. Live Update & APP Shop ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
