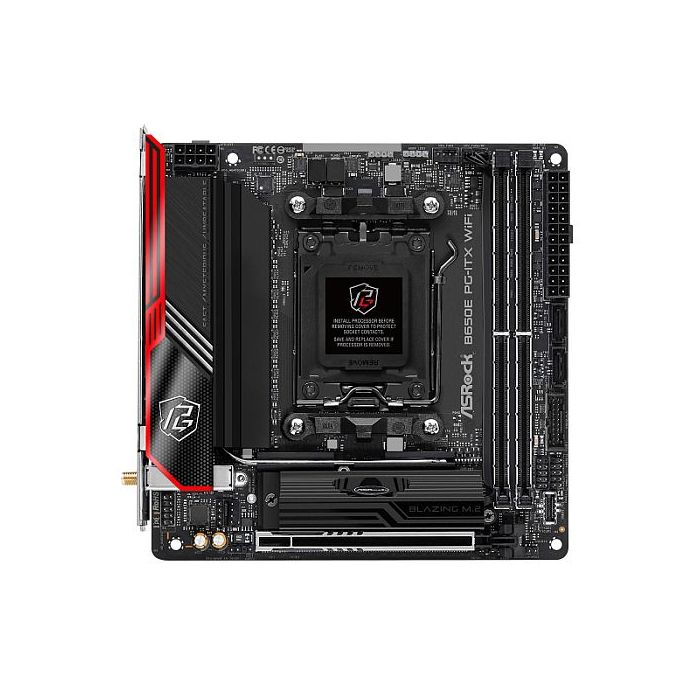

Name: Asrock B650E PG-ITX WIFI, AMD B650, AM5, Mini ITX, 2 DDR5, HDMI, eDP, Wi-Fi 6E, 2.5G LAN, PCIe5, 2x M.2
Brand: Asrock B650E PG-ITX WIFI, AMD B650, AM5, Mini ITX, 2 DDR5, HDMI, eDP, Wi-Fi 6E, 2.5G LAN, PCIe5, 2x M.2
SKU: SPTECH-ASMBB650EPGMITXWIFI
Price: 214.99 GBP
Availability: OutOfStock

Details

Motherboard Type: Desktop
Form Factor: Mini ITX
Socket: AMD AM5
Chipset: AMD B650
#Hide#DDR Type: DDR5
CPU Support: Click here for CPU support
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 2 x DIMM
RAM Speeds: Up to 6400+(OC)
Maximum Memory: 64GB
Graphics: Integrated Graphics*

*Graphics specifications may vary between CPU types
Graphics Ports: 1 x HDMI
1 x eDP 1.4
PCI/PCI Express: 1 x PCIe 5.0 x16 (supports x16 mode)
Storage: 2 x SATA III
1 x M.2 (2280) - PCIe
1 x M.2 (2280) - PCIe
RAID: "Supports RAID 0 and RAID 1 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices"
Wireless: 802.11ax Wi-Fi 6E Module
Supports IEEE 802.11a/b/g/n/ac/ax
Supports Dual-Band 2x2 160MHz with ext 6GHz band support
2 antennas - 2 (Transmit) x 2 (Receive) diversity tech
Supports Bluetooth + High speed class II
Supports MU-MIMO
Supports Killer LAN Software
Supports Killer DoubleShot Pro
LAN: 2.5GB LAN
Audio: 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
USB Ports Supported: "1 x USB 3.2 Gen2 Type-C (at back)
3 x USB 3.2 Gen2 Type-A (at back)*
2 x USB 3.2 Gen1 (mid-board)
6 x USB 2.0 (4 at back, 2 at mid-board)
1 x Front Panel Type-C USB 3.2 Gen2x2 Header

*USB32_23 are Lightning Gaming Ports"
Back Panel I/O Ports: 2 x Antenna
1 x HDMI
1 x Optical SPDIF Out
3 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen2 Type-C
4 x USB 2.0
1 x RJ-45 LAN
1 x Line Out Jack
1 x Microphone Input Jack
Internal I/O Connectors: 1 x eDP Signal
2 x Addressable LED
1 x CPU Fan
1 x CPU/Water Pump Fan (M.2 Fan)
1 x Chassis/Water Pump Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x Front Panel Audio
1 x USB 2.0
1 x USB 3.2 Gen1
1 x Front Panel Type-C USB 3.2 Gen2x2
Accessories: 1 x User Manual
2 x SATA Data Cables
1 x ASRock WiFi 2.4/5/6 GHz Antenna
1 x Screw for M.2 Socket
Additional Features: See Overview
Package Type: Retail
Package Weight: 1.2000 kg
Warranty: 3 Year Replacement Warranty
#Hide#M.2 Slot(s): Yes (M.2)
#Hide#No. LAN Ports: 1 x LAN
#Hide#Max LAN Speed: 2.5GB LAN
#Hide#Wi-Fi: Yes (Wi-Fi)

More Information

More Information
Specifications	B650E PG-ITX WiFi Supports AMD Ryzen™ 7000 Series Processors 10+2+1 Phase Power Design, SPS 2 x DDR5 DIMMs, supports up to 6200+(OC) 1 PCIe 5.0 x16 Graphics Output Options: 1 HDMI, eDP 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Nahimic Audio 1 Blazing M.2 (PCIe Gen5x4), 1 Hyper M.2 (PCIe Gen4x4), 2 SATA3 1 USB 3.2 Gen2x2 Type-C (Front), 1 USB 3.2 Gen2 Type-C (Rear), 3 USB 3.2 Gen2 Type-A (Rear), 2 USB 3.2 Gen1 (Front), 6 USB 2.0 (4 Rear, 2 Front) Killer 2.5G LAN Killer 802.11ax Wi-Fi 6E + Bluetooth Optimized VRM Design SPS (Smart Power Stage) - Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability. 10+2+1 Power Phase Design - Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers. Premium PCB Design Server Grade Low Loss PCB - The server grade low loss PCB improves signal integrity, allowing motherboard to support PCIe 5.0 for both graphics card and M.2 SSD, it also improves memory OC potential to deliver the most extreme memory performance. 10 Layer PCB - The 10 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, ensures a reliable and long-lasting system while delivering ultimate performance without any compromise. Extreme Overclocking Performance DDR5 EXPO & XMP Support - Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This top-of-the-line motherboard is built with 10-Layer PCB design, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance up to 6400MHz and beyond by enabling the pre-tested profiles. Make sure the memory modules are AMD EXPO™/ Intel® XMP capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all. Blazing OC Tuner - The Blazing OC Tuner allows AM5 CPU to switch between OC mode and PBO(Precision Boost Overdrive) mode when the CPU current hits threshold. Anything above current threshold will engage manual OC mode; if below current threshold then will engage Precision Boost Overdrive mode. This idea is to combine overclocking on all cores and automatic boost on a single core to get the best performance out of your CPU. There is no need to enter BIOS to setup up, you can modify all the settings on time under OS. DDR5 Memory with Protection Circuit Due to the unique electrical architecture of DDR5 DIMM, there’s a high risk of damaging the memory module if AC power isn’t disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module. PCIe 5.0 + Surface-Mount Tech Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard. The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards. High Speed M.2 Solution PCIe Gen5 Blazing M.2 - The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128GB/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs. M.2 Fan-Heatsink - To unleash the full potential of the latest PCIe Gen5 x4 M.2 SSD, a M.2 Fan Sink was specially designed for ASRock motherboard. It is able to deliver maximum cooling performance for stability and maintaining top performance. Anti-Drop Screw - Tired of dropping screws or screws missing inside chassis? The enhanced M.2 heatsink with anti-drop screw design that make sure installation process more easily. KiLLER Networking KiLLER E3100 + AX1675 - The Killer Ethernet controller is designed specically for competitive gamers and performance-hungry users, this motherboard comes with both Killer E3100 2.5G Ethernet & WiFi 6E solution, the enhanced detection and prioritization engine provides the ultimate networking experience for gaming and multimedia applications. KiLLER Doubleshot Pro - Killer DoubleShot Pro allows the use of both the Killer Wireless and Killer Ethernet interfaces work at the same time which will give the end user max throughput as high as 4.9 Gbps, it automatically utilizes the fastest network connection for high priority traffic, this ensures the highest priority traffic will always be put on the fastest and most reliable link. Nahimic Audio Audio That Matters - Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. Enhance Communication Quality - The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue Sound Tracker - The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game. Works on any devices - Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience. Lightning Gaming Ports Aimed for die hard gamers and enthusiasts! Lightning Gaming Ports are sourced from two different controller interfaces that assist gamers in connecting the high speed mice/keyboard with the lower jitter and latency! Polychrome RGB This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects
