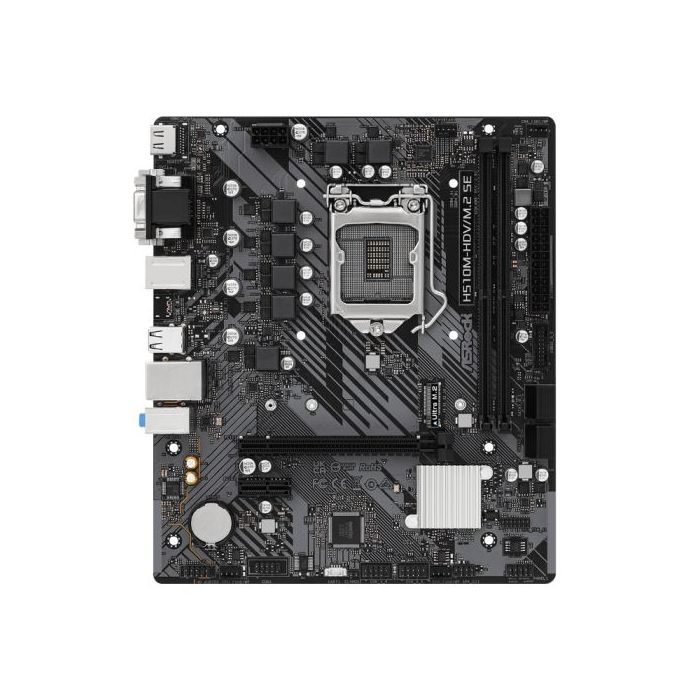

Asrock H510M-HDV/M.2 SE, Intel H510, 1200, Micro ATX, 2 DDR4, VGA, DVI, HDMI, M.2

Name: Asrock H510M-HDV/M.2 SE, Intel H510, 1200, Micro ATX, 2 DDR4, VGA, DVI, HDMI, M.2
Brand: Asrock H510M-HDV/M.2 SE, Intel H510, 1200, Micro ATX, 2 DDR4, VGA, DVI, HDMI, M.2
SKU: SPTECH-ASMBH510M-HDVM.2SE
Price: 59.99 GBP
Availability: OutOfStock

Be the first to review this product

£59.99 incl. VAT + Free Shipping

Out of stock

SKU

SPTECH-ASMBH510M-HDVM.2SE

Asrock H510M-HDV/M.2 SE, Intel H510, 1200, Micro ATX, 2 DDR4, VGA, DVI, HDMI, M.2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Motherboard Type: Desktop
Form Factor: Micro ATX
Socket: Intel 1200 - Rocket Lake
Chipset: Intel H510
#Hide#DDR Type: DDR4
CPU Support: Click here for CPU support
RAM Technology: "DDR4 Dual Channel
Supports non-ECC, un-buffered memory
Supports ECC UDIMM modules (operate in non-ECC mode)"
RAM Slots: 2 x DIMM
RAM Speeds: Up to 2933 MHz
Maximum Memory: 64GB
Graphics: Integrated Graphics*

*Graphics specifications may vary between CPU types
Graphics Ports: 1 x VGA
1 x DVI-D
1 x HDMI
PCI/PCI Express: 1 x PCIe 4.0 x16
1 x PCIe 3.0 x1
Storage: 4 x SATA III
1 x M.2 (2260/2280) - SATA & PCIe 3.0 x4
RAID: "Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices"
Wireless: -
LAN: GB LAN
Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
USB Ports Supported: Rear:
4 x USB 3.2 Gen1 Type-A
2 x USB 2.0

Front:
2 x USB 3.2 Gen1 Type-A
4 x USB 2.0
Back Panel I/O Ports: 1 x PS/2 Mouse/Keyboard
1 x D-Sub
1 x DVI-D
1 x HDMI
2 x USB 2.0
4 x USB 3.2 Gen1
1 x RJ-45 LAN
HD Audio Jacks
Internal I/O Connectors: 1 x COM Port
1 x SPI TPM
1 x Chassis Intrusion and Speaker
1 x CPU Fan
1 x CPU/Water Pump Fan
2 x Chassis/Water Pump Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x Front Panel Audio
2 x USB 2.0
1 x USB 3.2 Gen1
Accessories: 1 x User Manual
1 x I/O Shield
2 x SATA Data Cables
1 x Screw for M.2 Socket
Additional Features: See Overview
Package Type: Retail
Package Weight: To be confirmed
Warranty: 3 Year Replacement Warranty
#Hide#M.2 Slot(s): Yes (M.2)
#Hide#No. LAN Ports: 1 x LAN
#Hide#Max LAN Speed: GB LAN

More Information

More Information
Specifications	H510M-HDV/M.2 SE Supports 10th Gen & 11th Gen Intel® Core™ Processors (LGA1200) 4+1+1 Power Phase Design Supports DDR4 2933 MHz* 1 PCIe 4.0 x16, 1 PCIe 3.0 x1 Graphics Output Options: HDMI, DVI-D, D-Sub Realtek ALC897 7.1 CH HD Audio Codec 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3) 6 USB 3.2 Gen1 (2 Front, 4 Rear) Realtek Gigabit LAN Supports ASRock Auto Driver Installer Ultra M.2 32 Gb/s (PCIe Gen3 x4 & SATA3) The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSDs. M.2 (KEY E) For WiFi Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot. *Wi-Fi module is not included. Premium 50A Power Choke Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. Sapphire Black PCB Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch. High Density Glass Fabric PCB High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity. Auto Driver Installer No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD. step1: Install Auto Driver Installer step2: Update drivers needed step3: Done! 3 Graphics Outputs Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution. Water Pump Header This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise. Full Spike Protection Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes. Live Update & APP Shop ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop
