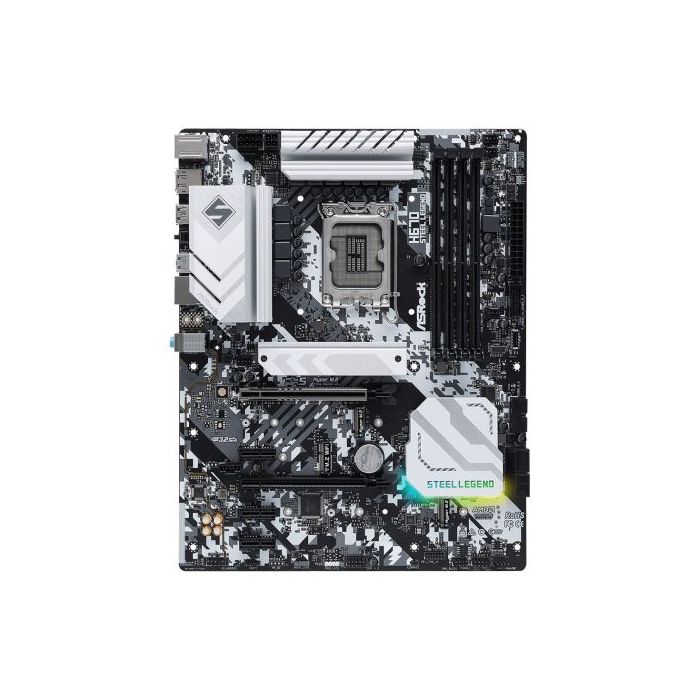

Steel Legend represents the philosophical state of rock-solid durability and irresistible aesthetics. Built around most demanding specs and features, the Steel Legend series aims at daily users and mainstream enthusiasts! Providing a strong array of materials/components to ensure a stable and reliable performance.
- Supports 12th Gen Intel® Core™ Processors (LGA1700)
- 9 Phase Dr.MOS Power Design
- Supports DDR4 5000MHz (OC)
- 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 3 PCIe 3.0 x1
- 1 M.2 Key-E for WiFi
- Graphics Output Options: HDMI, DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 4 SATA3
- 2 Hyper M.2 (PCIe Gen4 x4)
- 1 Hyper M.2 (PCIe Gen4 x4 & SATA3)
- 1 Front USB 3.2 Gen2x2 Type-C
- 2 USB 3.2 Gen2 (Rear Type A+C)
- 6 USB 3.2 Gen1 (2 Rear, 4 Front)
- Dragon 2.5G LAN
Optimized VRM Design
Dr. MOS Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance. 9 Power Phase Design Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
6 Layer PCB The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!
PCIe 5.0 + Surface-Mount Tech
Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard. The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.
Nahimic Audio Audio That Matters Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
Enhance Communication Quality The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue. - Static Noise Suppression
- Echo Cancellation
- Lateral Sound Cancellation
- Voice Stabilizer
Ultimate Gaming Experience
Sound Tracker The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360 on a radar for a full immersion during the game. Works on any devices! Enjoy the vibrant and high-quality Surround Sound on all your favourite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favourite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience. Polychrome RGB In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects. High Speed M.2 Solution This motherboard is capable of accommodating multiple PCI Express 4.0 M.2 SSDs, which is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience. Dragon 2.5 Gb/s LAN The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you'll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups. Base Frequency Boost (BFB) Technology BFB Technology allow the use of increasing TDP to enjoy the base frequency boost with the hidden power of processors with users' non K series CPUs and ASRock's selected 600 series motherboards While ASRock BFB breathes life into non K series CPUs, the boost frequency currently still depends on the cooling system applied on your rig. Dual USB 3.2 Gen2 (Type-A + Type-C) This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates. BIOS Flashback Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required. M.2 (KEY E) For WiFi Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot. |
