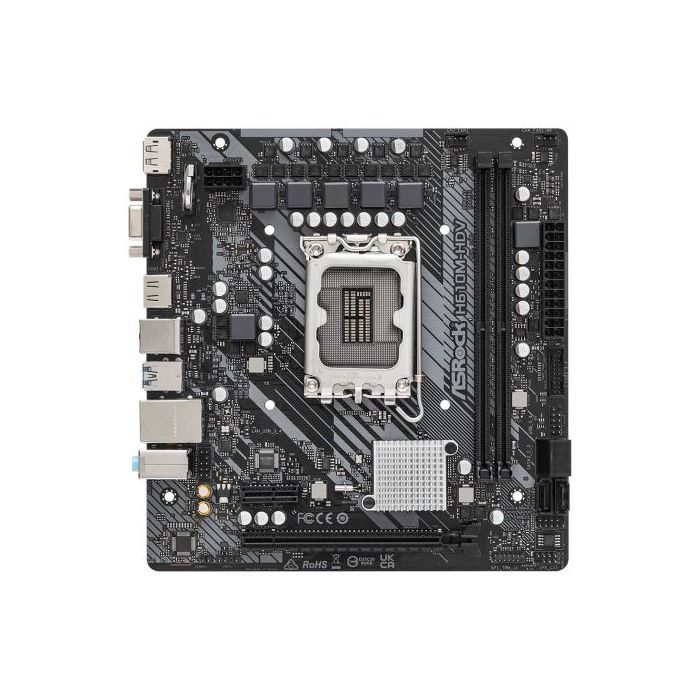

Asrock H610M-HDV, Intel H610, 1700, Micro ATX, 2 DDR4, VGA, HDMI, DP, PCIe4

Name: Asrock H610M-HDV, Intel H610, 1700, Micro ATX, 2 DDR4, VGA, HDMI, DP, PCIe4
Brand: Asrock H610M-HDV, Intel H610, 1700, Micro ATX, 2 DDR4, VGA, HDMI, DP, PCIe4
SKU: SPTECH-ASMBH610MHDV
Price: 71.99 GBP
Availability: OutOfStock

Be the first to review this product

£71.99 incl. VAT + Free Shipping

Out of stock

SKU

SPTECH-ASMBH610MHDV

Asrock H610M-HDV, Intel H610, 1700, Micro ATX, 2 DDR4, VGA, HDMI, DP, PCIe4

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Motherboard Type: Desktop
Form Factor: Micro ATX
Socket: Intel 1700
Chipset: Intel H610
#Hide#DDR Type: DDR4
CPU Support: Click here for CPU support
RAM Technology: DDR4 (Dual Channel)
RAM Slots: 2 x DIMM
RAM Speeds: Up to 3200 MHz
Maximum Memory: 64GB
Graphics: Integrated Graphics*

*Graphics specifications may vary between CPU types
Graphics Ports: 1 x VGA
1 x HDMI
1 x DisplayPort
PCI/PCI Express: 1 x PCIe 4.0 x16
1 x PCIe 3.0 3x1
Storage: 4 x SATA III
Wireless: -
LAN: GB LAN
Audio: 7.1 CH HD Audio (Realtek ALC897/887 Audio Codec)
USB Ports Supported: "4 x USB 3.2 Gen1 Type-A (2 at back, 2 at mid-board)
6 x USB 2.0 (4 at back, 2 at mid-board)"
Back Panel I/O Ports: 1 x PS/2 Mouse/Keyboard
1 x D-Sub
1 x HDMI
1 x DisplayPort 1.4
2 x USB 3.2 Gen1
4 x USB 2.0
1 x RJ-45 LAN
HD Audio Jacks
Internal I/O Connectors: 1 x SPI TPM
1 x Chassis Intrusion and Speaker
1 x CPU Fan
1 x Chassis/Water Pump Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x Front Panel Audio
1 x USB 2.0
1 x USB 3.2 Gen1
Accessories: "Quick Installation Guide, Support CD, I/O Shield
2 x SATA Data Cables"
Additional Features: See Overview
Package Type: Retail
Package Weight: 0.7080 kg
Warranty: 2 Year Replacement Warranty
#Hide#No. LAN Ports: 1 x LAN
#Hide#Max LAN Speed: GB LAN

More Information

More Information
Specifications	H610M-HDV Supports 12th Gen Intel® Core™ Processors (LGA1700) 5 Phase Power Design Supports DDR4 3200MHz 1 PCIe 4.0 x16, 1 PCIe 3.0 x1 Graphics Output Options: HDMI, DisplayPort, D-Sub Realtek ALC887/897 7.1 CH HD Audio Codec 4 SATA3 4 USB 3.2 Gen1 (2 Rear, 2 Front) 6 USB 2.0 (4 Rear, 2 Front) Realtek Gigabit LAN 3 Graphics Outputs Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo. HDMI 4k @60Hz Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry. Premium Power Choke Compared to traditional chokes, ASRock’s premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. Sapphire Black PCB Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch. High Density Glass Fabric PCB High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity. Full Spike Protection Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
